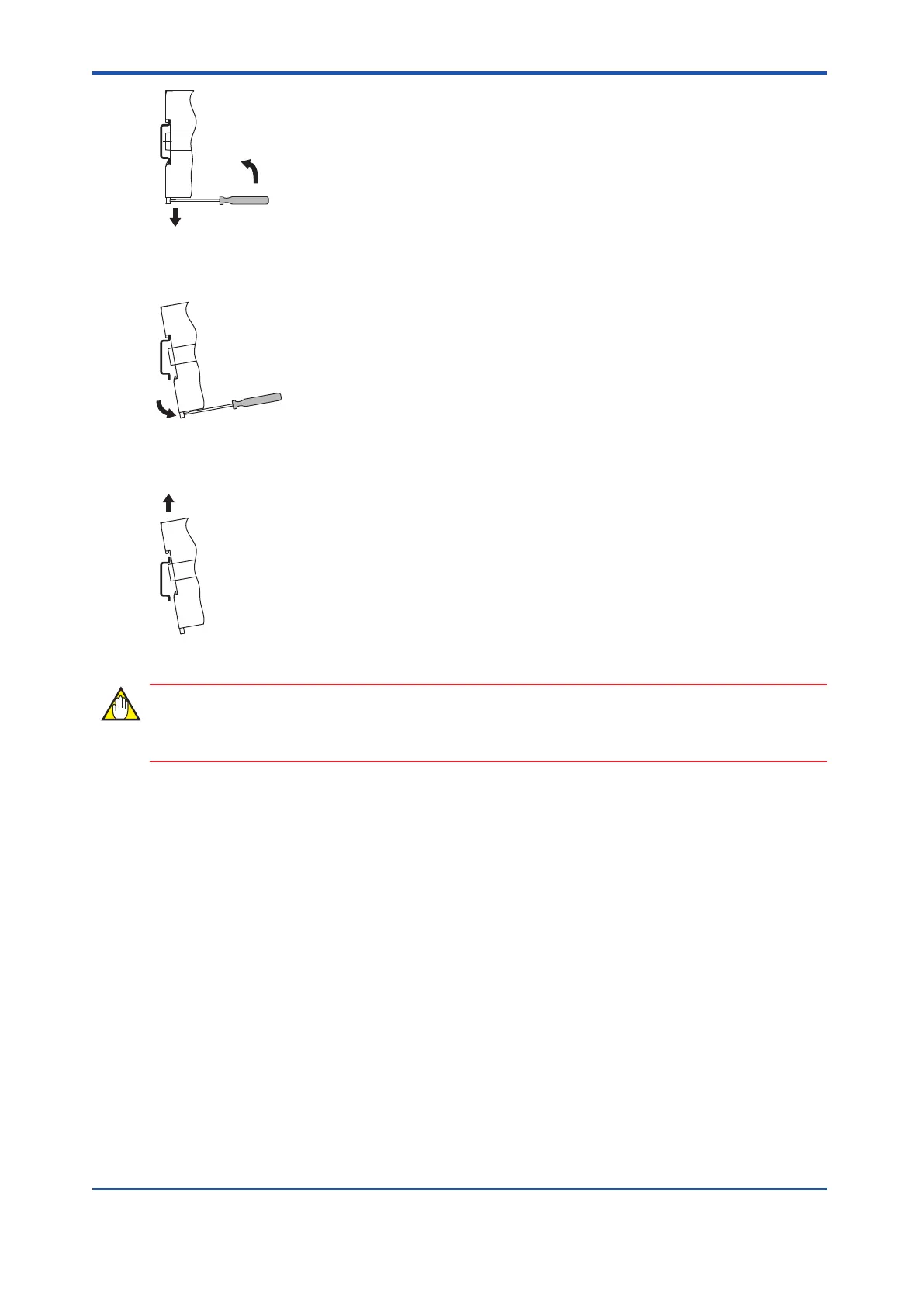

Figure 2.2.2-4 Uninstalling from a DIN Rail (1/3)
2. The end with the latches becomes loose.
Figure 2.2.2-5 Uninstalling from a DIN Rail (2/3)
3.
Remove the terminal board from the end without latches.
Figure 2.2.2-6 Uninstalling from a DIN Rail (3/3)
Do not forcefully rotate the terminal board when removing it.
l
Fasteners
When installing onto a DIN rail, you can use fasteners to hold it in place. These fasteners are
not supplied and should be purchased separately
. Mount the terminal board onto the DIN rail
and then secure it in place with the fasteners. To remove the board, take the fasteners off and
then remove the terminal board from the DIN rail.
n
Mounting on a Wall Surface
The following figure shows the screw installation dimensions for a DIN rail mountable terminal
board. Installation screws for the terminal board are not supplied and should be purchased
separately. You need two installation screws. If you are using binding heads, use M4 screws
with a length of at least 10 mm. If you are using screws with washers, use M4 screws with a
length of at least 12 mm. The screw tightening torque is approximately 0.8 N•m.
<2.2 Installing a Terminal Board> 2-8
IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
