IMPORTANT

Note the following points when using optical ESB bus repeater modules.

•

The optical ESB bus repeater master module and the optical ESB bus repeater slave

module both connected to ESB bus1 must be mounted on the odd-numbered slots. The

Optical ESB bus repeater master module and the optical ESB bus repeater slave module

both connected to ESB bus2 must be mounted on the even-numbered slots.

• Be sure to put a dummy cover (SDCV01) on each slot with no module.

SEE

ALSO

For more information about restrictions on optical ESB bus repeater module installation, refer to:

Model SNT10D Unit for Optical Bus Repeater Module (GS 32Q06K11-31E)

Safety Control Unit (SSC60S/SSC60D, SSC50S/SSC50D, SSC10S/SSC10D)

I/O1 I/O2 I/O3 I/O4 I/O5 I/O6

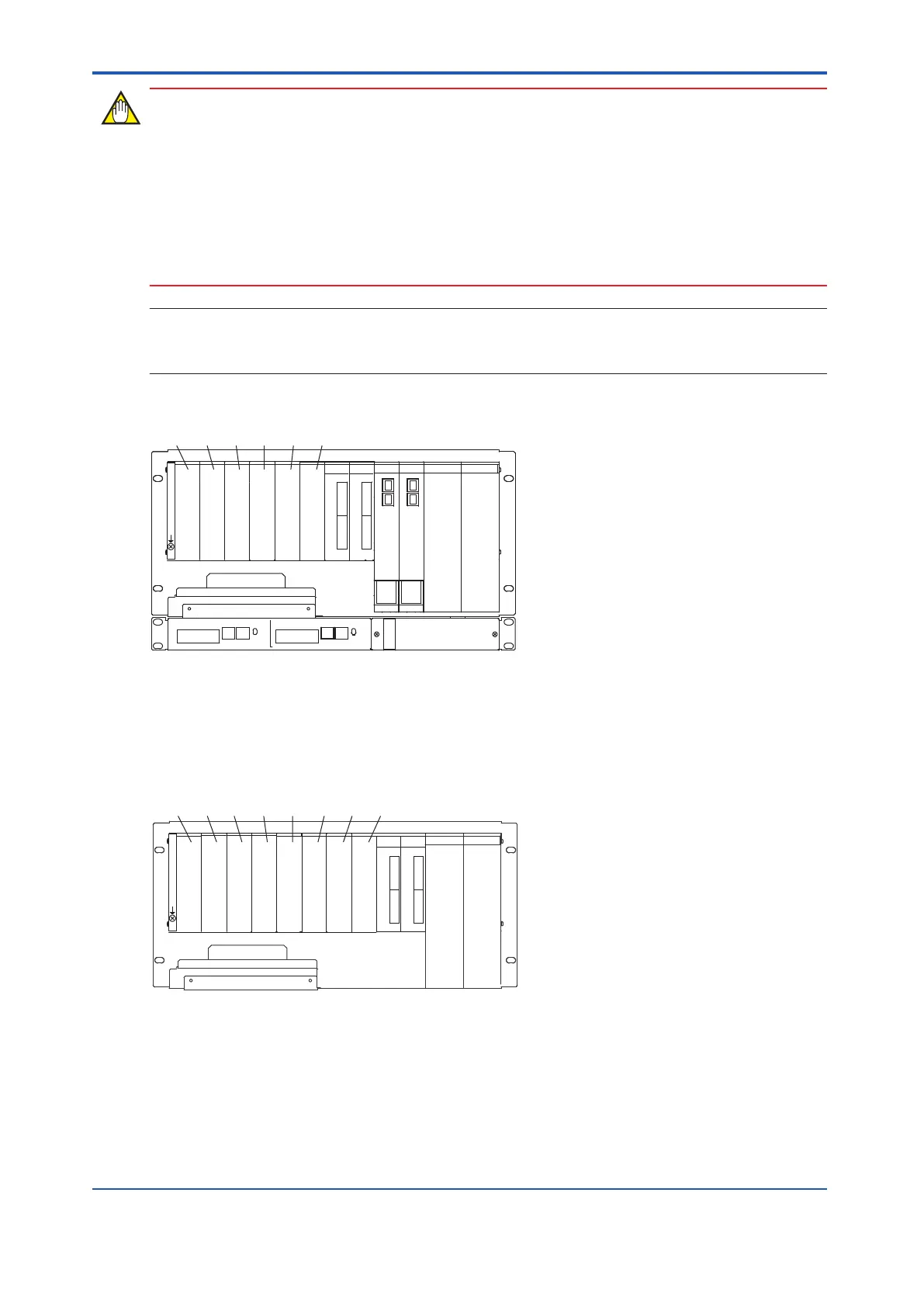

Figure 3.4.2-4 Safety Control Unit (SSC60S/SSC60D, SSC50S/SSC50D, SSC10S/SSC10D)

•

Slots for optical ESB bus repeater modules: Slots I/O1 to I/O6

You can use slots I/O1 to I/O6. Use an odd-number slot and the next even-number slot

together.

Safety Node Unit (SNB10D)

I/O1 I/O2 I/O3 I/O4 I/O5 I/O6 I/O7 I/O8

Figure 3.4.2-5 Safety Node Unit (SNB10D)

•

Slots for optical ESB bus repeater modules: Slots I/O1 to I/O8

You can use slots I/O1 to I/O8. Use an odd-number slot and the next even-number slot

together.

<3.4 Connecting ESB Bus Cable > 3-27

IM 32Q06C10-31E 4th Edition : Jan.30,2015-00
