Basic Operations
1111
IM 01B08B02-01EN
Basic Operations
YS1500/YS1700 Operating
Procedure
Basic Operation
Overview of Display Switching and Operation Keys
The YS1000 has the following three display groups:
(1) Operation Display Group
This group has a LOOP Display which allows operation mode switching during control operation, SV setting, and MV opera-
tion; a TREND Display which displays the trends of PV, SV, and MV; an ALARM Display which displays detailed alarm infor-
mation; a LOOP Display which displays two loops simultaneously (operation is on a loop basis); and a METER Display which
displays PV, SV, and MV on a meter scale using a pointer.
(2) Tuning Display Group
This group has a display for setting and displaying control parameters such as PID, and a display for monitoring input/output
signals.
(3) Engineering Display Group
This group has a display for setting up functions as a controller, a display for setting and displaying various registers and vari-
ous tables, a display for setting input specifications and a password setting display.

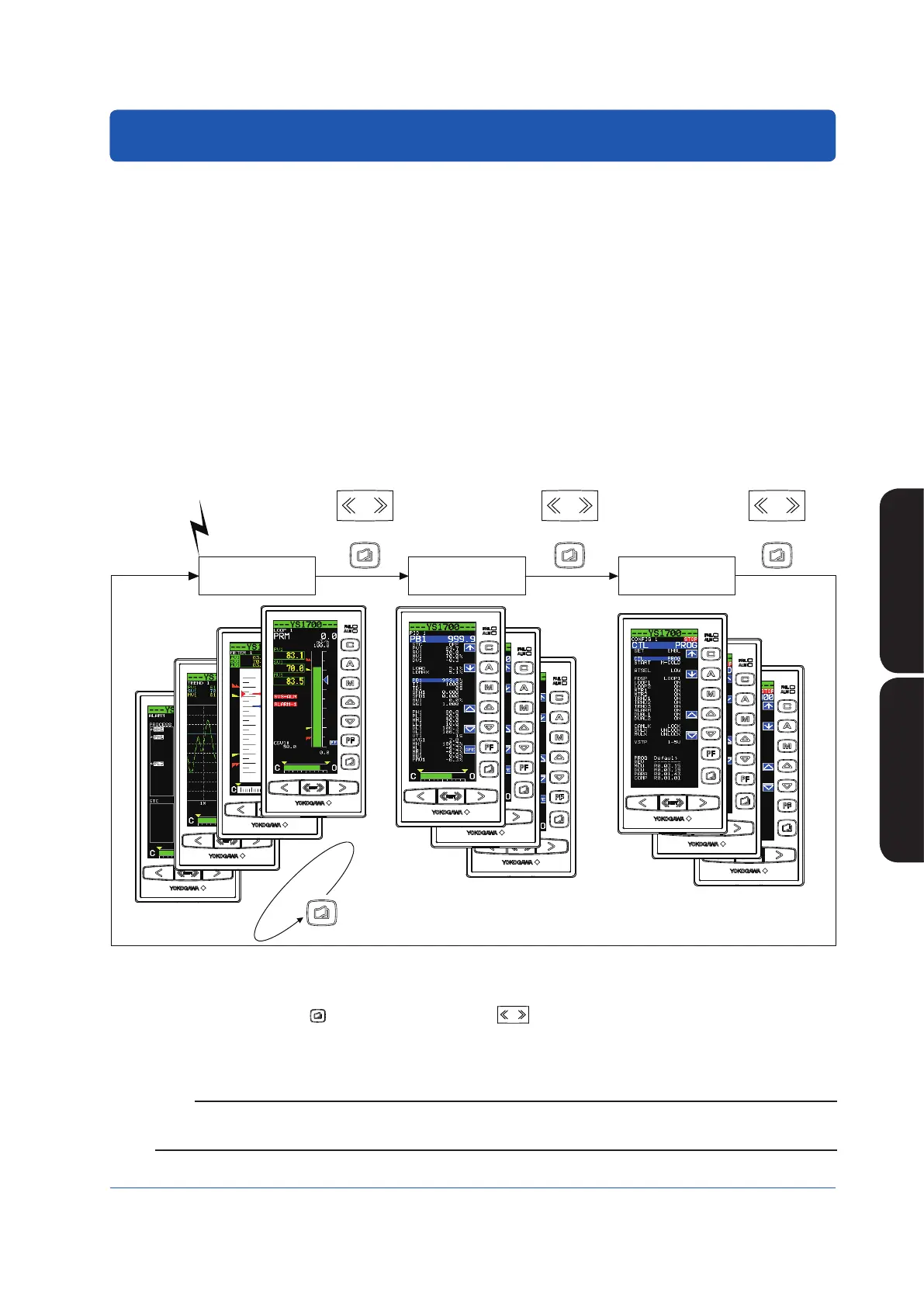

Selecting a Display
The flow of display selecting operations is as follows:
+ + +
Operation Display
group
Tuning Display
group
Engineering Display
group
For operations of the Tuning Display and Engineering Display groups, see
“Operating the Tuning Displays” and “Operating the Engineering Displays .”
SHIFT
SHIFT
SHIFT
C
Figure 4.1
1.
When the instrument’s power is turned ON, the Operation Display appears.
2.
Each time the Page key ( ) is pressed with the SHIFT key (
) held down, the display is switched.
The display changes in the order of Operation Display, Tuning Menu Display, and Engineering Menu Display, after which the
Operation Display reappears.
Note
Operation of the SHIFT key + Page key (a two key keystroke) implies that you should press the Page key with the SHIFT key
held down. Doing so in the opposite order does not switch the display.
To Next Page
