York YMC2 - FIGURE 22 - Skid Options

JOHNSON CONTROLS
33
SECTION 3 - INSTALLATION
FORM 160.84-N1
ISSUE DATE: 11/22/2016
3
A
B
C
D
E
D
*
*
LD12642

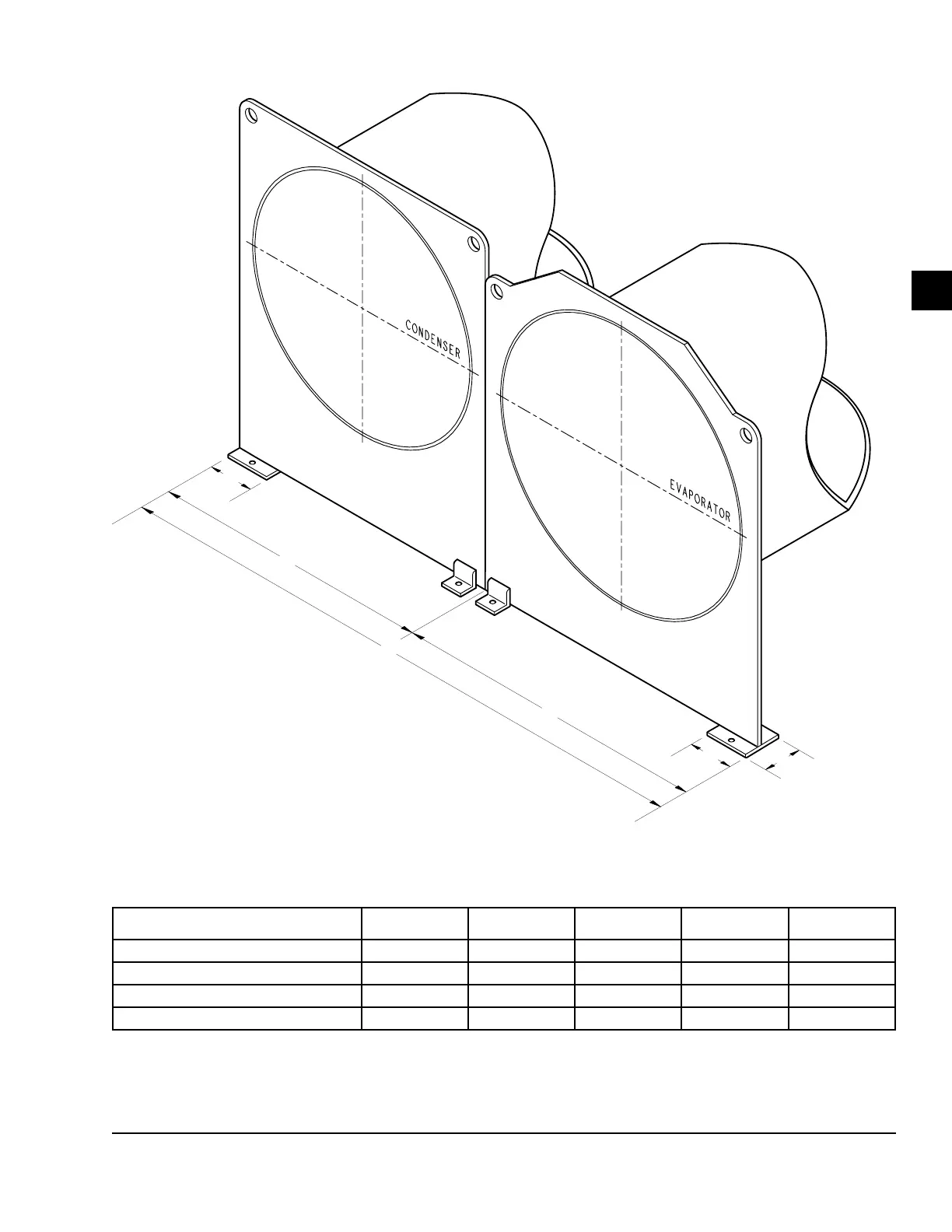

FIGURE 22 - SKID OPTIONS
SHELL LENGTH (FT.) DIM "A" DIM "B" DIM "C" DIM "D" DIM "E"
8 66 32 34 10 8
10 79 40 39 10 8
12 74 35 39 10 8
14 94 46 48 10 8
NOTE: Dimensions are shown in Inches (mm)
* Brackets installed when skidded option is selected for Form 7 and 11.
* Largest Diameter heat exchanger shown for shell length shown.
