York YMC2 - Condenser 150 PSI Marine Water Boxes; FIGURE 55 - Condenser - Marine Water Boxes (1-Pass Nozzle Arrangements); FIGURE 56 - Condenser - Marine Water Boxes (2-Pass Nozzle Arrangements); FIGURE 57 - Condenser - Marine Water Boxes (3-Pass Nozzle Arrangements)

JOHNSON CONTROLS
67
SECTION 5 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
FORM 160.84-N1
ISSUE DATE: 11/22/2016
5
CONDENSER 150 PSI MARINE WATER BOXES

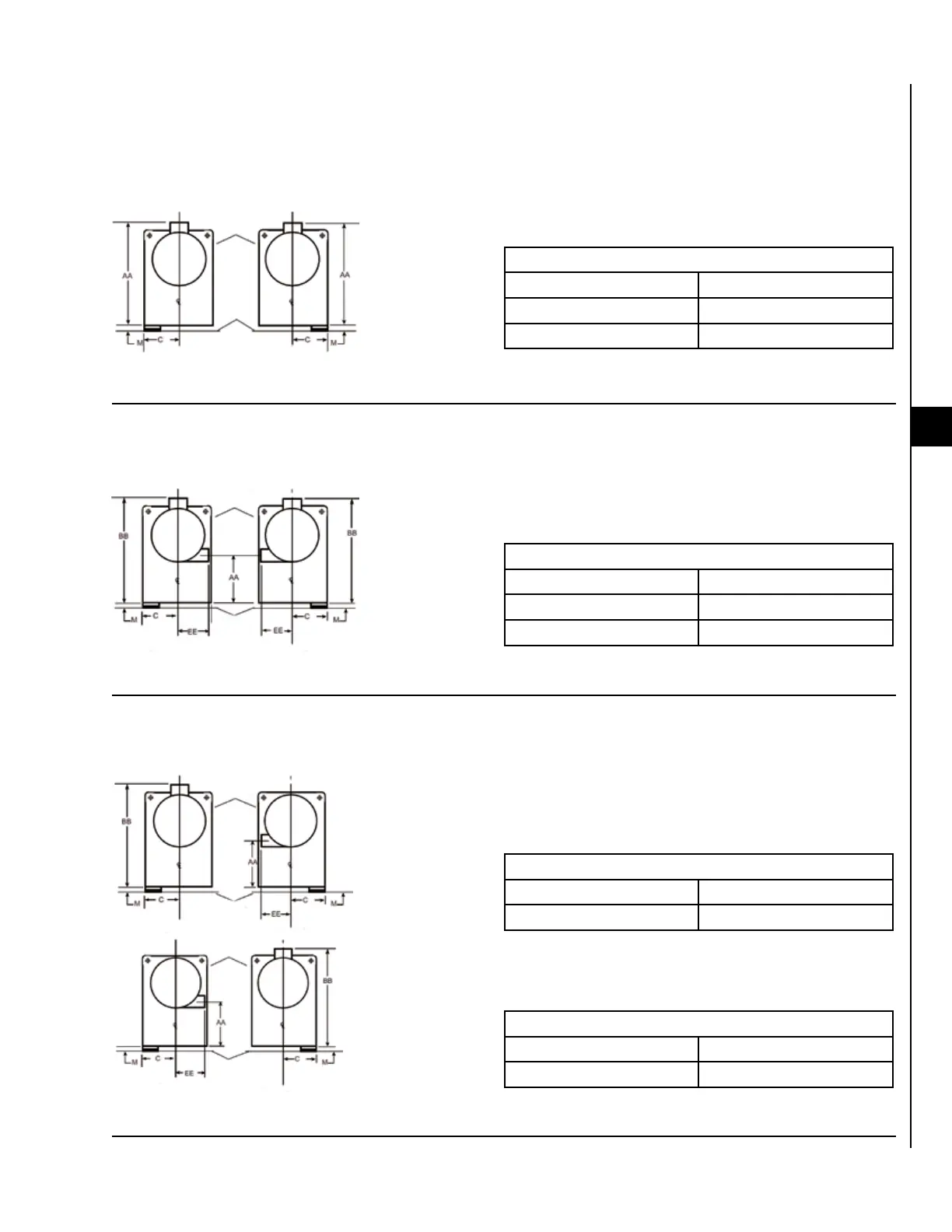

FIGURE 55 - CONDENSER - MARINE WATER BOXES (1-PASS NOZZLE ARRANGEMENTS)
LD14016
1-Pass Condenser Nozzle Arrangements
In Out
Left End Right End
Right End Left End
FIGURE 56 - CONDENSER - MARINE WATER BOXES (2-PASS NOZZLE ARRANGEMENTS)
LD14017
2-Pass Condenser Nozzle Arrangements
In Out
Lower Right End Upper Right End
Lower Left End Upper Left End
LD14019
LD14018
FIGURE 57 - CONDENSER - MARINE WATER BOXES (3-PASS NOZZLE ARRANGEMENTS)
3-Pass Condenser Nozzle Arrangements
In Out
Right End Left End
3-Pass Condenser Nozzle Arrangements
In Out
Left End Right End
