York YMC2 - FIGURE 54 - Evaporator - 150 and 300 PSI Marine Water Boxes

JOHNSON CONTROLS
66
FORM 160.84-N1
ISSUE DATE: 11/22/2016
SECTION 5 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
EVAPORATOR 150 & 300 PSI MARINE WATER BOXES DIMENSIONS
MARINE WATER BOXES DIMENSIONS FT - IN (MM)
EVAPORATOR
SHELL CODE
150 AND 300 PSI
1-PASS 2-PASS 3-PASS
F I I G F I
EB25
(150PSI)
1'-7"
(483)
0'-8-13/16"
(224)
0'-7-3/4"
(197)
0'-6-7/16"
(164)
1'-3-7/8"
(403)
0'-7-3/4"
(197)
EB25
(300PSI)
1'-7"
(483)
0'-8-13/16"
(224)
0'-7-3/4"
(197)
0'-8-3/16"
(208)
1'-3-7/8"
(403)
0'-7-3/4"
(197)
EB29
(150PSI)
1'-10-7/8"
(581)
0'-10-5/8"
(270)
0'-9-9/16"
(243)
0'-6-31/32"
(177)
1'-8-3/4"
(527)
0'-9-9/16"
(243)
EB29
(300PSI)
1'-10-7/8"
(581)
0'-10-5/8"
(270)
0'-9-9/16"
(243)
0'-9-7/32"
(234)
1'-8-3/4"
(527)
0'-9-9/16"
(243)
EB33
(150PSI)
2'-2"
(660)
1'-0-1/8"
(308)
0'-10-1/4"
(260)
0'-7-1/2"
(191)
1'-10-1/4"
(565)
0'-10-1/4"
(260)
EB33
(300PSI)
2'-2"
(660)
1'-0-1/8"
(308)
0'-10-1/4"
(260)
0'-9-1/2"
(241)
1'-10-1/4"
(565)
0'-10-1/4"
(260)
EC33
(150PSI)
2'-3-1/2"
(698)
1'-1-3/4"
(350)
0'-11-1/2"
(292)
0'-11-7/8"
(301)
1'-11"
(584)
0'-11-1/2"
(292)
EC33
(300PSI)
2'-6-1/4"
(768)
1'-3-1/8"
(384)
1'-0-5/8"
(321)
1'-0-3/4"
(324)
2'-1-1/4"
(641)
1'-0-5/8"
(321)
EC39
(150PSI)
2'-4-3/4"
(730)
1'-2-3/8"
(365)
1'-0-3/8"
(314)
1'-2-1/2"
(368)
2'-0-3/4"
(629)
1'-0-3/8"
(314)
EC39
(300PSI)
2'-7-1/2"
(800)
1'-3-3/4"
(400)
1'-1-1/4"
(337)
1'-3-1/2"
(394)
2'-2-1/2"
(673)
1'-1-1/4"
(337)
NOTES:
1. All dimensions shown in Ft/In (mm)
2. All dimensions are approximate. Certied dimensions are available upon request.
3. Standard water nozzles are Schedule 40 pipe size, furnished as welding stub-outs with ANSI/AWWA C-606 grooves, allowing the option of
welding, anges, or use of ANSI/AWWA C-606 couplings. Factory-installed, class 150 (ANSI B16.5, round slip-on, forged carbon steel with
1.6 mm raised face), water anged nozzles are optional (add 13 mm to nozzle length). Companion anges, nuts, bolts, and gaskets are not
furnished.
4. One-, two-, and three-pass nozzle arrangements are available only in pairs shown and for all shell codes. Any pair of evaporator nozzles
may be used in combination with any pair of condenser nozzles. Compact water boxes on one heat exchanger may be used with Marine
Water Boxes on the other heat exchanger.
5. Water must enter the water box through the bottom connection to achieve rated performance.

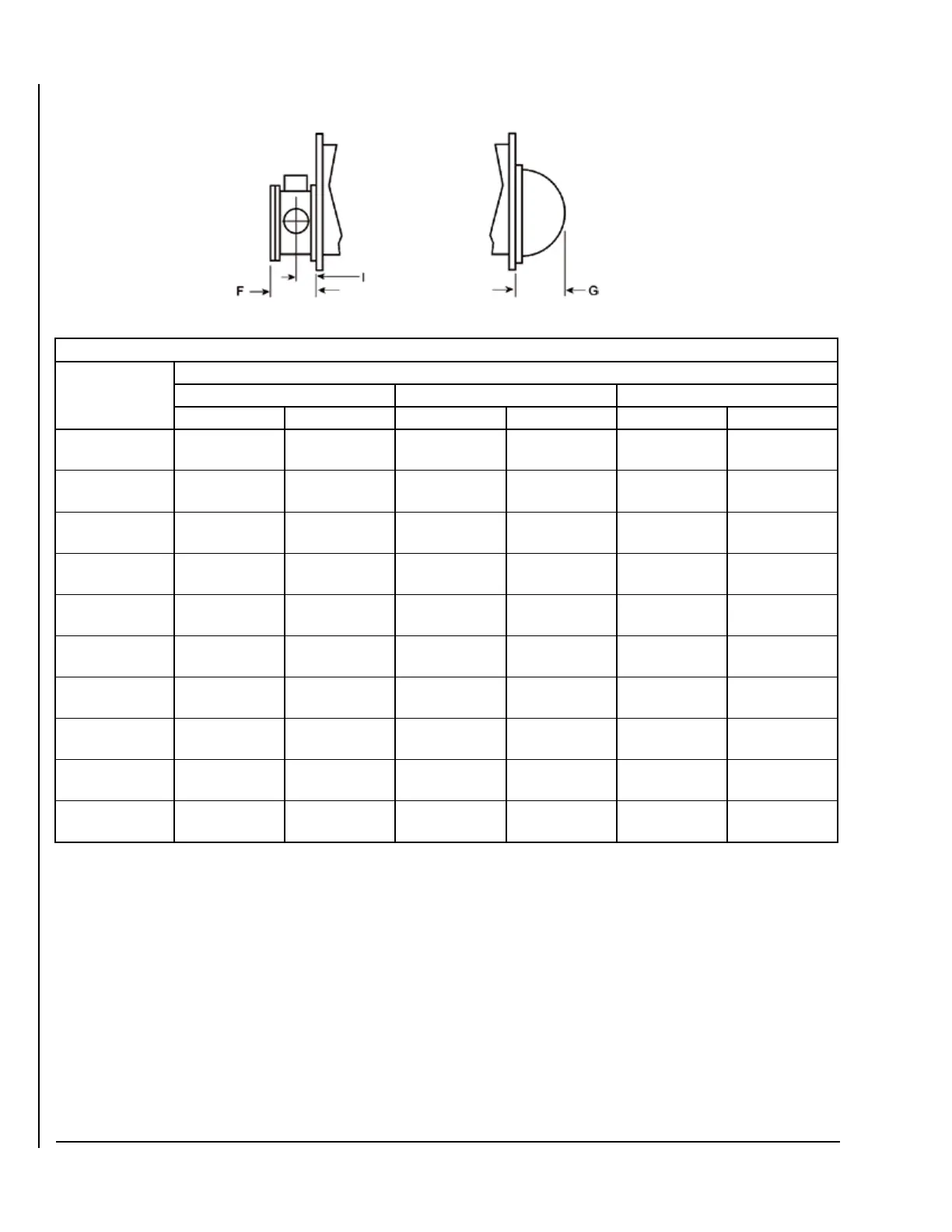

FIGURE 54 - EVAPORATOR - 150 AND 300 PSI MARINE WATER BOXES
LD14021
