York YMC2 - FIGURE 47 - Evaporator and Condenser - 150 & 300 Psi Compact Water Boxes

JOHNSON CONTROLS
61
SECTION 5 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
FORM 160.84-N1
ISSUE DATE: 11/22/2016
5
EVAPORATOR AND CONDENSER 150 & 300
PSI COMPACT WATER BOXES DIMENSIONS

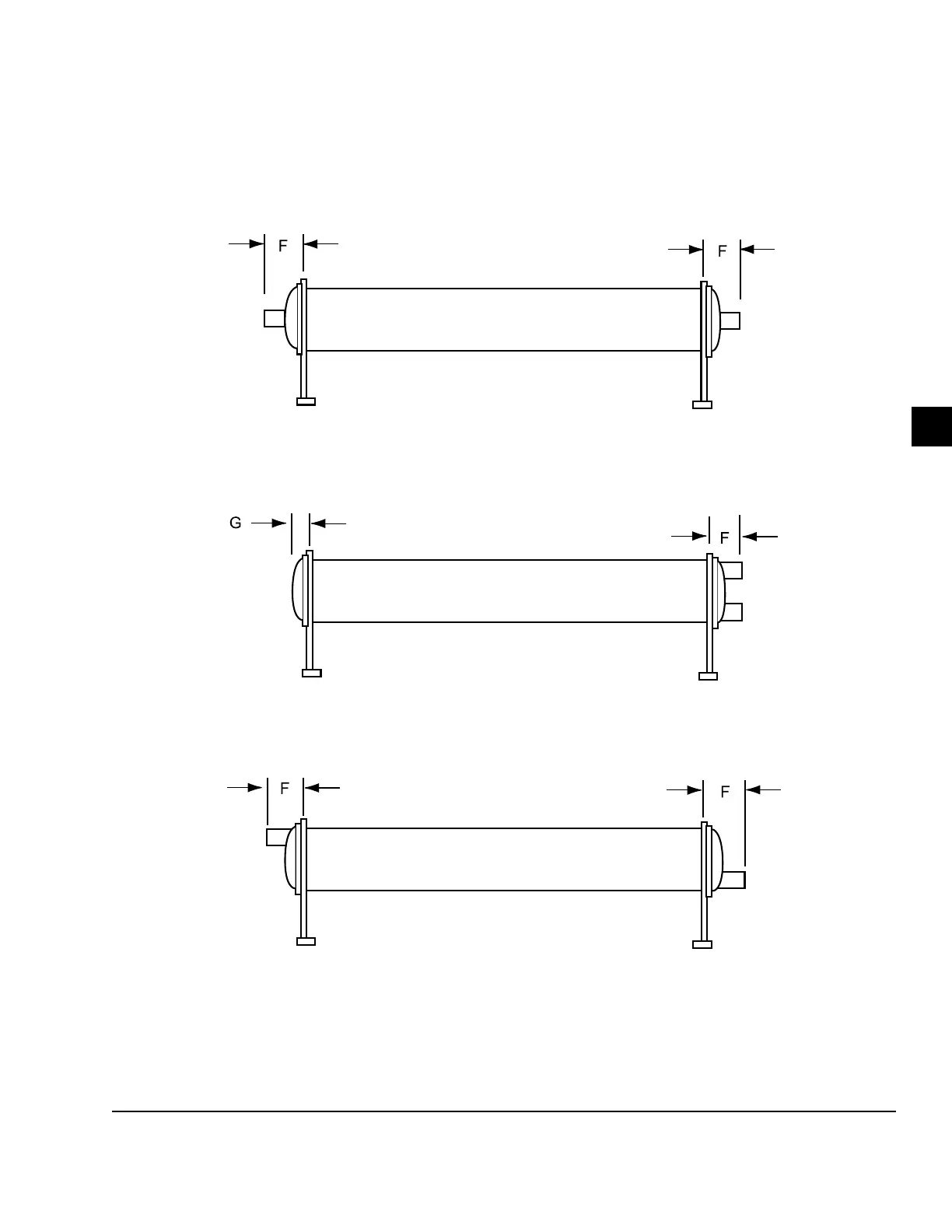

FIGURE 47 - EVAPORATOR AND CONDENSER - 150 & 300 PSI COMPACT WATER BOXES
ONE - PASS
TWO - PASS
THREE - PASS
LD14020
