Zapi ZAPIMOS HP 350A - Sequence of Settings for Lifting

Pagina 18
4.54.5
4.54.5
4.5
SEQUENCE OF SETTINGS FOR LIFTINGSEQUENCE OF SETTINGS FOR LIFTING
SEQUENCE OF SETTINGS FOR LIFTINGSEQUENCE OF SETTINGS FOR LIFTING
SEQUENCE OF SETTINGS FOR LIFTING
- With the machine switched off, connect the programming console and then switch on. If
no wiring errors or component defects are found, the display shows the manufacturer’s
name, programme release, configuration, and hour-metre value.
If the module has already been configured, the procedure passes directly to step four.
Otherwise, proceed in order as follows.
Consult the console manual for further procedure details.
1)1)
1)1)
1) Configure the chopper model.
2)2)
2)2)
2) Select the desired options.
3)3)
3)3)
3) Select and set battery voltage.
4)4)
4)4)
4) Check the functioning of all the wired inputs, including the potentiometer, by means of the
tester functions on the console.
5)5)
5)5)
5) Carry out accelerator signal acquisition on the “PROGRAM VACC” menu.
6)6)
6)6)
6) Set the maximum current by selecting the level corresponding to the desired value.
7)7)
7)7)
7) Set the speed of the respective functions with the machine in standby, and the level of
compensation set at “0”. Then apply a load and set the compensation until it reaches the
desired speed. As the adjustments of speed and compensation are interdependent, further
adjustments must be made before reaching the optimum condition.
8)8)
8)8)
8) Set the hydrodrive speed in the same way as the others, with the only difference being that
the speed is set with the steering in standby, while the compensation is set with the
steering under load.
9)9)
9)9)
9) Set acceleration, deceleration, and creep as necessary.

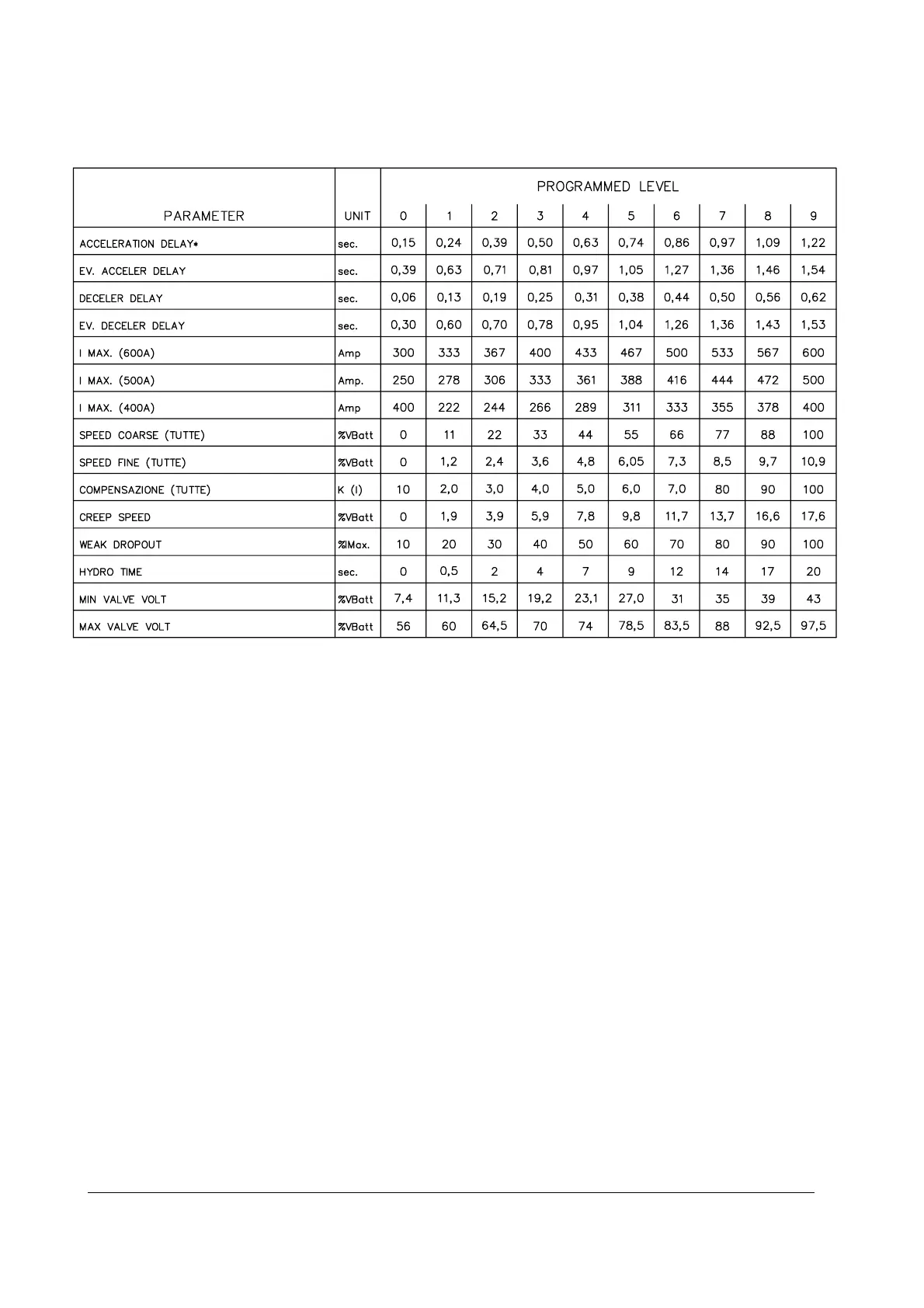

TABLE OF MODIFICATIONS
MENU
