Zapi ZAPIMOS HP 350A - General Product Characteristics; Specifications; Adjustment Tools

Pagina 4
Voltages range A: 24V
range B: 36/40/48V
range C: 60/72/80V
range D: 96V
Max Current 350 Amps
Operating Frequency 18KHz
External temperature range -30 ÷ 40°C
Minimum temperature reached by the chopper 85°C
Motors series and compound
Drop voltage at 150 Amps: Supply Voltage [V] Drop Voltage [mV]
24 300
36/40/48 590
60/72/80/96 910
Microprocessor logic unit:
Via consolle it is possible to set 2 different cofigurations:
1. 5 speed pump control chopper
2. 4 speed pump control chopper + driver of hydroguide contactor
1.2 Adjustment tools
1.2a Microswitches
The microswitches send a voltage signal when the desired speed request is made.
1.2b Potentiometer

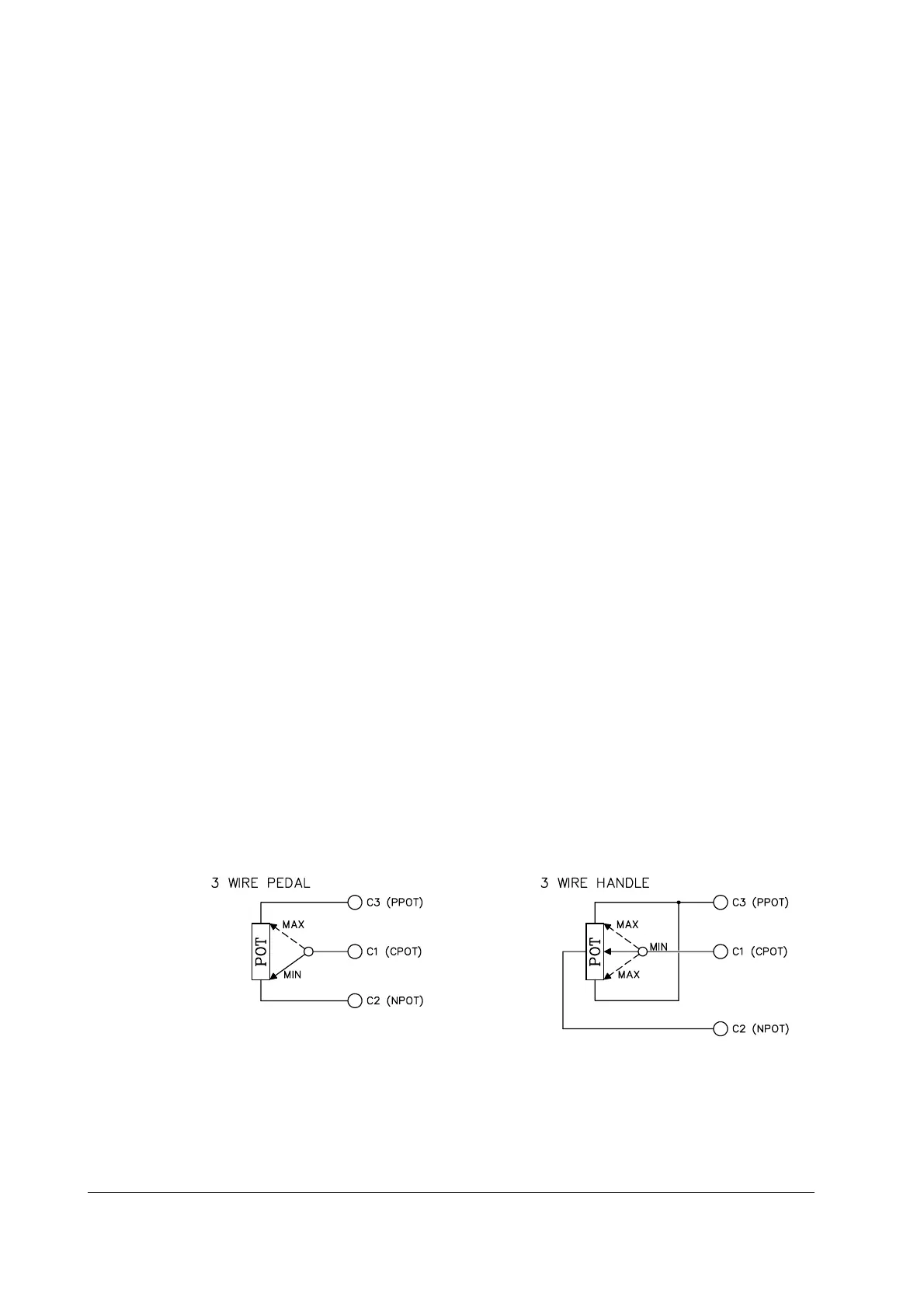

In the 3-wire configuration, the CPOT (C1) useful input signal goes from 0V to 10V.
The resistive value of the potentiometer must be between 500 ohm and 10 kohm, as lower
values overload the power supply.
2-wire potentiometer (please request while ordering):
It is possible to use the potentiometer in the 2-wire configuration but you should state its
ohmic value since a resistor on the logic boars must be installed accordingly.
Correspondence between the voltage signal to pin C1 and motor voltage.
1. GENERAL CHARACTERISTICS
1.1 Specifications
