3.6 CONTACTORS CONNECTOR DESCRIPTION
In order to command the general, hydroguide and bypass contactors a 6 pin mate-N-lock connector
is available. From this connector it is possible to get contactors coils commands.

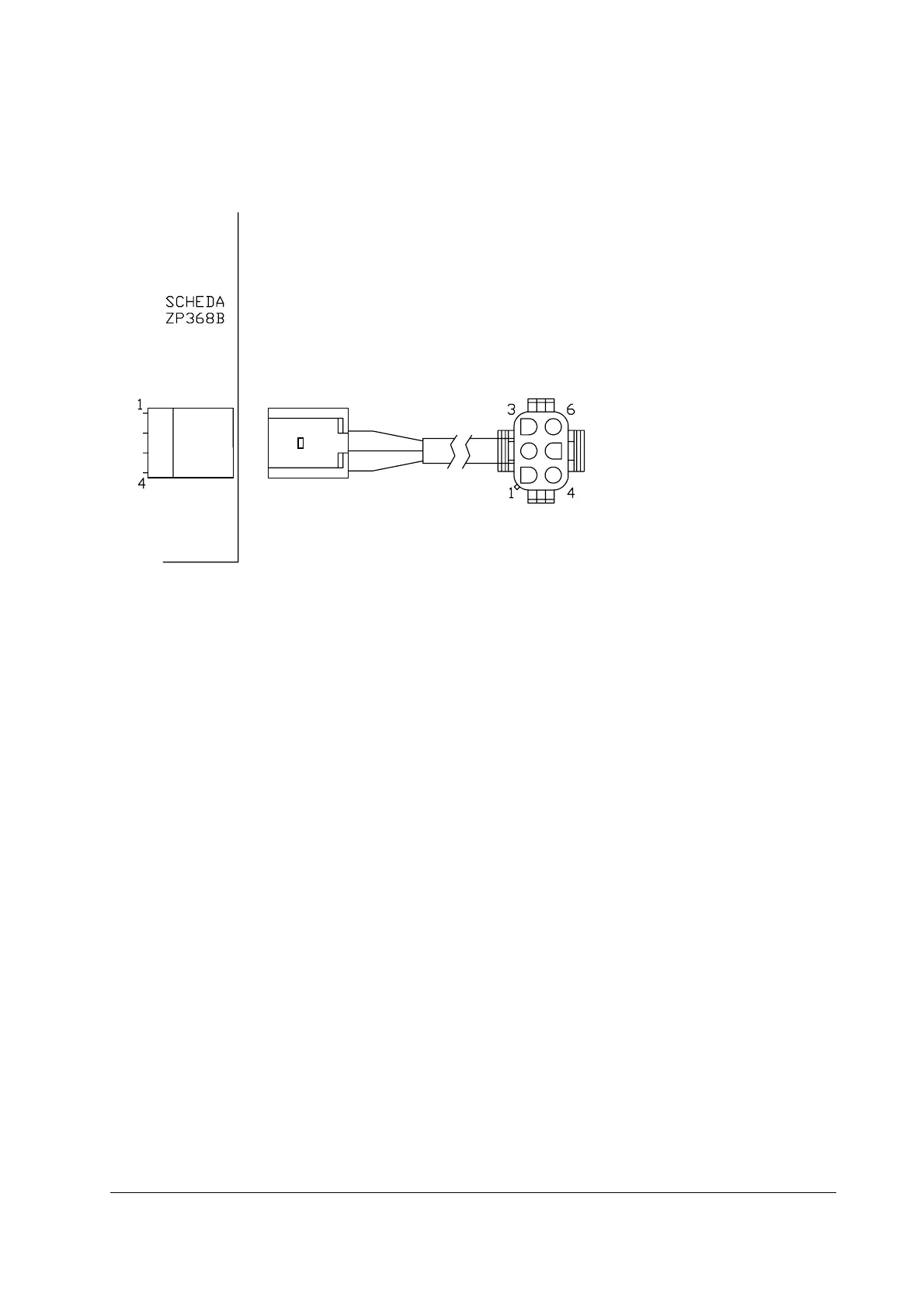

Connector G
(logic board) Wire color Connector Function
1 - - Not used
2 white-grey 3 Negative bypass or field weakening
contactor.
3 jellow-black 5 Negative hydroguide or general contactor
4 red-black 1 Contactors positive, same key voltage.
Note: If the H2P is configured as PUMP+HYDRO it is not possible to drive the general contactor
because the comand for the coil is now used for the hydroguide contactor only.
