Bottom Panel.
1. Air Supply — (air or other test gas) Con-
nection is 1/8”-27 F NPT (Similar to R1/8
BSPT British Standard Pipe Thread) Sup-
ply gas must be clean and dry.
2. External Clamp — This space is used
for Clamping (pneumatic outputs) or I/O
connection (shown)
3. Ethernet COnnector — ASCII commu-
nication, data output and command string
input.
4. M12 — Femail I/O connector.
5. Test Port — This component includes the
power cord socket, on/off switch, and the

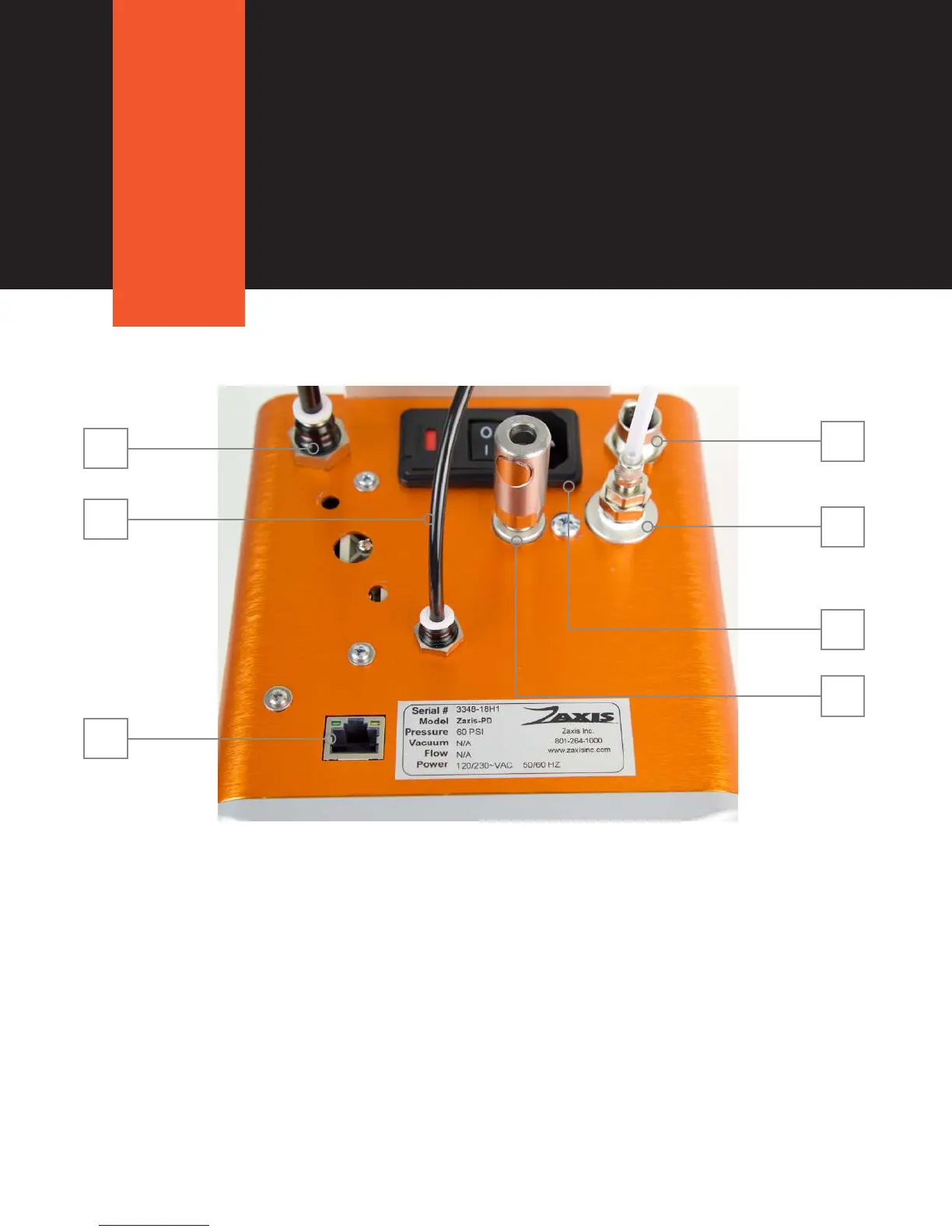

Fig. 2. Bottom Panel of the Isaac PD.
fuse holder. Power entry is capable of a
range of 109-255~VAC. 2A Fuse (Service
Instructions)
6. Power Entry Module — This compo-
nent includes the power cord socket, on/
off switch, and the fuse holder. Pow-
er entry is capable of a range of 109-
255~VAC. 2A Fuse (Service Instructions)
7. Leak Test Port — supply positive pres-
sure or vacuum for a variety of leak and
ow test.
