Parallel Interface
12/23/10 GK888t™ User Guide P1030829-001
Parallel Interface

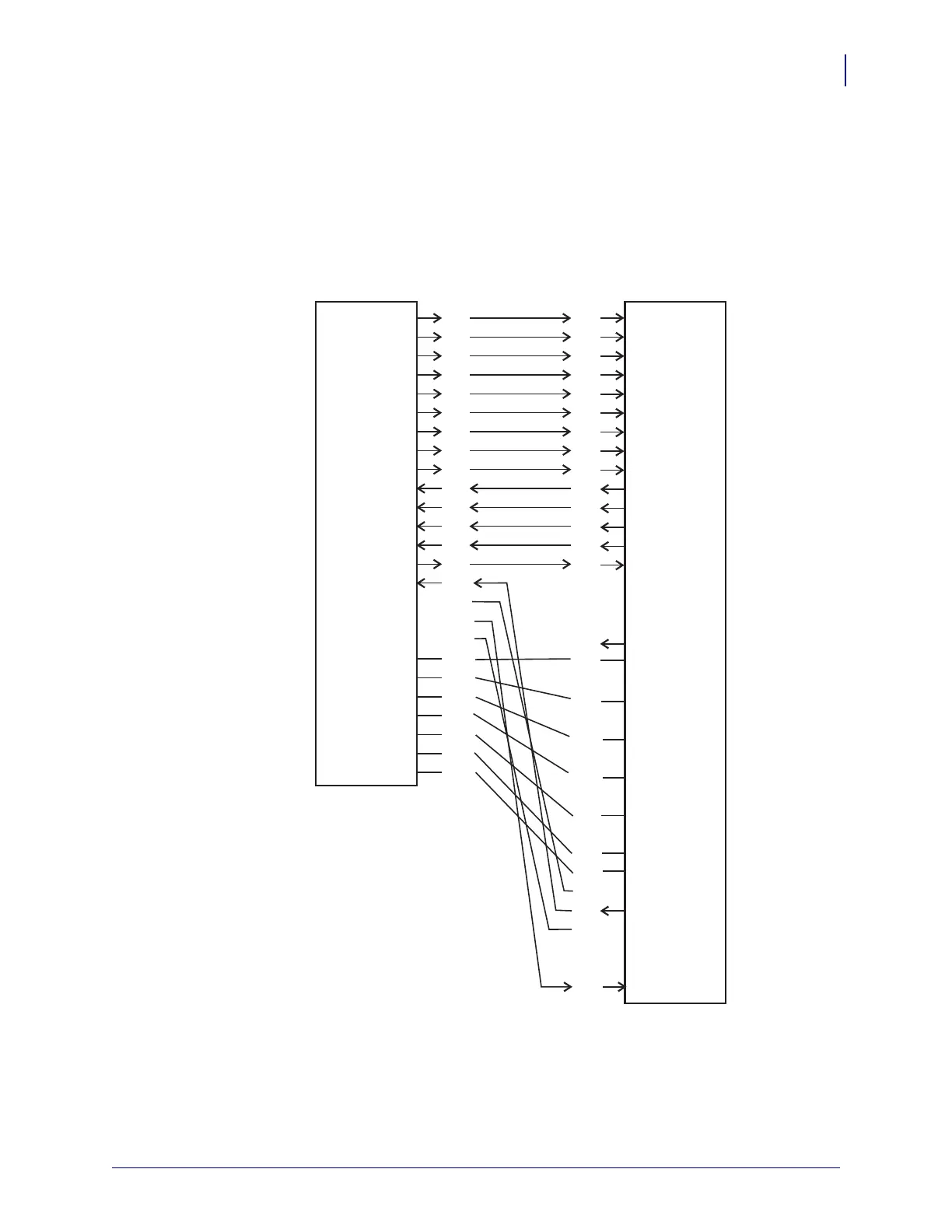

The printer’s parallel interface uses the IEEE 1284-A to 1284-B parallel interface cables. the
host connector has a DB-25 pin male connector. The printer connector is a Centronics style
connector.
PRINTER
DB-25
Pin No.
Centronics
Pin No.
DB-25 to Centronics
(Cable)
HOST
STROBE~
DATA 0
DATA 1
DATA 2
DATA 3
DATA 4
DATA 5
DATA 6
DATA 7
ACK~
BUSY
PAPER ERR.
SELECT
AUTOFD~
ERROR~
N/A
N/A
N/A
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
STROBE~
DATA 0
DATA 1
DATA 2
DATA 3
DATA 4
DATA 5
DATA 6
DATA 7
ACK~
BUSY
PAPER ERR.
SELECT
AUTOFD~
n/c
SIG. GND
CHAS GND
+5V
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
n/c
ERROR~
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
SIG. GND
n/c
n/c
SELECTIN~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

Zebra GK888t Specifications

General

Print Method	Thermal Transfer and Direct Thermal
Resolution	203 dpi (8 dots/mm)
Maximum Print Width	4.09 inches (104 mm)
Memory	8 MB Flash
Connectivity	USB, Serial, Parallel
Media Sensors	Reflective and transmissive
Media Handling	Roll-to-roll, fanfold, tag stock
Media Types	tag stock
Ribbon Ratio	1:1
Programming Languages	EPL2, ZPL
Power Requirements	2.5A
Storage Temperature	-40° F to 140° F/-40° C to 60° C
Humidity	20 to 85% non-condensing
