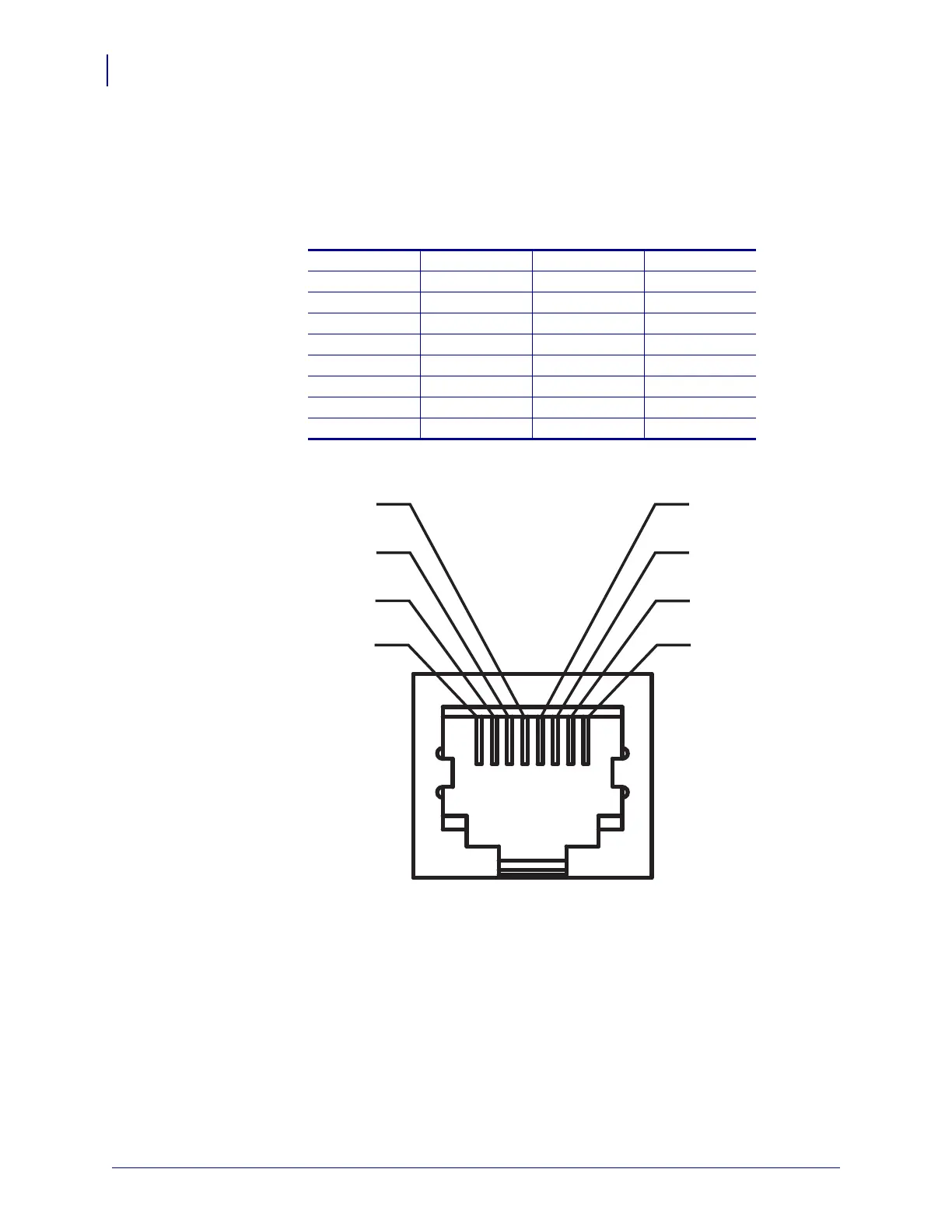

Ethernet Interface
This interface requires a UTP RJ45 Ethernet cable rated CAT-5 or better.
The table below provides the cable’s pinout assignments.
Signal Pin Pin Signal
Tx+11Tx+
Tx-22Tx-
Rx+33Rx+
—44—
—55—
Rx-66Rx-
—77—
—88—
4
3
2
1
5
6
7
8
