MC3300x-S Features
Front View

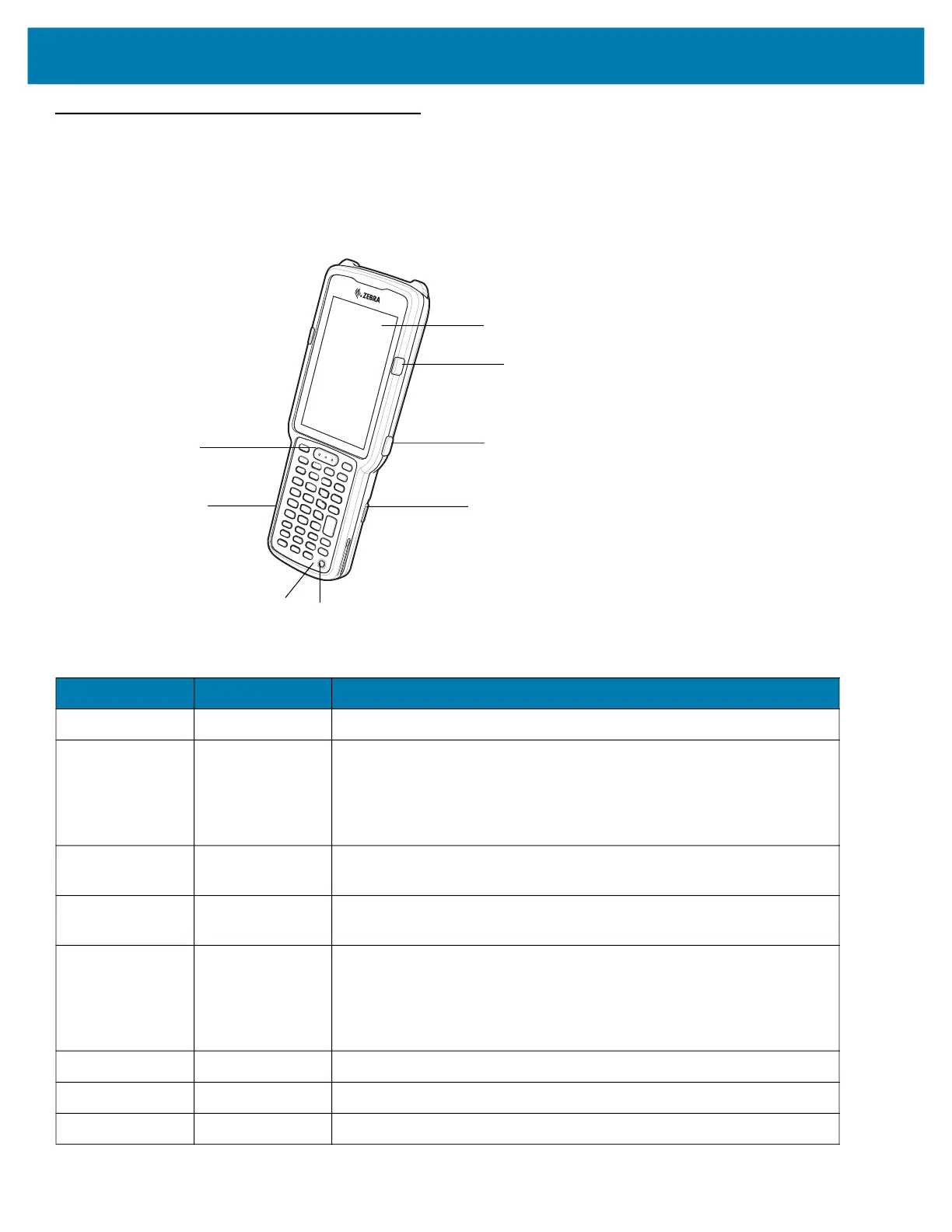

Figure 6 MC3300x-S Front View
Table 5 MC3300x-S Features - Front View
Number Item Function
1 Display Displays all information needed to operate the MC3300x-S.
2 Charge
/Application
Notification LED
or Scan/Decode
Status
Indicates the battery charge state while charging, an application
notification was received, or the scan/decode status.
3 Side Key Scan
Button
Initiates data capture when a scan application is enabled.
4 Battery Release
Latch
Release the battery from the device.
5 Power Key Press to suspend and resume device. Provides the following options:
Power off - Turn off the device.
Restart - Reboot the device when software stops responding.
Screenshot - Takes a snapshot of the current screen.
6 Microphone Use for communications in Handset mode.
7 Keypad Use to enter data and navigate on screen functions.
8 Scan Button Initiates data capture when a scan application is enabled.
