Zebra ZT600 Series Installation Instructions

Applicator Interface Option/Maintenance Kit for ZT600 Series and ZT411/ZT421 Printers
Install the New Applicator Interface
14
P1086089-003 5/8/19
Install the New Applicator Interface
1.
2. Make sure the applicator interface option board is configured according to your
requirements.
a. Verify that the high-voltage lockout jumper matches your voltage requirements.
See Jumper J3 — High-Voltage Lockout onpage6.
b. Verify that the ground isolation jumper is set to match your requirements. See
Jumper J5 — Ground Isolation Jumper on page 6.
3. See Figure 12. Align the applicator option card with the option card guide slots in the
top or bottom slot of the printer.

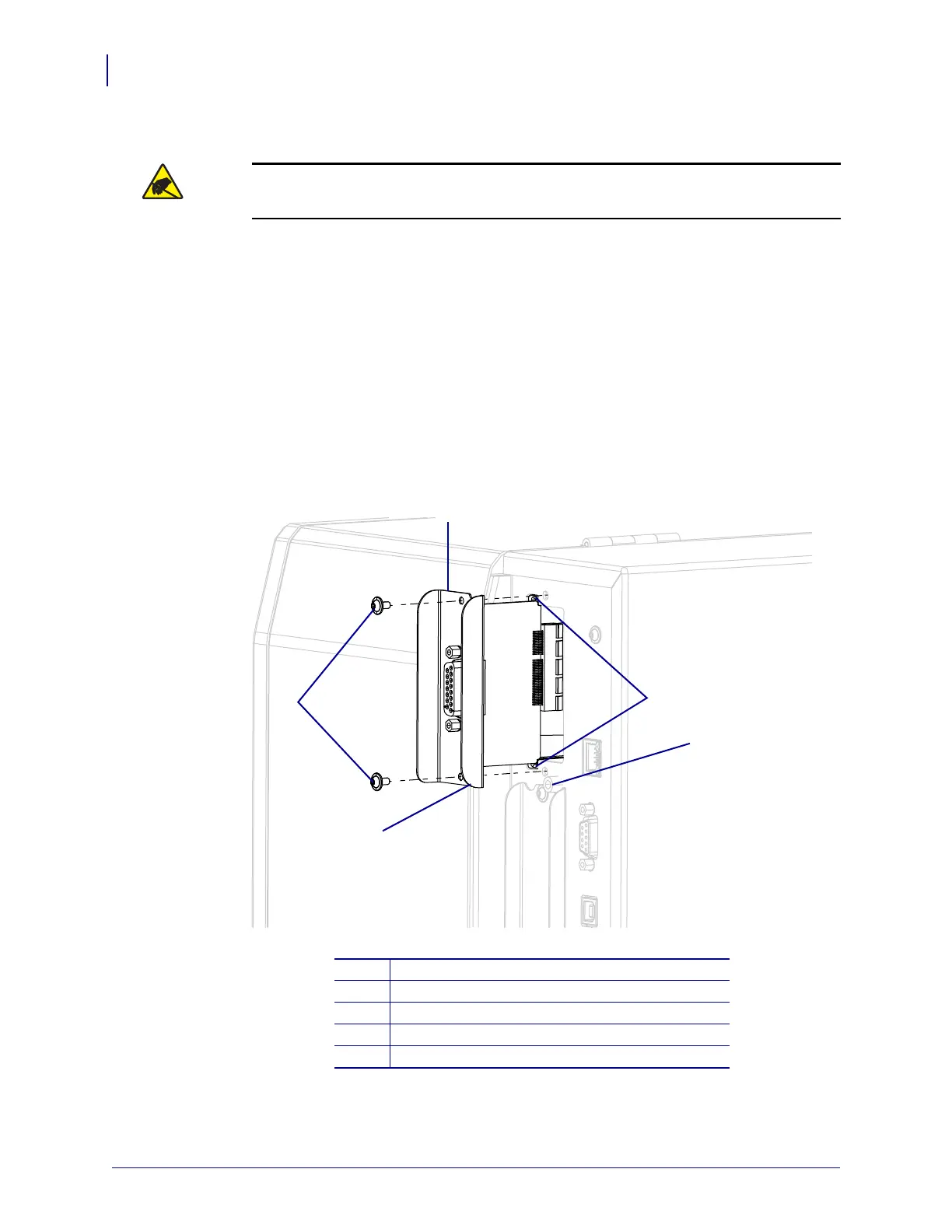

Figure 12 • Install the Applicator Interface Card (ZT600 shown)
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Applicator interface option card
2
Option card guide slots (2)
3
Locating post
4
Locating notch
5
Mounting screws (2)
1
2
5
3
4

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
