Zebra ZT600 Series Installation Instructions

5
Applicator Interface Option/Maintenance Kit for ZT600 Series and ZT411/ZT421 Printers
Applicator Interface Option
5/8/19 P1086089-003

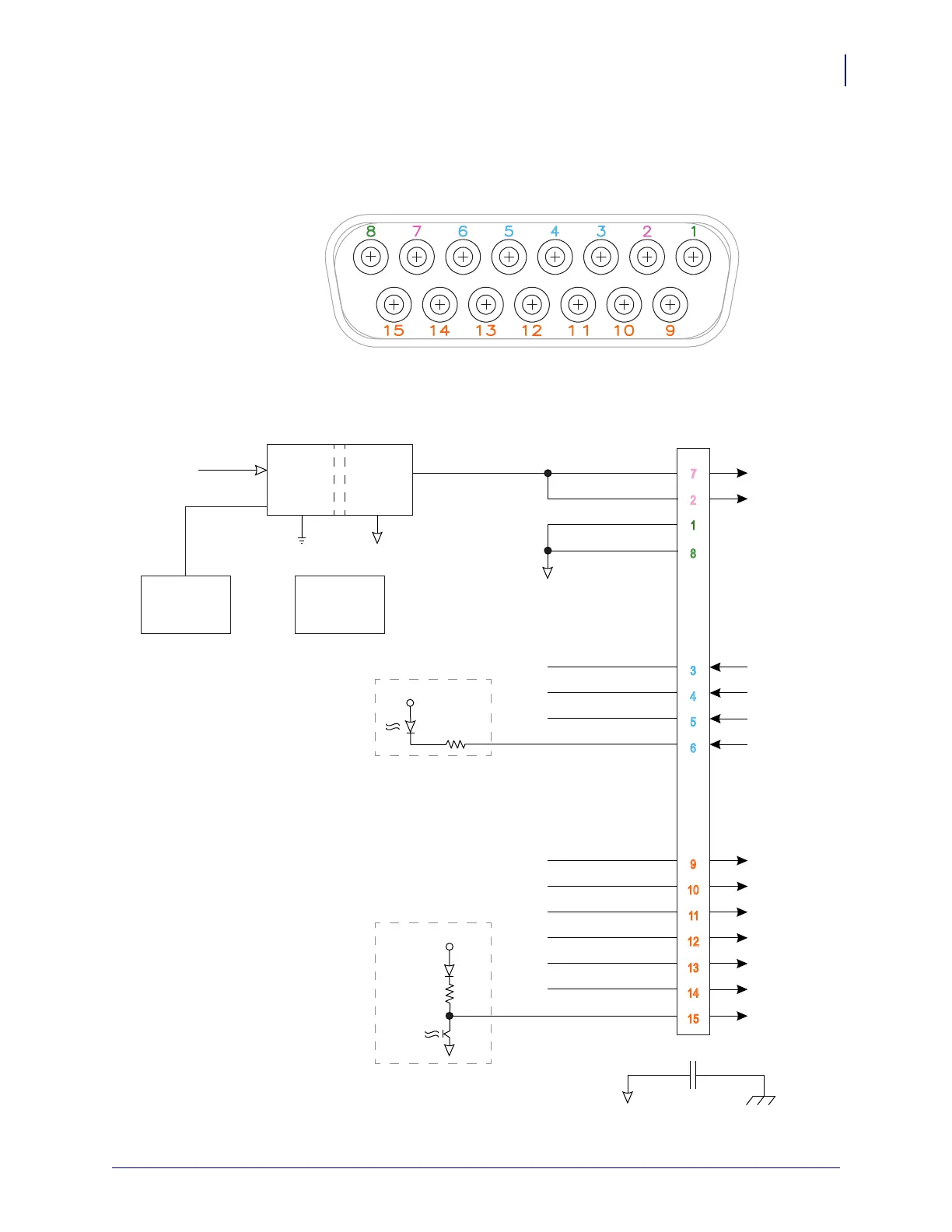

Applicator Option External Pinouts
Figure 2 • DB15 Connector
Figure 3 • External Pinouts
2
7
8
9
1
10
11
12
13
14
15
GND ISOGND
V OUT
V OUT
V OUT
Typical Input
Printer
Power
4.7K Ohm
10K Ohm
OUTPUT
OUTPUT
POWER
3
4
5
6
INPUT
RIBBON LOW
START PRINT
FEED
PAUSE
REPRINT
V OUT
V OUT
GND ISO
GND ISO
SERVICE REQUIRED
END PRINT
MEDIA OUT
RIBBON OUT
DATA READY
RFID VOID
High-
voltage
lockout
DC-DC Power Converter
(Isolated Input)
DB-15
Connector
GND ISO
2NF
GND Chassis
Jumper J3
High-voltage
lockout
Jumper J5
Isolation
Typical Output

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
