Applicator Interface Option/Maintenance Kit for ZT600 Series and ZT411/ZT421 Printers
Applicator Interface Option
6
P1086089-003 5/8/19
Jumper Configuration

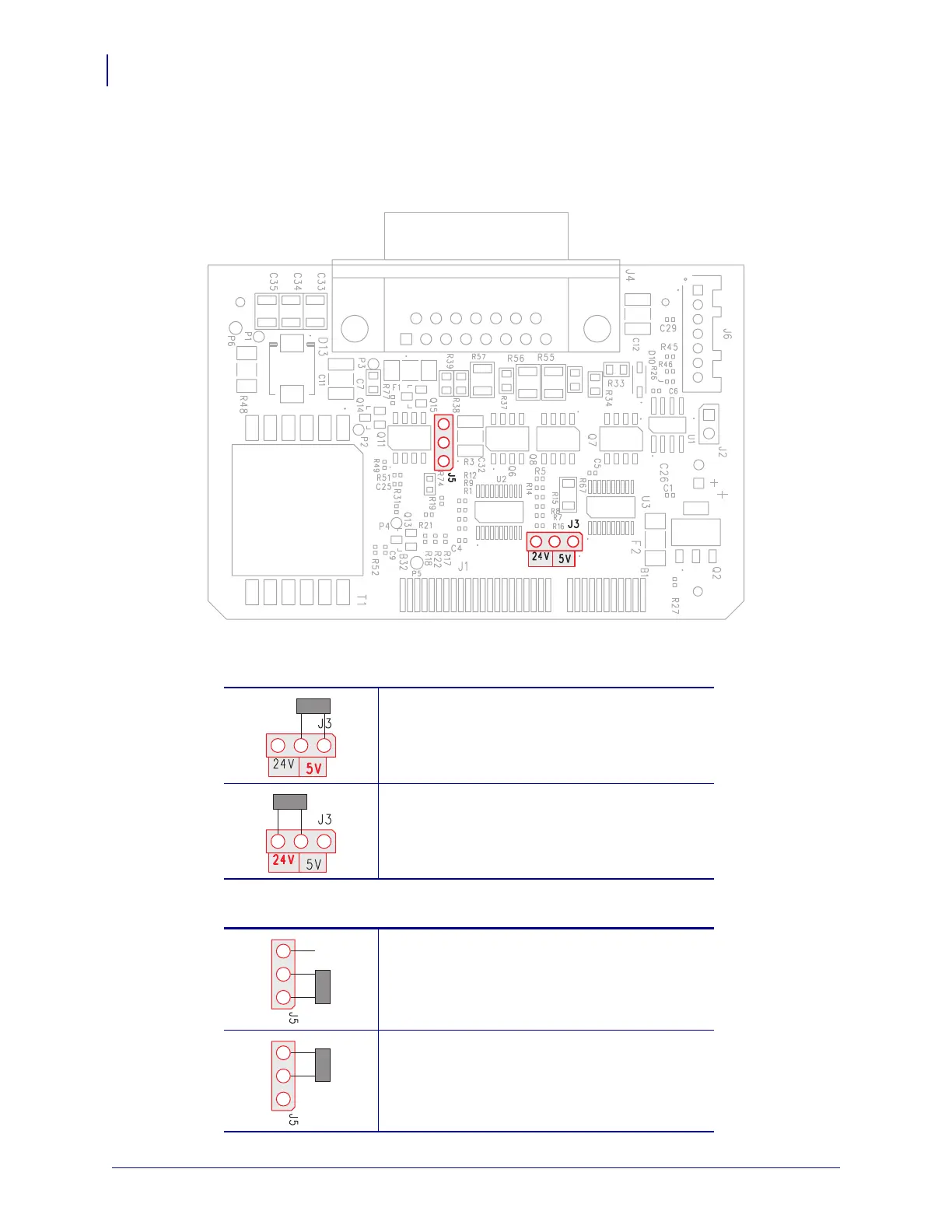

Figure 4 • Location of Jumpers J3 and J5 on the Applicator Board
Jumper J3 — High-Voltage Lockout
Jumper J5 — Ground Isolation Jumper
DB15 connector
Pins 1 and 2 connected
V out = 5V max (default)
Pins 2 and 3 connected
V out = 0V, 5V, 24V
Pins 1 and 2 connected
isolated (default)
Pins 2 and 3 connected
not isolated
123
123
12
3
12
3
