Shutter

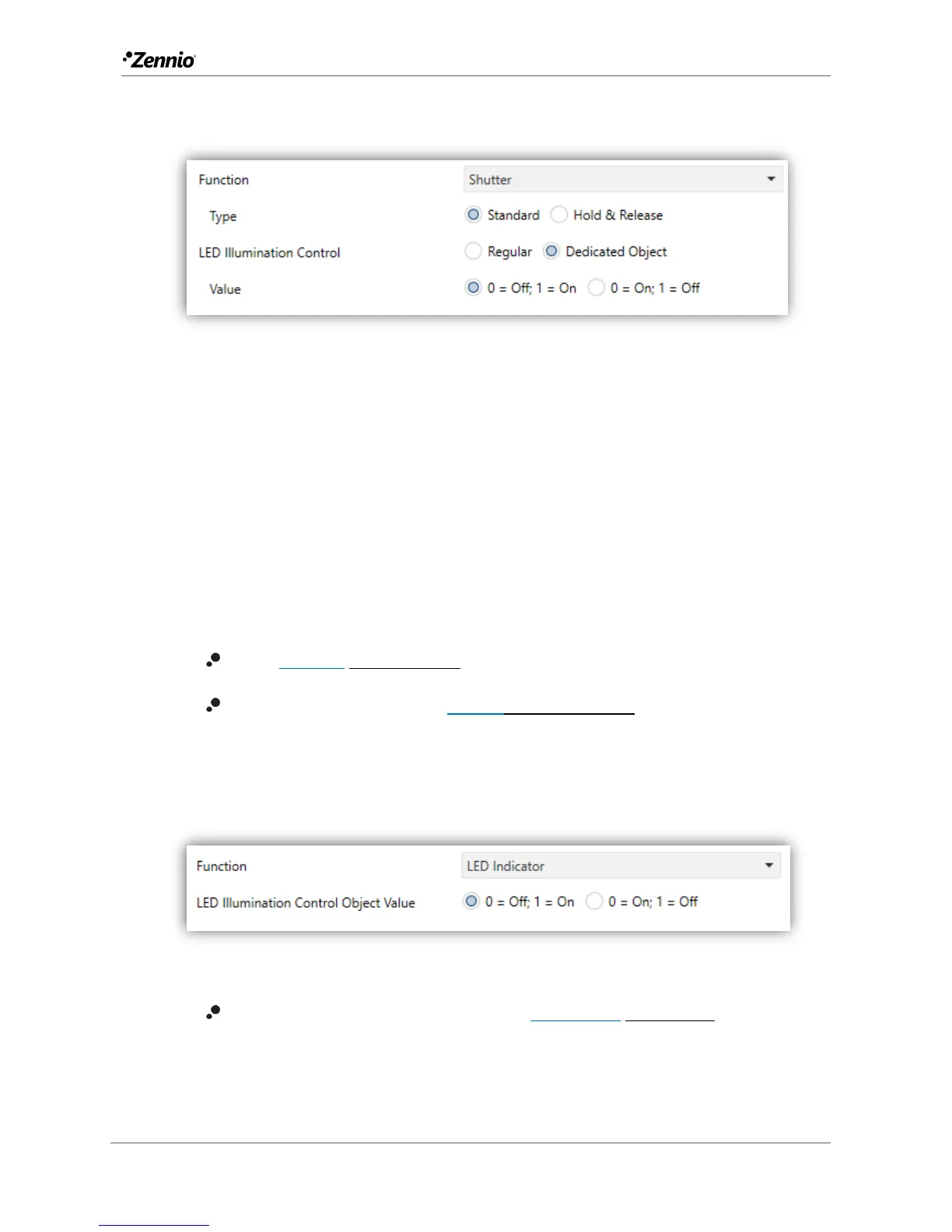

Figure 24 Individual Button – Shutter.
The (alternating) move up/down orders will be sent through the “[Btn] [In] Shutter -
Move” one-bit object, while the (alternating) step up/down orders will be through the
“[Btn] [In] Shutter - Stop / Step” one-bit object.
Additionally, a one-byte object (“[Btn] [In] Shutter Position”) is provided to link it to
the position status object of the shutter actuator (in fact, this object is only intended to
receive values from the bus, not to send them).
The parameters for this function are:
Type [Standard/Hold & Release]: sets the desired control type.
LED illumination control [Regular/Dedicated object]: analogous to the
homonymous parameter for all the previous functions (see previous pages).
LED Indicator
Figure 25 Individual Button – LED indicator.
LED illumination control object value [0=Off; 1=On/0=On; 1=Off]: sets the
behaviour of the LED of the button. The options are similar to those of the
dedicated-object LED illumination available for other control types.
