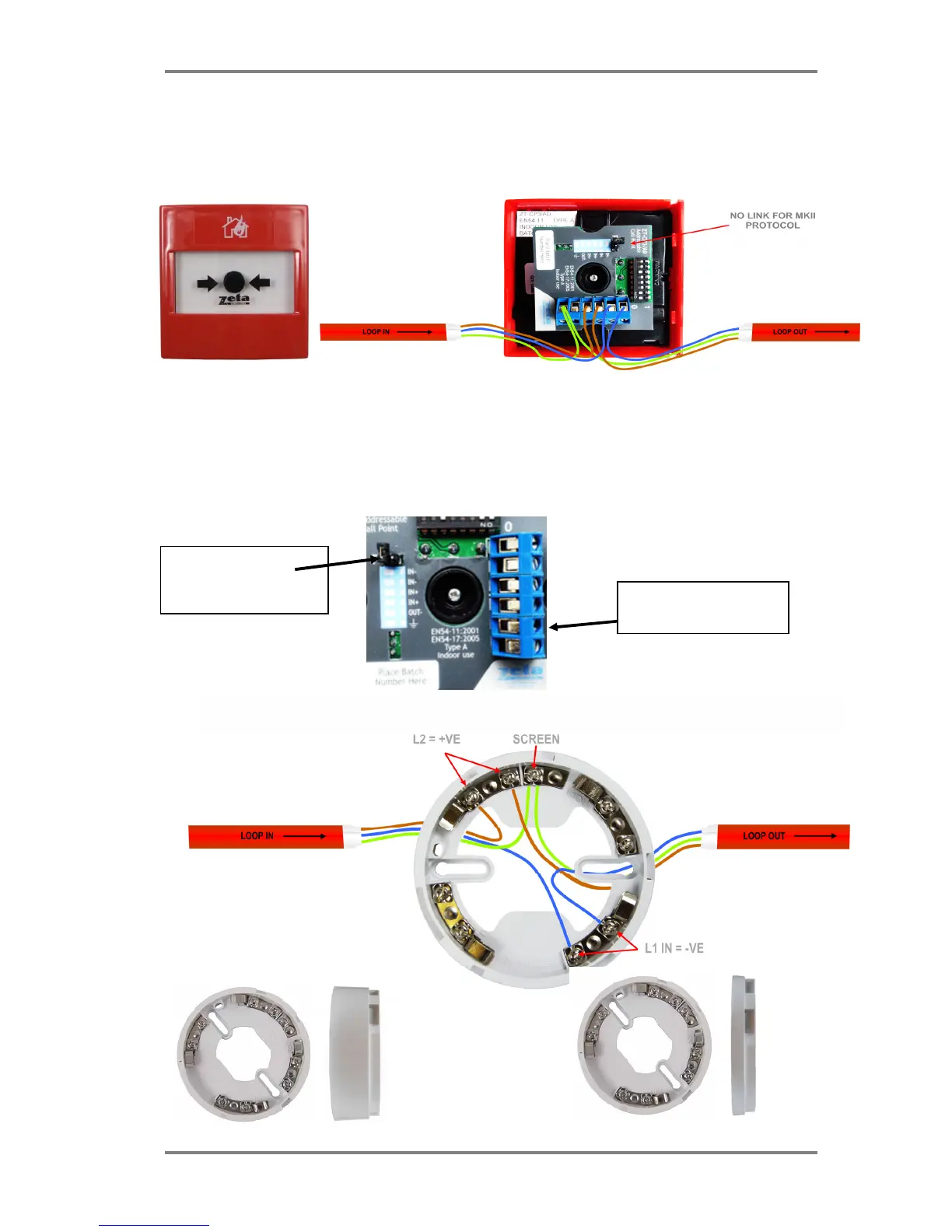

7.1 SPECIFIC DEVICE WIRING INSTRUCTIONS
All products will come with their own wiring instructions. This should be used when connecting a product. But as a
general guideline, here are the connection details of most Zeta Addressable products.
7.1.1 CP3/AD Manual Call Point
The CP3/AD call point has a built in isolator which can be wired in circuit or not used. This is done by means of not wiring
to the negative out terminal on the call point. The following terminals are used for connecting the call point.
2 x Negative in terminals (note if you only connect to the negative in terminals then the isolator is bypassed)
1 x Positive in terminal
1 x Positive out terminal
1 x Negative out terminal (note if used puts the isolator in circuit)
1 x Earth terminal used to connect the cable screen
7.1.2 MKII detectors (All types)
Base connection
The connection for the detectors bases is made
as follows:
Terminal L1IN is –ve (Blue)
Terminal L2 is +ve (Brown)
These are the only two connections required.
Deep Base MKII-CB/D Common Base MKII-CB
Negative out terminal used
when isolator is required
Protocol setting jumper
link must be removed for
MKII protocol
