iFace Series Installation Guide
16

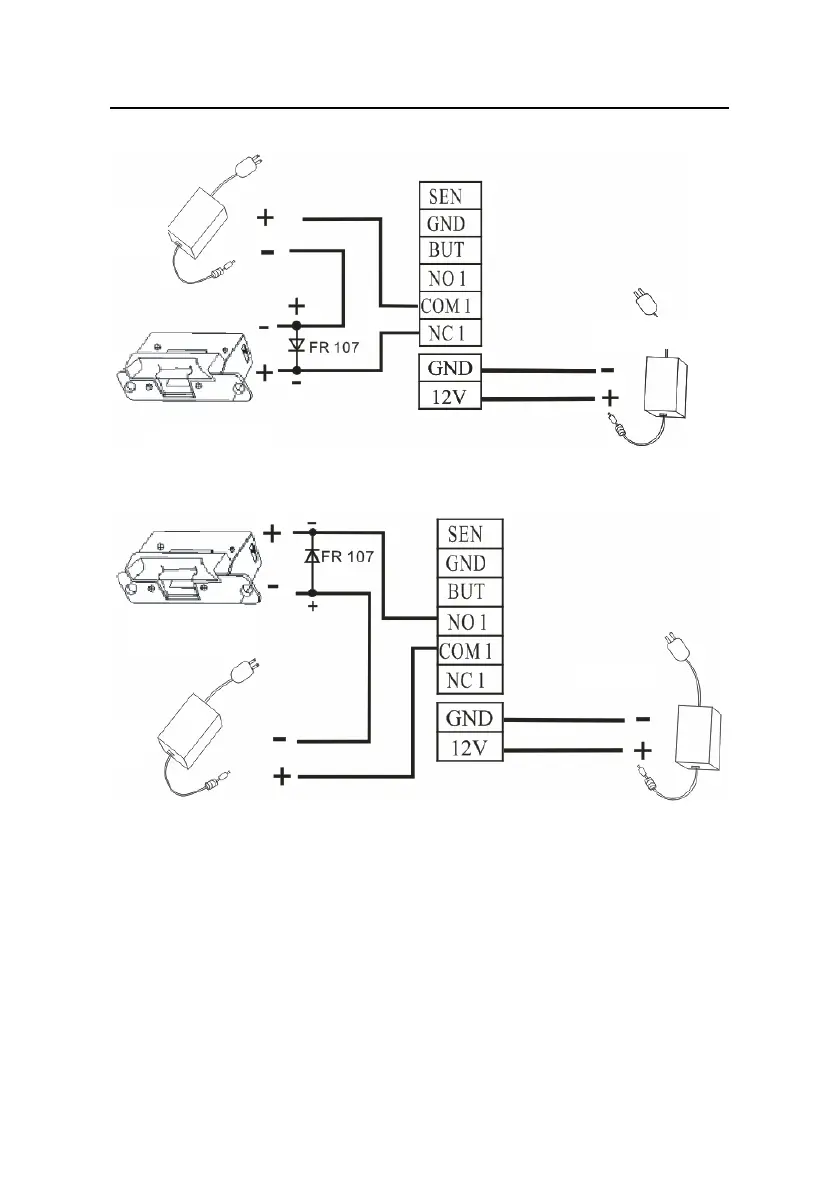

Picture 3 The terminal and lock powered by independent adapters
Picture 4 The terminal and lock powered by independent adapters
Note: Please use the diode FR107 delivered with the equipment
as the diode indicated in the figure above. Be careful not to
reverse its polarity.
N
C LOCK
NO LOCK
Lock Power
Lock Power
DC12V
DC12V
