iFace Series Installation Guide
22

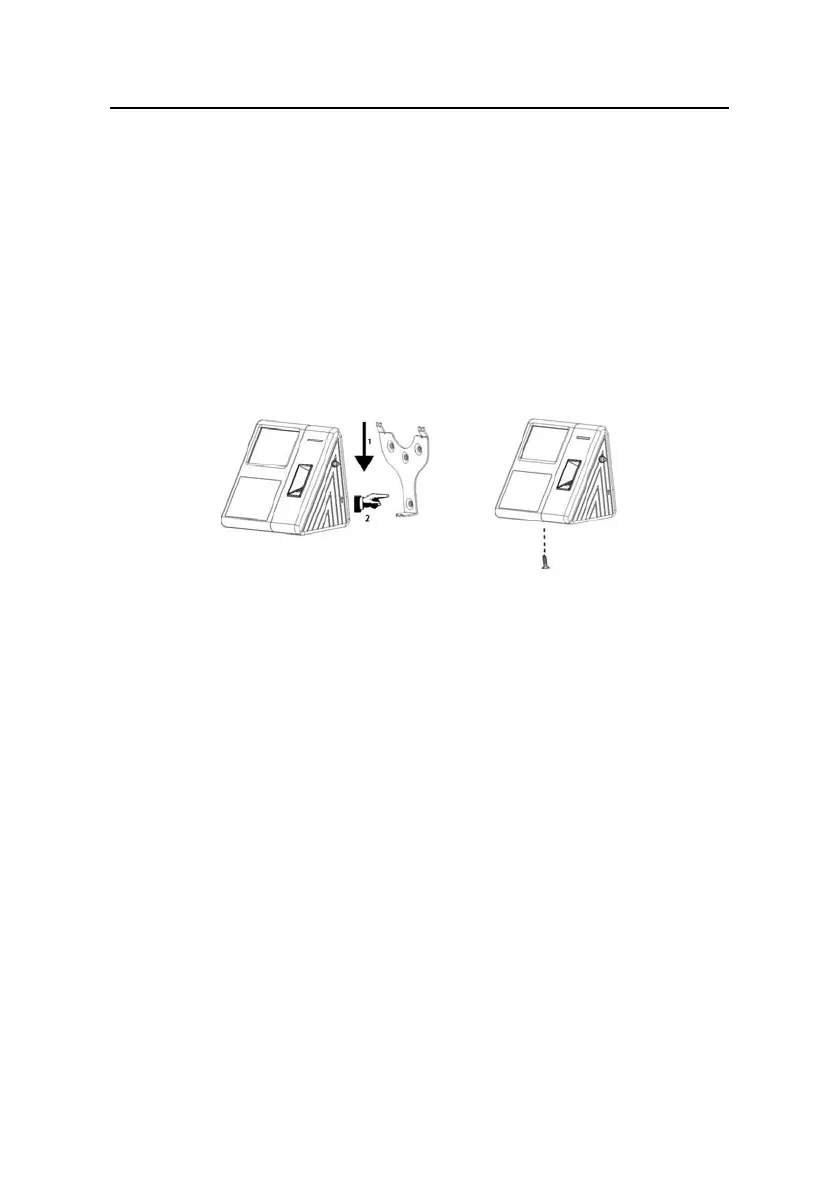

3.3 Fix the device
1. Ensure to plug all the patch correctly?
2. Hang the iFace on the mounting plate (top side first). Please
see figure ①.
3. Then secure the iFace to the mounting plate with a screw from
below. Please see figure ②.
4. After installing the back cover, ensure it will be stable, solid and
non-loosening.
① ②
