Zodiac Z950 - 1.3 Dimensions and marking

8

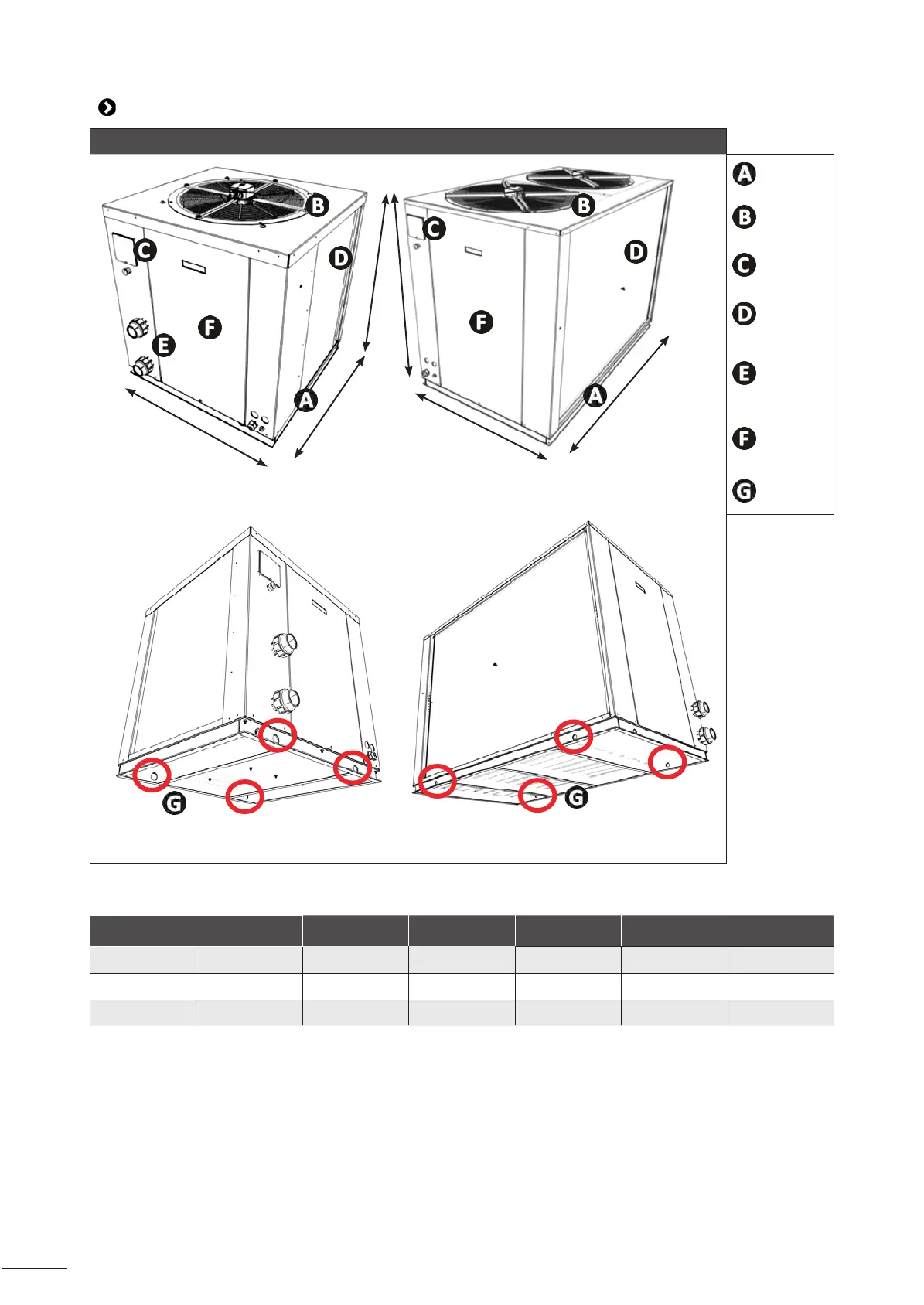

1.3 I Dimensions and marking
TD35 - TD45 TD60 -TD90 - TD120
Base
Axial fan
Interface
ulisateur
Evaporator
Water
Inlet/
Outlet
Aluminium
body
Front and side
Liing
points
Boom
Z950 TD35 TD45 TD60 TD90 TD120
X
(mm) 1,050 1,050 1,300 1,300 1,300
Y
(mm) 1,000 1,000 1,700 2,100 2,400
Z
(mm) 1,200 1,200 1,560 1,560 1,760
Y
Y
X
X
Z
