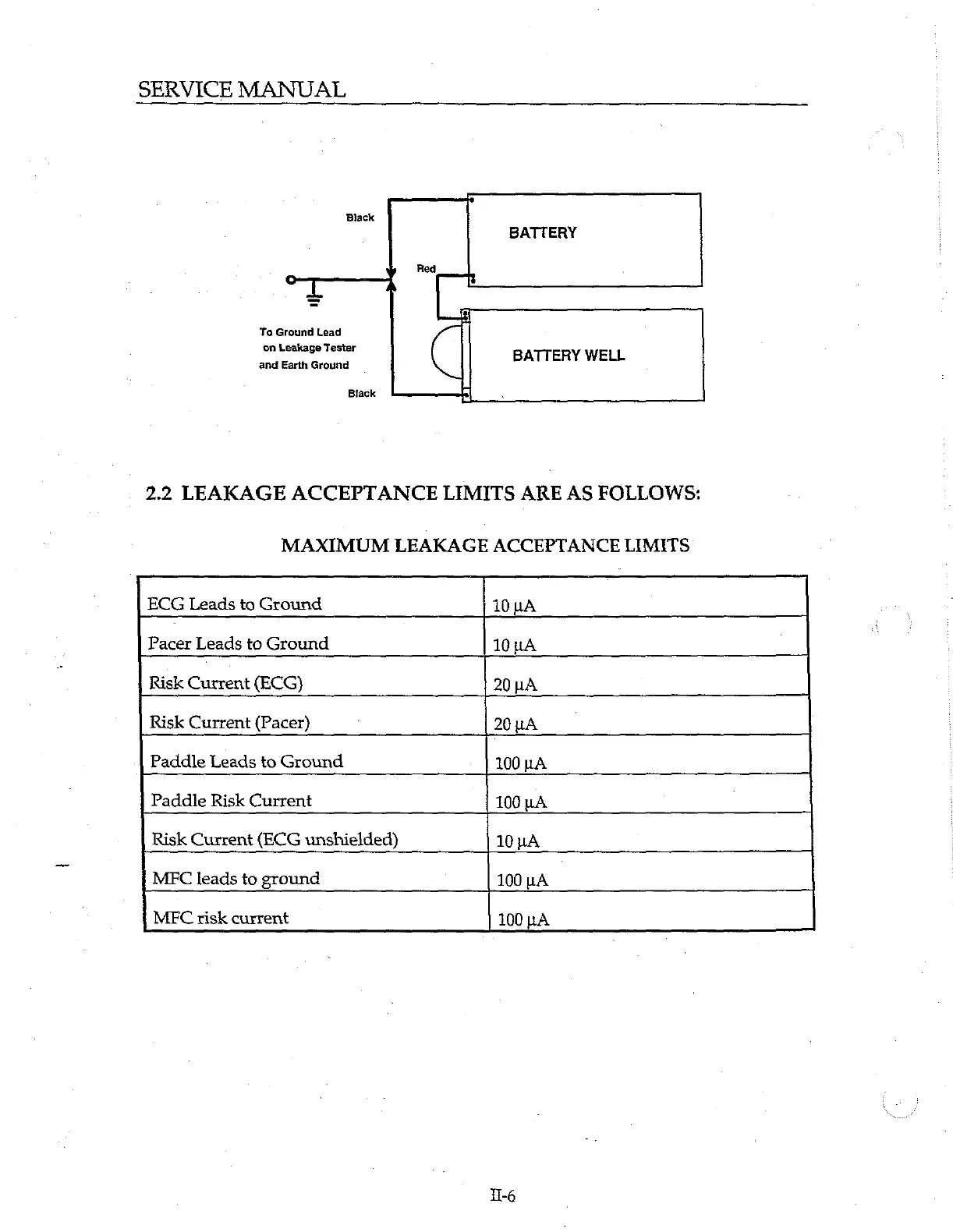

SERVICE MANUAL
Black
BATTERY
1 Red
To Ground Lead
on Leakage Tester BATTERY WELL
and Earth Ground
Black |
2.2 LEAKAGE ACCEPTANCE LIMITS ARE AS FOLLOWS:
MAXIMUM LEAKAGE ACCEPTANCE LIMITS
ECG Leads to Ground 10 pA
Pacer Leads to Ground 10 pA
Risk Current (ECG) 20 LA
Risk Current (Pacer) ' 20 HA
Paddle Leads to Ground 100 LA
Paddle Risk Current 100 uA
Risk Current (ECG unshielded) 10 LA
MEC leads to ground 100 LA
MEC risk current 100 LA
