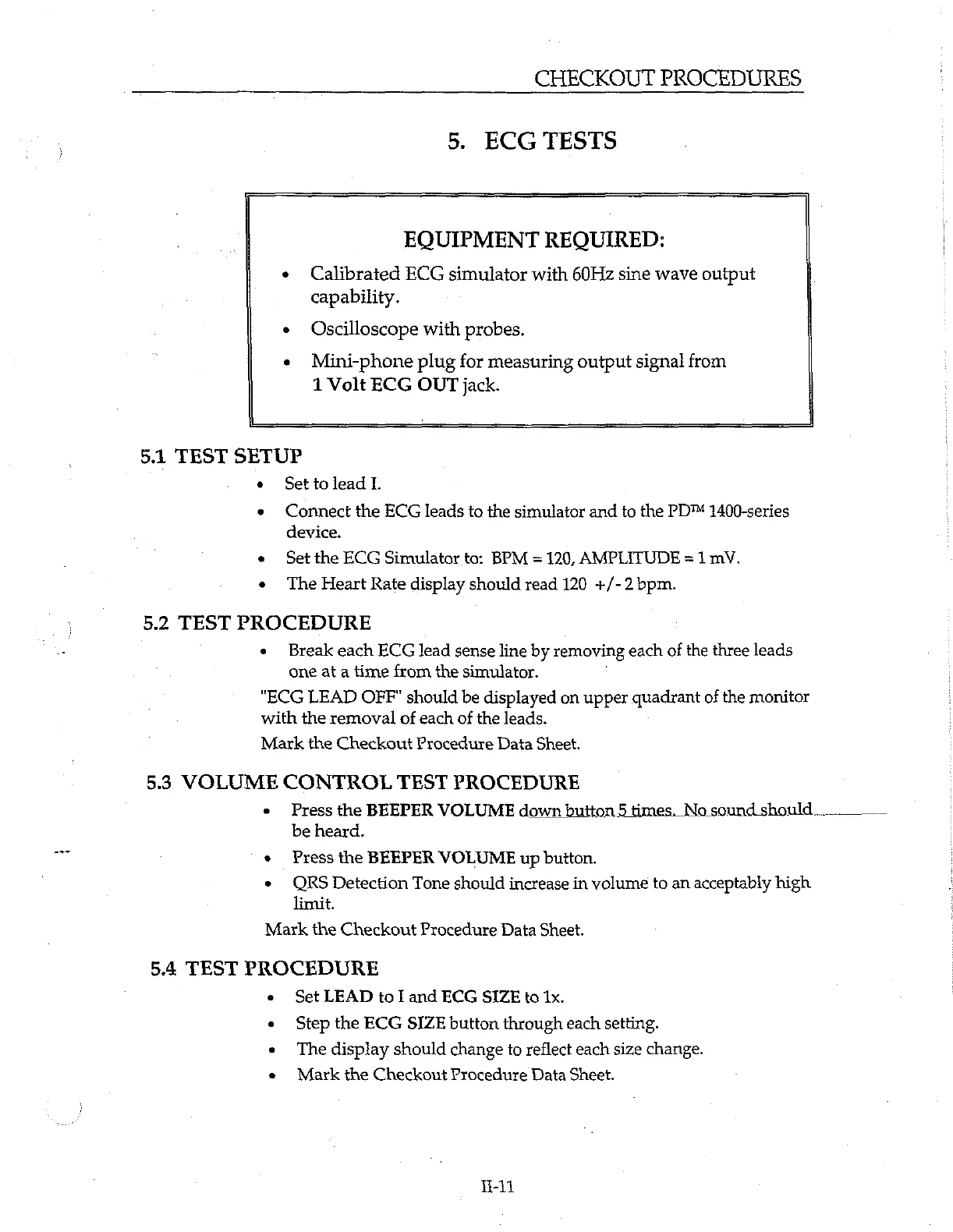

ZOLL PD 2000 - ECG Tests

CHECKOUT PROCEDURES
5. ECG TESTS
EQUIPMENT REQUIRED:
+ Calibrated ECG simulator with 60Hz sine wave output
capability.
«e Oscilloscope with probes.
» Mini-phone plug for measuring output signal from
1 Volt ECG OUT jack.
5.1 TEST SETUP
Set to lead I.
Connect the ECG leads to the simulator and to the PD™ 1400-series
device.
Set the ECG Simulator to: BPM = 120, AMPLITUDE = 1 mV.
The Heart Rate display should read 120 +/- 2 bpm.
5.2 TEST PROCEDURE
Break each ECG lead sense line by removing each of the three leads
one at a time from the simulator. ]
"ECG LEAD OFF" should be displayed on upper quadrant of the monitor
with the removal of each of the leads.
Mark the Checkout Procedure Data Sheet.
5.3 VOLUME CONTROL TEST PROCEDURE
Press the BEEPER VOLUME down button 5 times. No sound should... o
be heard.
Press the BEEPER VOLUME up button.
QRS Detection Tone should increase in volume to an acceptably high
limit.
Mark the Checkout Procedure Data Sheet.
5.4 TEST PROCEDURE
Set LEAD to I and ECG SIZE to 1x.
Step the ECG SIZE button through each setting.
The display should change to reflect each size change.
Mark the Checkout Procedure Data Sheet.
