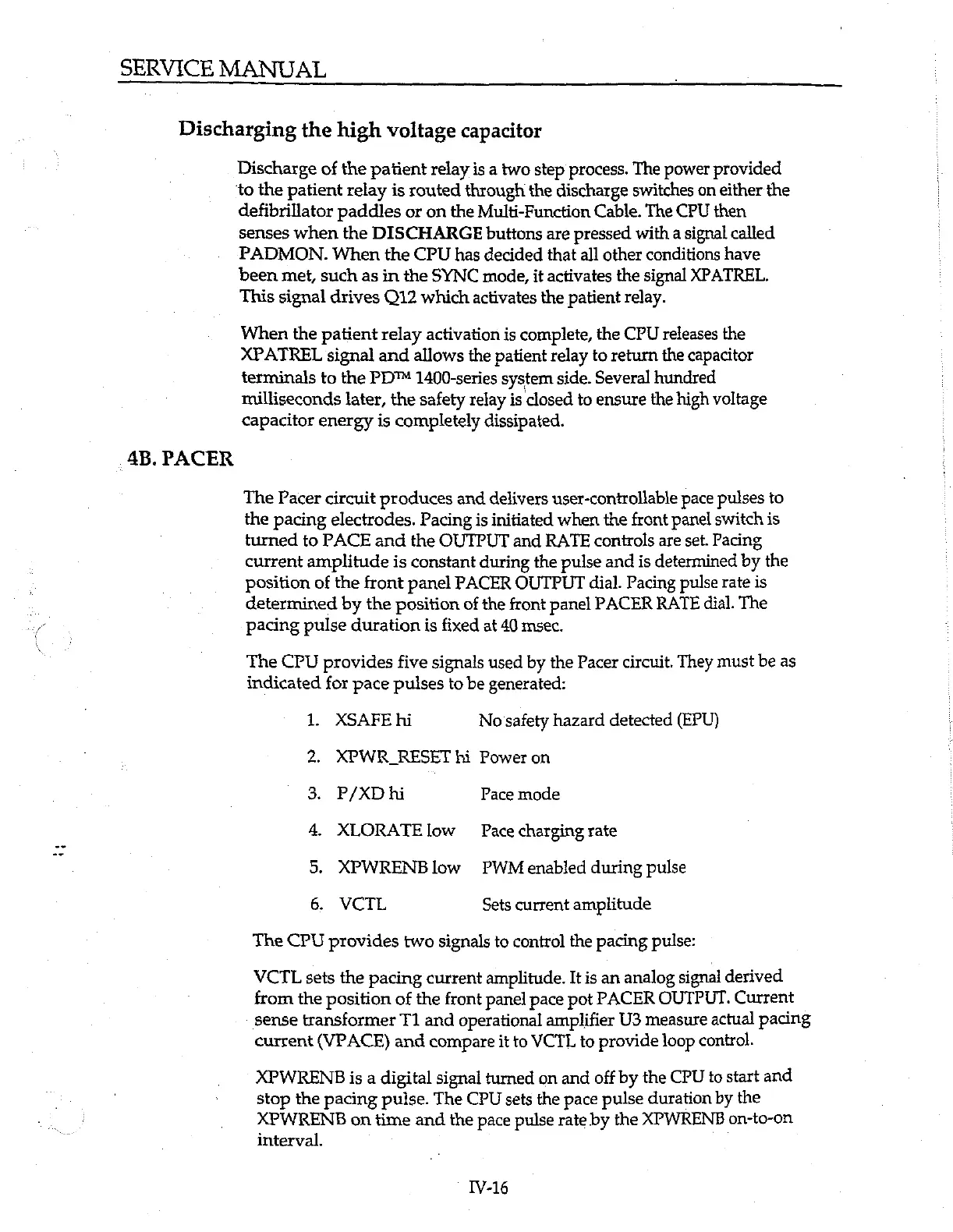

SERVICE
MANUAL
Discharging
the
high
voltage
capacitor
Discharge
of
the
patient
relay
is
a
two
step
process.
The
power
provided
‘to
the
patient
relay
is
routed
through
the
discharge
switches
on
either
the
defibrillator
paddles
or
on
the
Multi-Function
Cable.
The
CPU
then
senses
when
the
DISCHARGE
buttons
are
pressed
with
a
signal
called
PADMON.
When
the
CPU
has
decided
that
all
other
conditions
have
been
met,
such
as
in
the
SYNC
mode,
it
activates
the
signal
XPATREL.
This
signal
drives
Q12
which
activates
the
patient
relay.
When
the
patient
relay
activation
is
complete,
the
CPU
releases
the
XPATREL
signal
and
allows
the
patient
relay
to
return
the
capacitor
terminals
to
the
PD™
1400-series
system
side.
Several
hundred
milliseconds
later,
the
safety
relay
is
closed
to
ensure
the
high
voltage
capacitor
energy
is
completely
dissipated.
4B.
PACER
The
Pacer
circuit
produces
and
delivers
user-controllable
pace
pulses
to
the
pacing
electrodes.
Pacing
is
initiated
when
the
front
panel
switch
is
turned
to
PACE
and
the
OUTPUT
and
RATE
controls
are
set.
Pacing
current
amplitude
is
constant
during
the
pulse
and
is
determined
by
the
position
of
the
front
panel
PACER
OUTPUT
dial.
Pacing
pulse
rate
is
determined
by
the
position
of
the
front
panel
PACER
RATE
dial.
The
pacing
pulse
duration
is
fixed
at
40
msec.
The
CPU
provides
five
signals
used
by
the
Pacer
circuit.
They
must
be
as
indicated
for
pace
pulses
to
be
generated:
1.
XSAFE
hi
No
safety
hazard
detected
(EPU)
2.
XPWR
RESET
hi
Power
on
3.
P/XD
hi
Pace
mode
4.
XLORATE
low
Pace
charging
rate
5.
XPWRENB
low
PWM
enabled
during
pulse
6.
VCTL
Sets
current
amplitude
The
CPU
provides
two
signals
to
control
the
pacing
pulse:
VCTL
sets
the
pacing
current
amplitude.
It is
an
analog
signal
derived
from
the
position
of
the
front
panel pace
pot
PACER
OUTPUT.
Current
sense
transformer
T1
and
operational
amplifier
U3
measure
actual
pacing
current
(VPACE)
and
compare
it
to
VCTL
to
provide
loop
control.
XPWRENB
is
a
digital
signal
turned
on
and
off
by
the
CPU
to
start
and
stop
the
pacing
pulse.
The
CPU
sets
the
pace
pulse
duration
by
the
XPWRENB
on
time
and
the
pace
pulse
rate
by
the
XPWRENB
on-to-on
interval.
IV-16
