ZOLL PD 2000 - Diagnostics Mode Tests

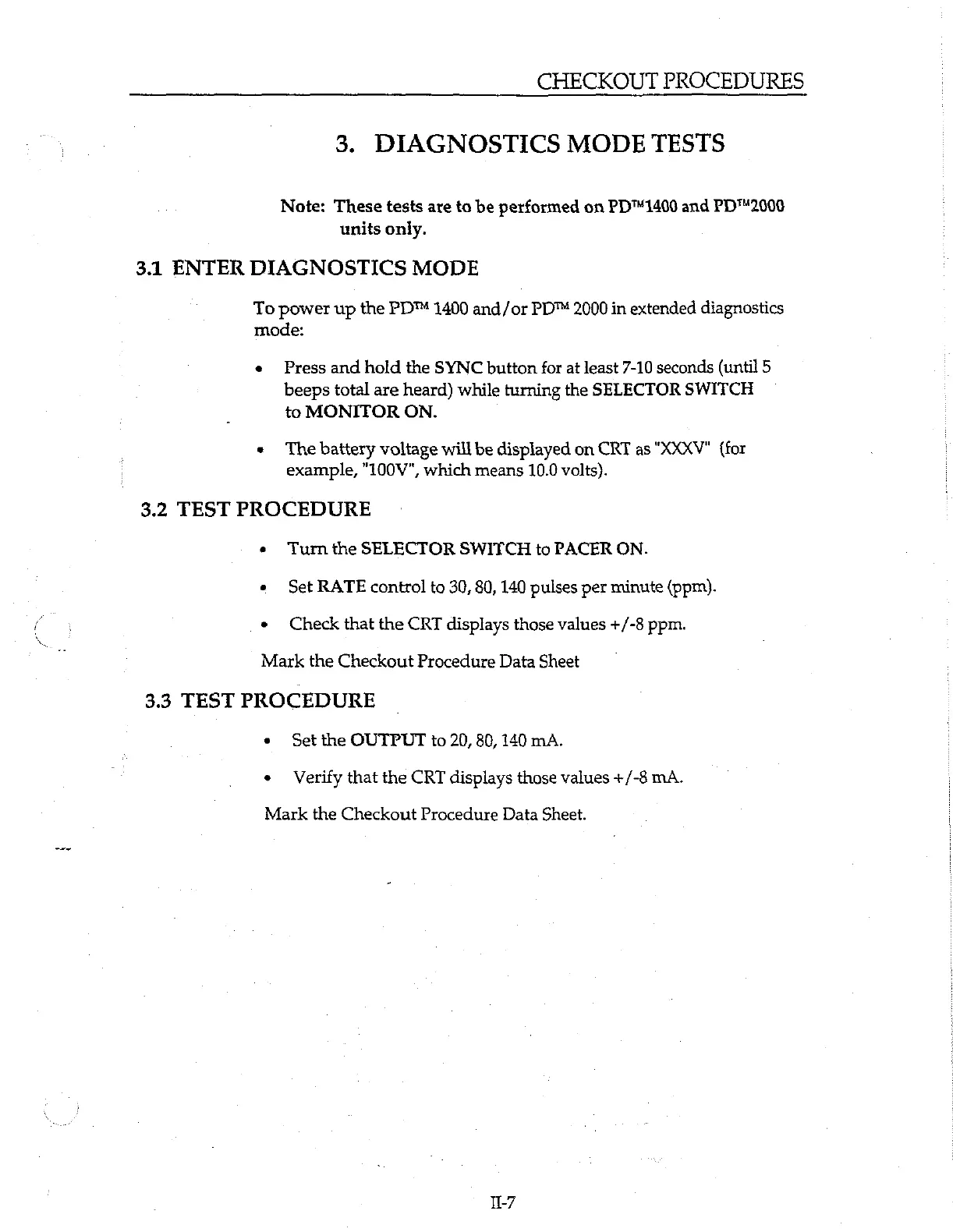

CHECKOUT PROCEDURES
3. DIAGNOSTICS MODE TESTS
Note: These tests are to be performed on PD™1400 and PD™2000
units only.
3.1 ENTER DIAGNOSTICS MODE
To power up the PD™ 1400 and/or PD™ 2000 in extended diagnostics
mode:
e Press and hold the SYNC button for at least 7-10 seconds (until 5
beeps total are heard) while turning the SELECTOR SWITCH
to MONITOR ON.
« The battery voltage will be displayed on CRT as "XXXV" (for
example, "100V", which means 10.0 volts).
3.2 TEST PROCEDURE
。 Turn the SELECTOR SWITCH to PACER ON.
* Set RATE control to 30, 80, 140 pulses per minute (ppm).
+ Check that the CRT displays those values +/-8 ppm.
Mark the Checkout Procedure Data Sheet
3.3 TEST PROCEDURE
+ Set the OUTPUT to 20, 80, 140 mA.
* Verify that the CRT displays those values +/-8 mA.
Mark the Checkout Procedure Data Sheet.
1-7
