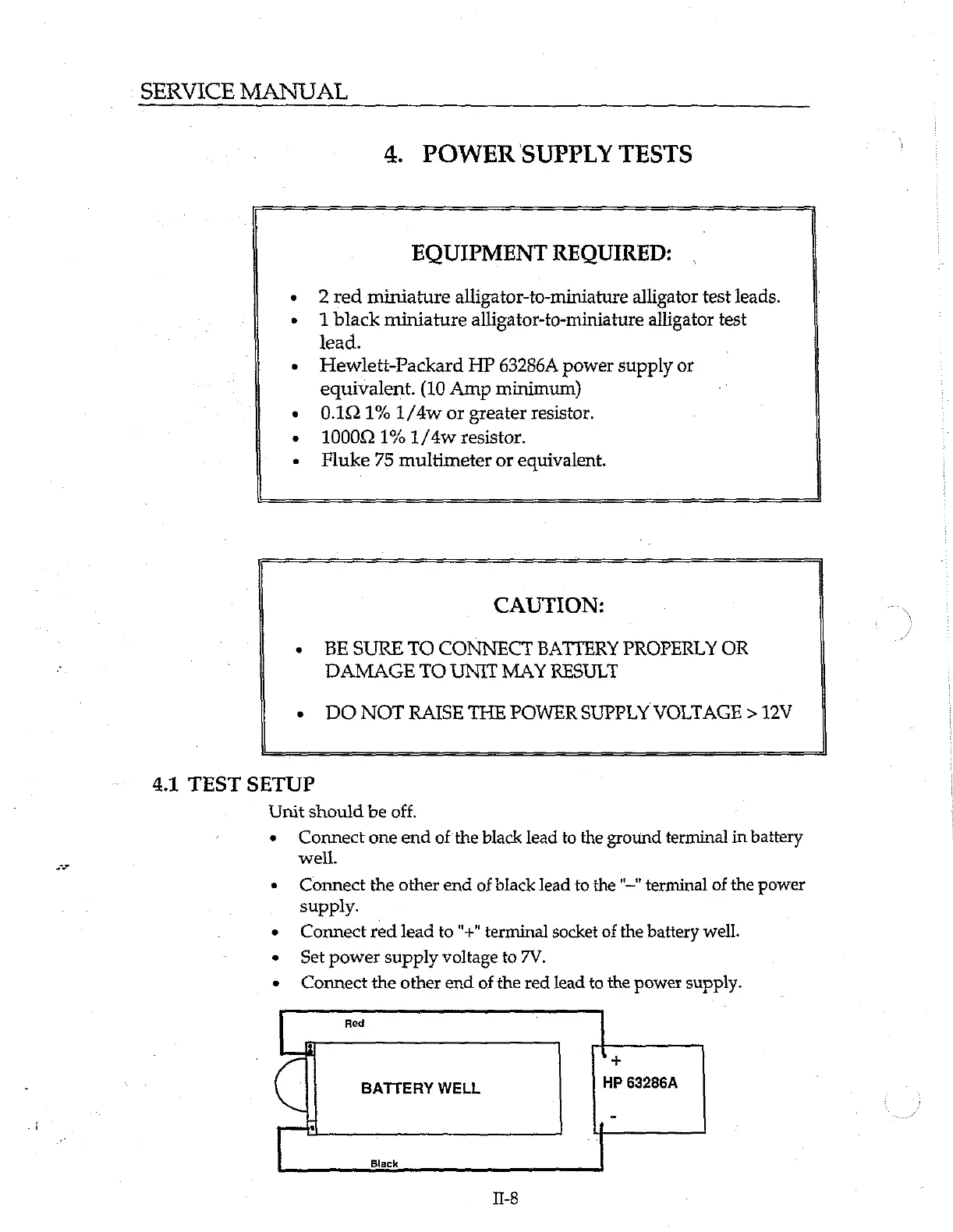

SERVICE
MANUAL
4.
POWER
SUPPLY
TESTS
EQUIPMENT
REQUIRED:
・
2red
miniature
alligator-to-miniature
alligator
test
leads.
»
1
black
miniature
alligator-to-miniature
alligator
test
lead.
»
Hewlett-Packard
HP
63286A
power
supply
or
equivalent.
(10
Amp
minimum)
«
0.10
1%
1/4w
or
greater
resistor.
+
10002
1%
1/4w
resistor.
e
Fluke
75
multimeter
or
equivalent.
CAUTION:
+
BE
SURE
TO
CONNECT
BATTERY
PROPERLY
OR
DAMAGE
TO
UNIT
MAY
RESULT
«
DO
NOT
RAISE
THE
POWER
SUPPLY
VOLTAGE
>
12V
4.1
TEST
SETUP
Unit
should
be
off.
Connect
one
end
of'the
black
lead
to
the
ground
terminal
in
battery
well.
Connect
the
other
end
of
black
lead
to
the
"-"
terminal
of
the
power
supply.
Connect
red
lead
to
"+"
terminal
socket
of
the
battery
well.
Set
power
supply
voltage
to
7V.
Connect
the
other
end
of
the
red lead
to
the
power
supply.
Red
+
BATTERY
WELL
HP
63286A
Black
1-8
