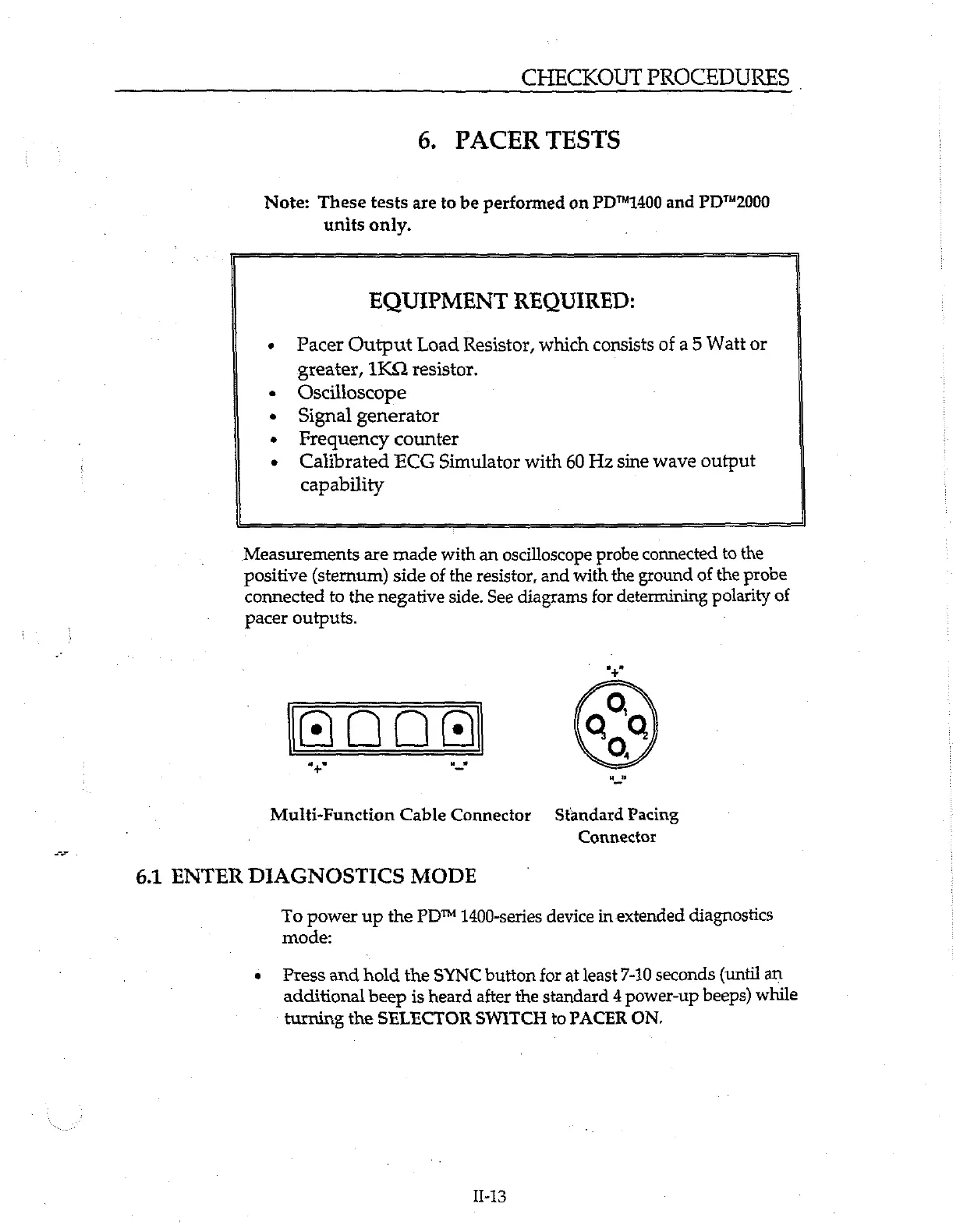

6. PACER TESTS
Note: These tests are to be performed on PD™1400 and PD™2000
units only.
EQUIPMENT REQUIRED:
e Pacer Output Load Resistor, which consists of a 5 Watt or
greater, 1KQ resistor.
« Oscilloscope
* Signal generator
» Frequency counter
» Calibrated ECG Simulator with 60 Hz sine wave output
capability
Measurements are made with an oscilloscope probe connected to the
positive (sternum) side of the resistor, and with the ground of the probe
connected to the negative side. See diagrams for determining polarity of
pacer outputs.
+
о
MOO a a
4
о
Multi-Function Cable Connector Standard Pacing
Connector
6.1 ENTER DIAGNOSTICS MODE
To power up the PD™ 1400-series device in extended diagnostics
mode:
+ Press and hold the SYNC button for at least 7-10 seconds (until an
additional beep is heard after the standard 4 power-up beeps) while
turning the SELECTOR SWITCH to PACER ON.
