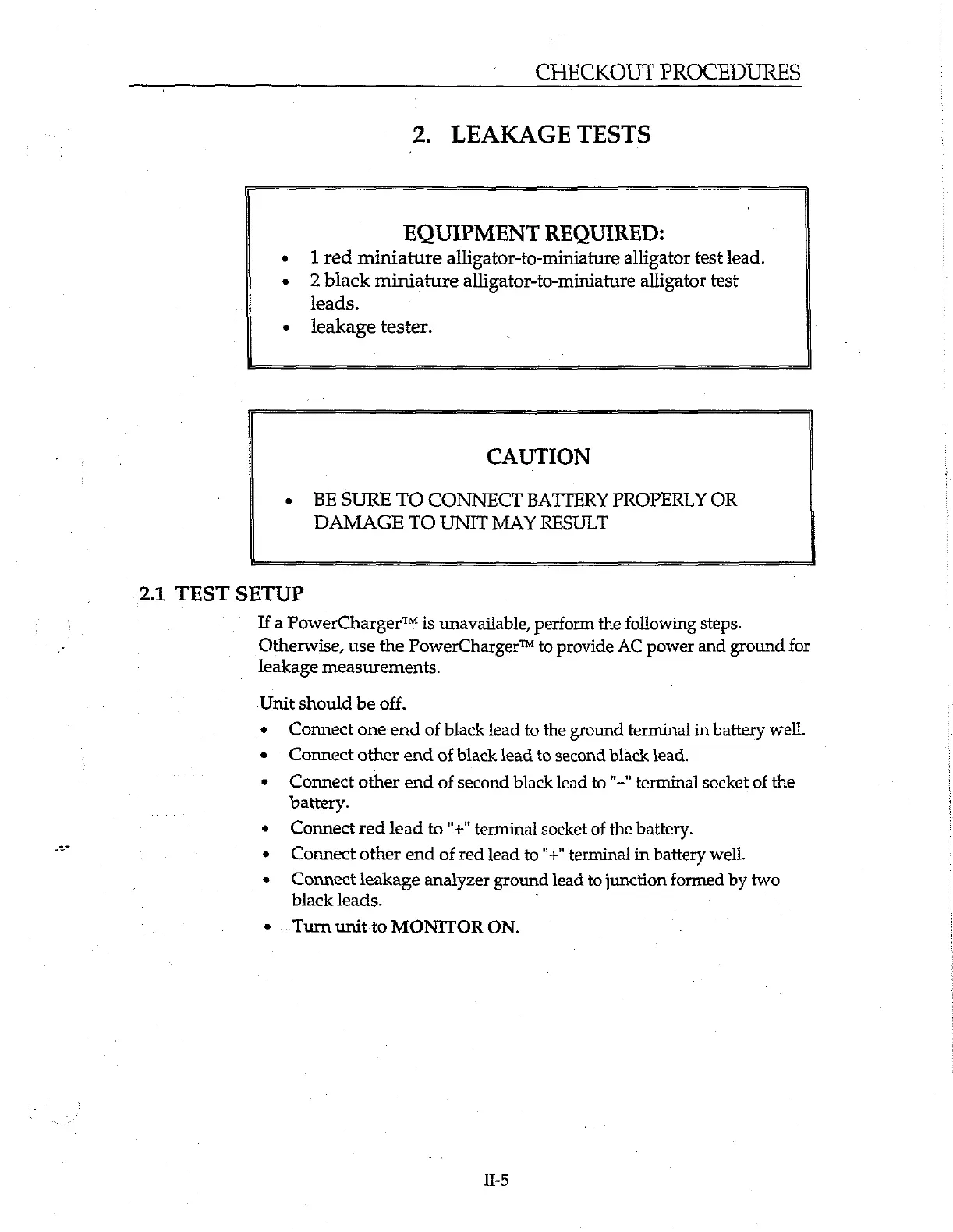

CHECKOUT
PROCEDURES
2.
LEAKAGE
TESTS
EQUIPMENT
REQUIRED:
*
1red
miniature
alligator-to-miniature
alligator
test
lead.
«
2
black
miniature
alligator-to-miniature
alligator
test
leads.
e
leakage
tester.
CAUTION
e
BESURE
TO
CONNECT
BATTERY
PROPERLY
OR
DAMAGE
TO
UNIT
MAY
RESULT
2.1
TEST
SETUP
If
a
PowerCharger™
is
unavailable,
perform
the
following
steps.
Otherwise,
use
the
PowerCharger™
to
provide
AC
power
and
ground
for
_
leakage
measurements.
Unit
should
be
off.
Connect
one
end
of
black
lead
to
the
ground
terminal
in
battery
well.
Connect
other
end
of
black
lead
to
second
black
lead.
Connect
other
end
of
second
black
lead
to
"-"
terminal
socket
of
the
battery.
Connect
red
lead
to
"+"
terminal
socket
of
the
battery.
Connect
other
end
of
red
lead
to
"+"
terminal
in
battery
well.
Connect
leakage
analyzer
ground
lead
to
junction
formed
by
two
black
leads.
`
Turn
unit
to
MONITOR
ОМ.
1-5
