SERVICE MANUAL
Mark the Checkout Procedure Data Sheet.

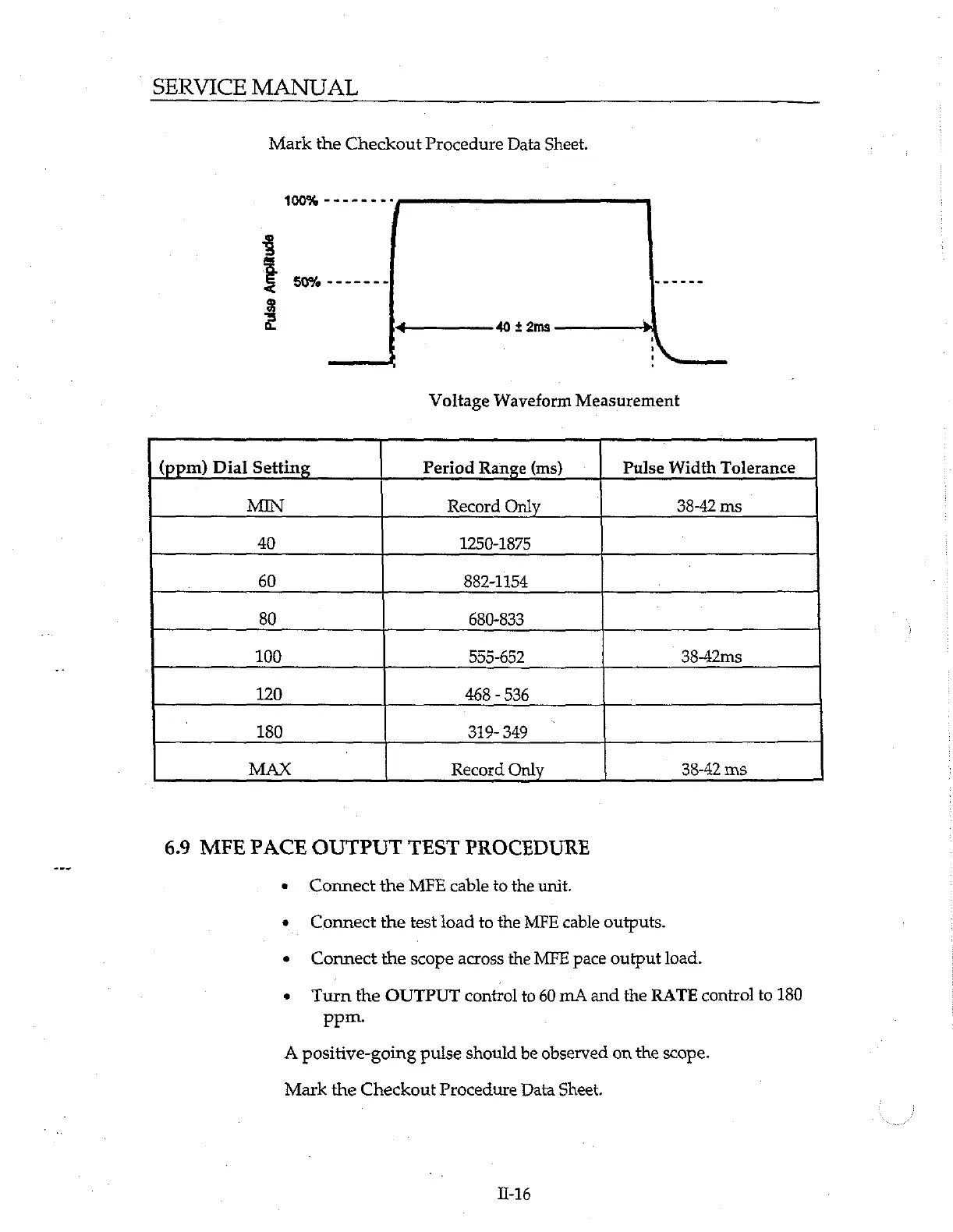

Voltage Waveform Measurement
(ppm) Dial Setting Period Range (ms) Pulse Width Tolerance
MIN Record Only 38-42 ms
40 1250-1875
60 882-1154
80 680-833
100 555-652 38-42ms
120 468 - 536
180 319- 349
MAX | Record Only 38-42 ms
6.9 MFE PACE OUTPUT TEST PROCEDURE
e Connect the MFE cable to the unit.
+ Connect the test load to the MFE cable outputs.
‧ Connect the scope across the MFE pace output load.
+ Turn the OUTPUT control to 60 mA and the RATE control to 180
ppm.
A positive-going pulse should be observed on the scope.
Mark the Checkout Procedure Data Sheet.
