ZONEMASTER MAXIPOINT V2 DAMPER CONTROL SYSTEM - Installation Manual
5
Main module and extension module can be located in different positions
and connected via a cable with left latched plugs on both ends as shown
inFigure3.Touchpadisconnectedtothe‘T’portonmainmoduleusinga
cable with left latched plugs.
Up to 4 touchpads can be joined in a system. The 4 touchpads are
connected to each other with a double left latched adaptor.

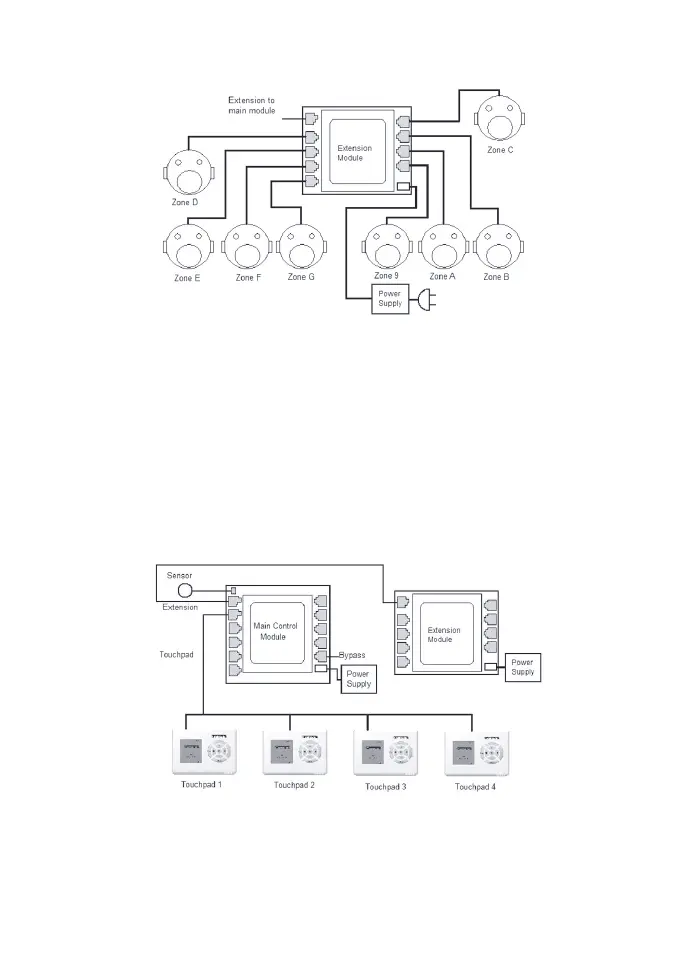

Figure 2: MaxiPoint V2 with Extension Module and 8 Zone Ports
Figure 3: MaxiPoint V2 with Main Control Module
and Extension Module, 4 Touchpads and 16 zone
ports (Dampers not shown)
