36

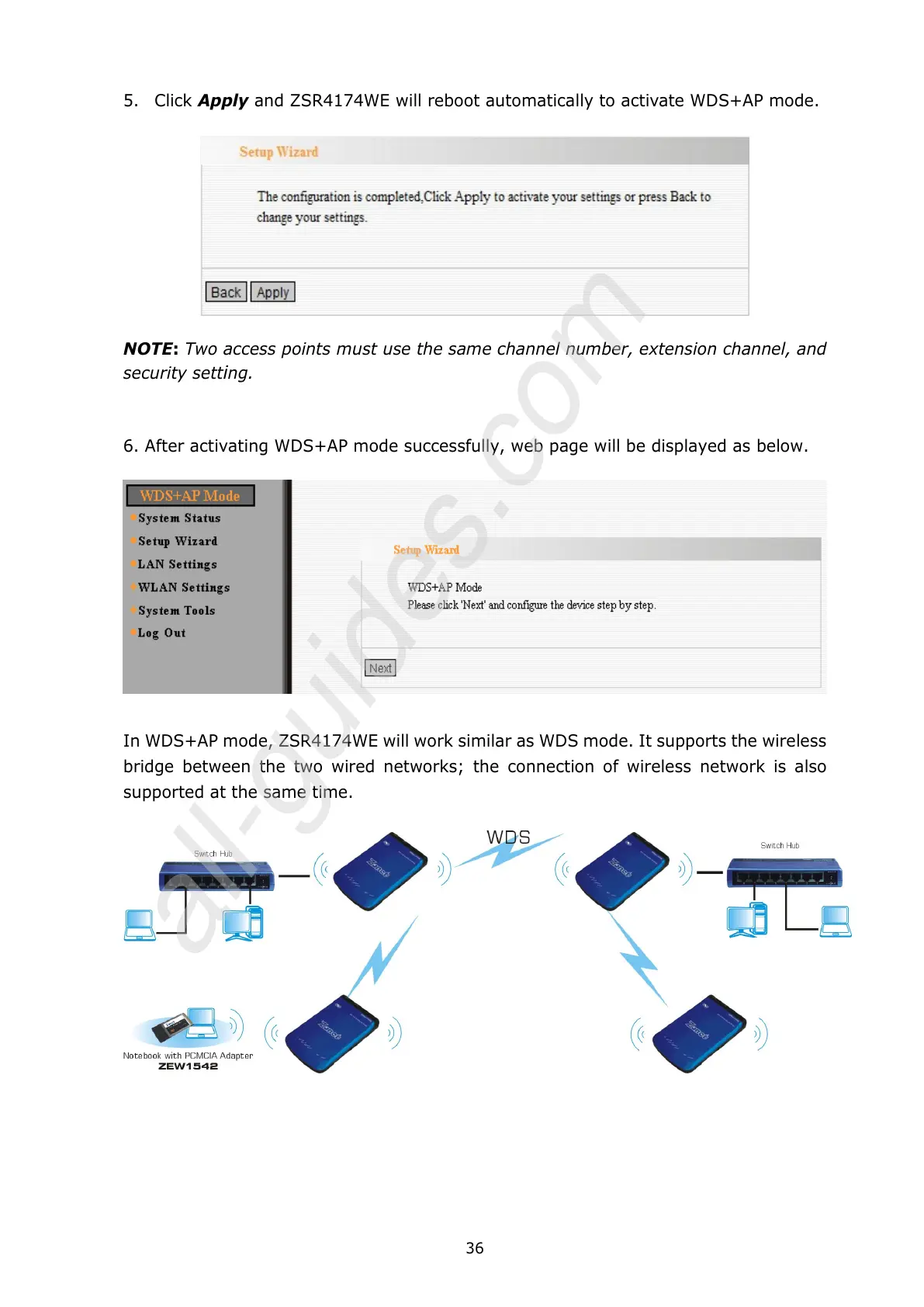

5. Click Apply and ZSR4174WE will reboot automatically to activate WDS+AP mode.
NOTE: Two access points must use the same channel number, extension channel, and
security sett
i
ng.
6. After activating WDS+AP mode successfully, web page will be displayed as below.
In WDS+AP mode, ZSR4174WE will work similar as WDS mode. It supports the wireless
bridge between the two wired networks; the connection of wireless network is also
supported at the same time.
