Zoom 8080 - EQ Module

This is an equalizer module for providing tonal compensation.
This parametric equalizer allows boost and cut in three bands (high, mid, low). Q is fixed for each band.
3-EQ: 3-Band Equalizer
■
54

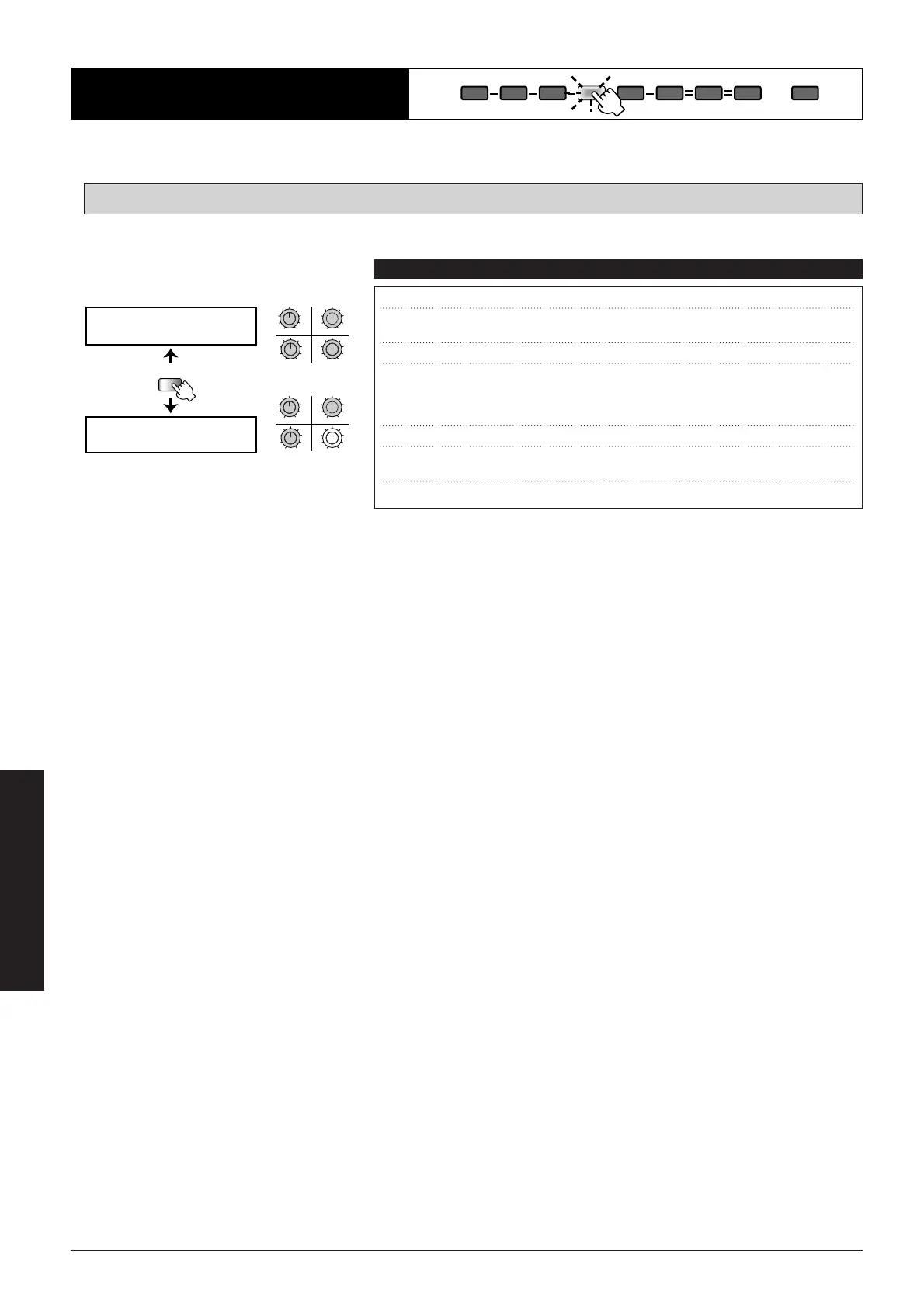

Effect Types and Parameters
COMP EFF1 DIST EQ EFF2 EFF3 DLY REV TOTAL
EQ Module
UTILITY
PAGE
3-EQ HiG= Hif=
MdG= Mdf=
3-EQ LoG= Lof=
LVL=
34
12
MAXMIN
MAXMINMAXMIN
MAXMIN
qw
er
34
12
MAXMIN
MAXMINMAXMIN
MAXMIN
t
u
y
PAGE 1
PAGE 2
qw
er
t
u
y
q HiG (High Gain) Provides boost/cut for the high frequency range. -12 – +12
w Hif (High Frequency) Sets the boost/cut frequency for the high frequency
range. 5.0 , 6.3
e MdG (Middle Gain) Provides boost/cut for the mid frequency range. -12 – +12
r Mdf 200
(Middle Frequency) Sets the boost/cut frequency for the mid frequency , 315, 500,
range. 630, 800 ,
1.2, 2.0, 3.1
t LoG (Low Gain) Provides boost/cut for the low frequency range. -12 – +12
y Lof (Low Frequency) Sets the boost/cut frequency for the low frequency
range. 80 , 125
u LVL (Level) Sets the output level. -18, -16. ... – +5 , + 6
Parameters Comment Values
