Names and functions of parts

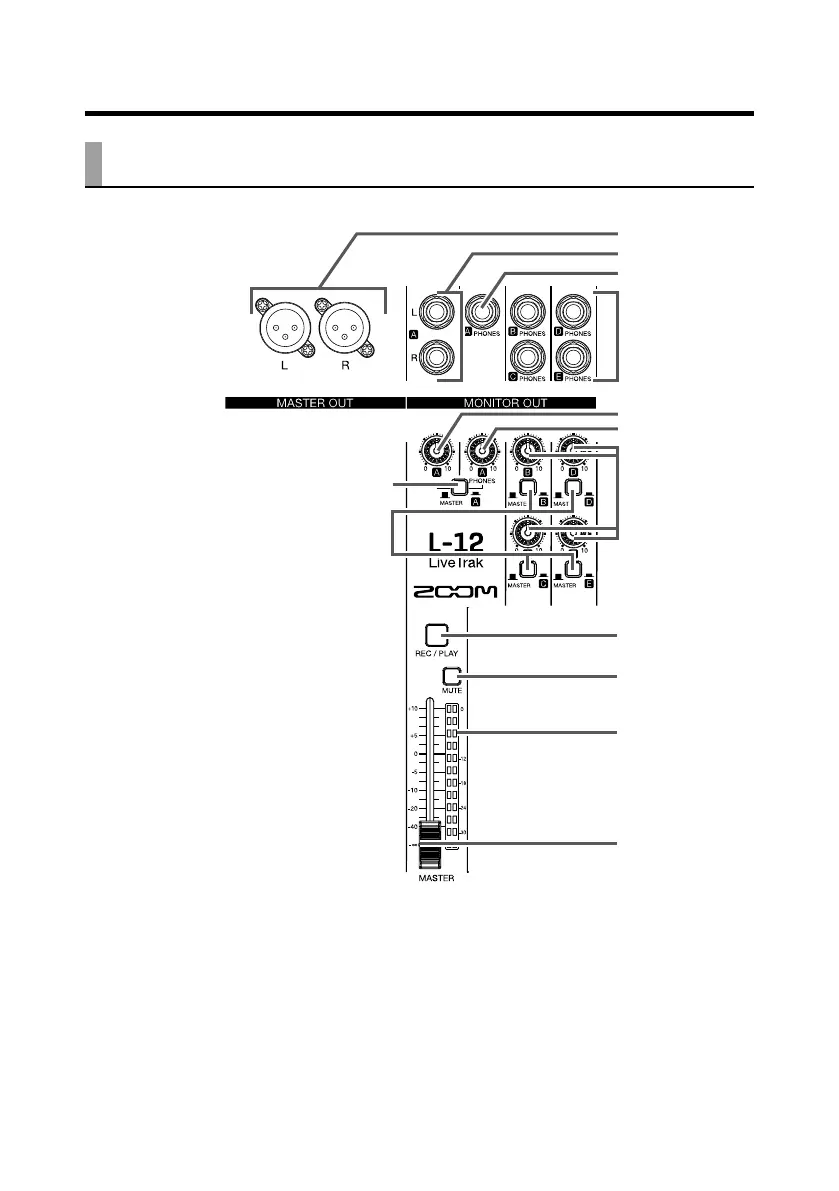

Output section
⑧
⑨
1
MASTER OUT jacks
These jacks output signals after volume adjust-
ment by the master fader.
Connect them to a power amplier, a PA system
or speakers with built-in ampliers, for example.
These support balanced output with XLR con-
nectors (2 HOT).
2
MONITOR OUT A jacks
These jacks output signals after volume adjust-
ment by the MONITOR OUT A knob.
You can, for example, connect a monitoring sys-
tem for the mixer operator here.
These support balanced 1/4-inch jack phone out-
put.
