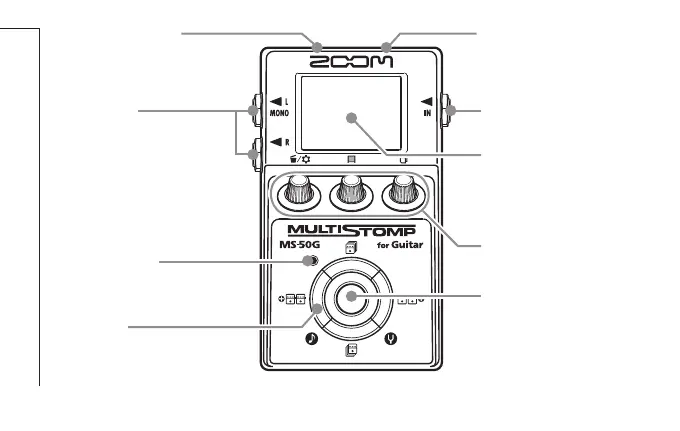

Part Names
Part Names
DC9V AC adapter jack
To power the unit from an outlet,
connect an AD-16 adapter here
(
!
P6).
OUTPUT jacks
Connect to an amp or another
effector.
Use the MONO jack for a mono
connection.
Display
Shows the currently selected effect
and various other screens (
!
P7).
USB connector
Use to connect to a computer and
update firmware (
!
P23).
INPUT jack
Connect a guitar.
Footswitch
Tur n s th e effec t sh ow n on the
display ON and OFF (
!
P8).
Press and hold for 1 second to open
the Tuner or Tap Tempo (
!
P14, 16).
ON/OFF indicator
Lights when the current effect is ON.
Does not light when the effect is
OFF
(
!
P8).
Cursor keys
(
!
P5)
Parameter knobs
(
!
P5)
