Zoom MultiStomp MS-50G User Manual

6

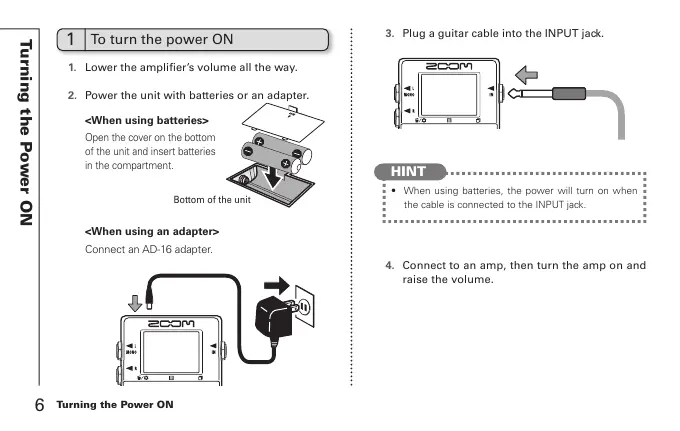

Turning the Power ON
Turning the Power ON
1. Lower the amplifier’s volume all the way.
2. Power the unit with batteries or an adapter.
3. Plug a guitar cable into the INPUT jack.
4. Connect to an amp, then turn the amp on and
raise the volume.
1
To turn the power ON
Open the cover on the bottom
of the unit and insert batteries
in the compartment.
Connect an AD-16 adapter.
<When using batteries>
<When using an adapter>
Bottom of the unit
HINT
t 8IFO VTJOHCBUUFSJFTUIFQPXFSXJMMUVSOPO XIFO
the cable is connected to the INPUT jack.

Zoom MultiStomp MS-50G Specifications

General

Simultaneous Effects	6
Display	LCD
Sampling Frequency	44.1 kHz
A/D Conversion	24-bit
D/A Conversion	24-bit
Patches	50
Input	1/4"
Output	1/4"
Power	9V DC
Weight	350 g (without batteries)
Frequency Response	20Hz - 20kHz
Power Supply	Batteries: AA/LR6 battery x 2
Battery Life	Approx. 6 hours (alkaline batteries)
Effect Types	Delay, Reverb, Modulation, Distortion, EQ, Filter, Dynamics
