Windows 95/98/ME
02060320.fm 11.12.07/Ch,Kx Network T8 Control Unit – Version 2.0 4 - 13

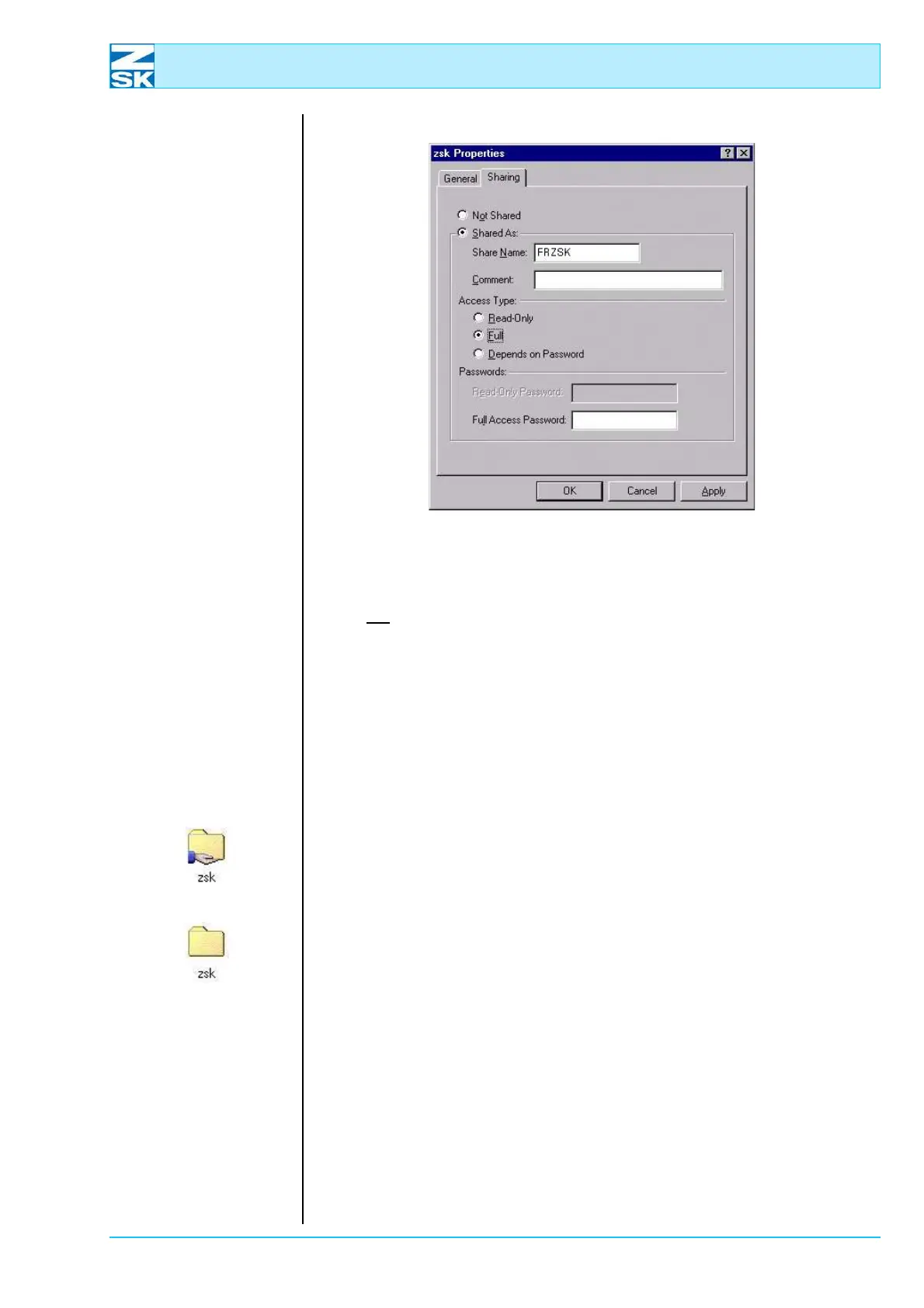

Figure 4.22:
Windows 95/98/ME,
Zsk Properties,
Sharing tab
Enable the options Shared As and Access Type Full.
•Do not
enter any Passwords.
The suggested share name ZSK is to be changed to FRZSK in this example.
Confirm the settings by clicking
[Apply] and then [OK].
The ZSK directory on hard disk C can now be accessed by another PC via the net-
work. This is illustrated by the change in the directory symbol in the overview of
files and directories on hard disk C.
- Enabled for network:
- Not enabled for network:
00491503
00490517
00490518
