Zte ZXR10 ZSR V2 - UDP-Type SQA Configuration Example; Figure 13-4 UDP-Type SQA Configuration Example

ZXR10ZSRV2CongurationGuide(SystemManagement)
13.3.4UDP-TypeSQAConfigurationExample
CongurationDescription
AsshowninFigure13-4,thereisalinkbetweenR1andR3.PacketsbetweenR1andR3
canbeforwardedproperly.EnableamonitoringportofSQA-UDP-serveronR3.

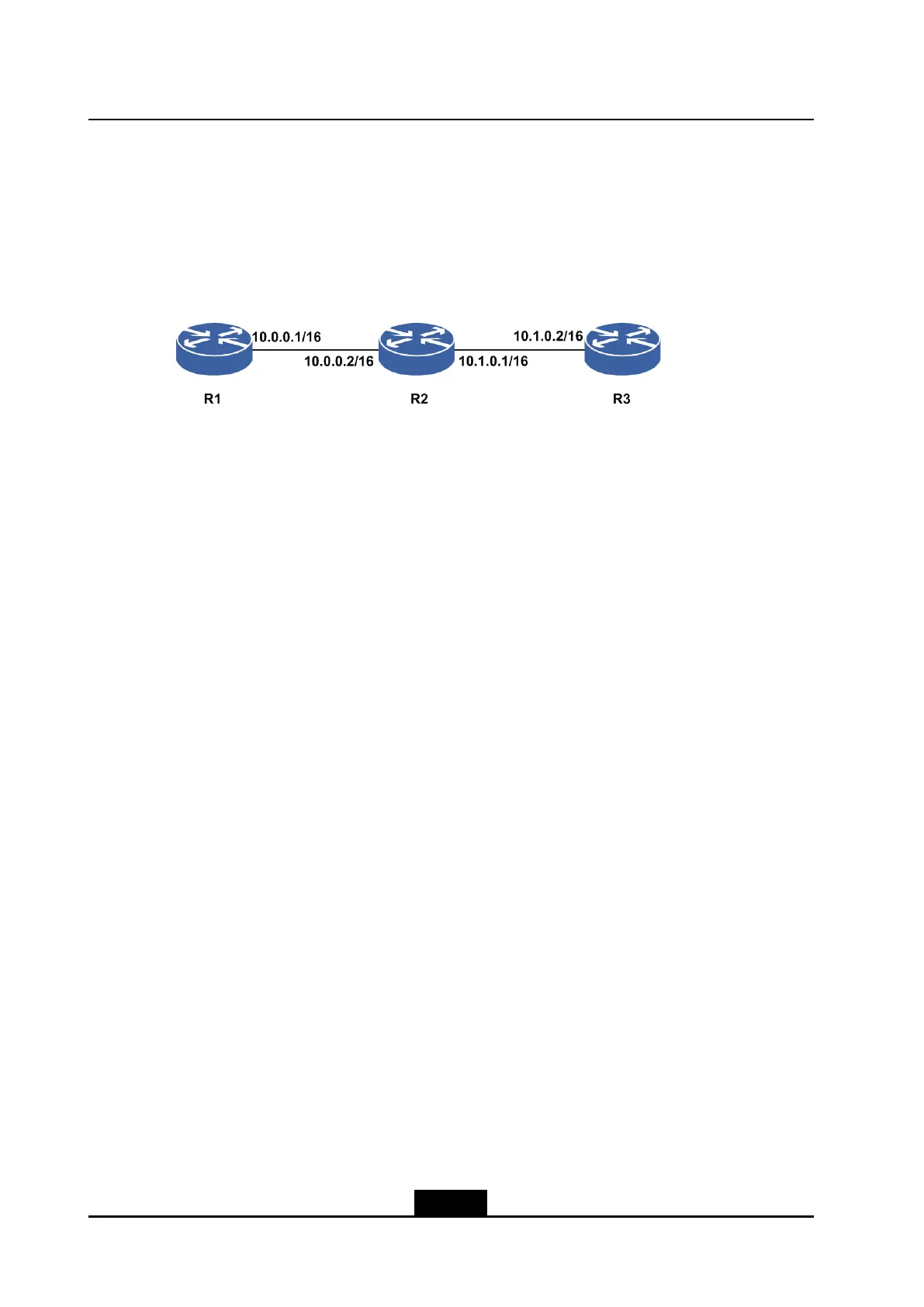

Figure13-4UDP-TypeSQACongurationExample
CongurationFlow
1.CreateanSQAtestinstance.
2.EntertheSQAtestinstance,andconguretheUDPtestattributefortheinstance,
suchastheUDPtestdestinationaddressandportnumber.
3.SettheSQAteststarttimeasnoworatascheduledtime.
4.Checkthetestresult.
CongurationCommand
ThecongurationofR3:
R3(config)#sqa-udp-server10.1.0.210000
ThecongurationofR1:
R1(config)#sqa-test4
R1(config-sqa-4)#type-udp10.1.0.210000
R1(config-sqa-4)#sqa-beginnow
%Info757:Thesqatestisstartingnow,waitamomentfortestresult......
R1(config-sqa-4)#
CongurationVerication
Thecongurationandtestresultareshownbelow.
R1#showsqa-test4
testnumber:1
testtype:UDP
destinationIP:10.1.0.2
desitnationport:10000
size:50
intervaltime:100
repeat:1
sendtrap:disable
