Chapter 1 Introduction
LTE Series User’s Guide
21
1.5 Front and Bottom Panels
The LED indicators are located on the front (LTE7240-M403 / LTE3301-PLUS / LTE5388-M804 / LTE5398-M904
/ LTE3316-M604)/ the bottom panel (LTE7461-M602 / LTE7480-M804 / LTE7480-S905 / LTE7490-M904)/ the
rear panels (LTE5388-M804 / LTE5398-M904 / LTE3316-M604).
Front & Top Panels

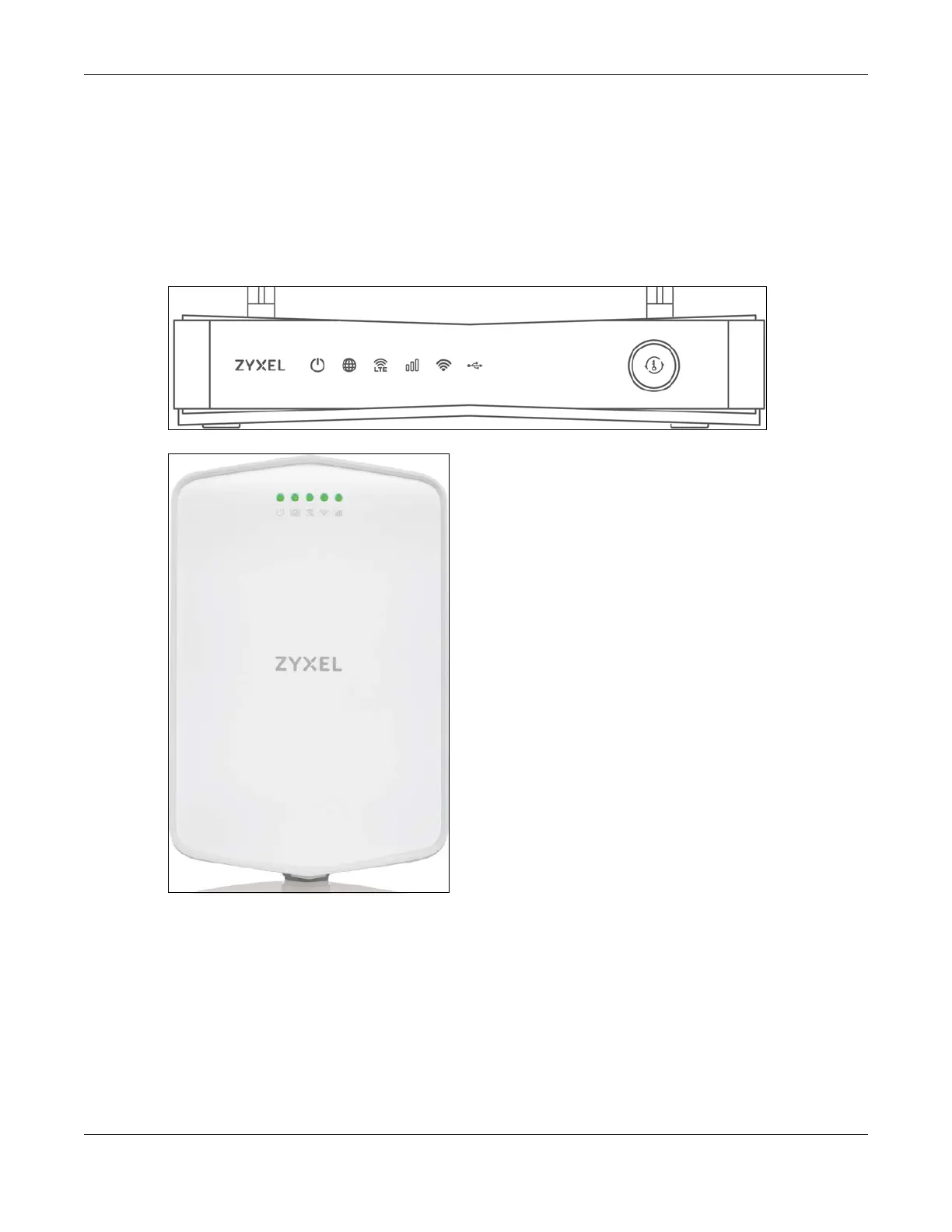

Figure 4 Front Panel (LTE3301-PLUS)
Figure 5 Front Panel (LTE7240-M403)
