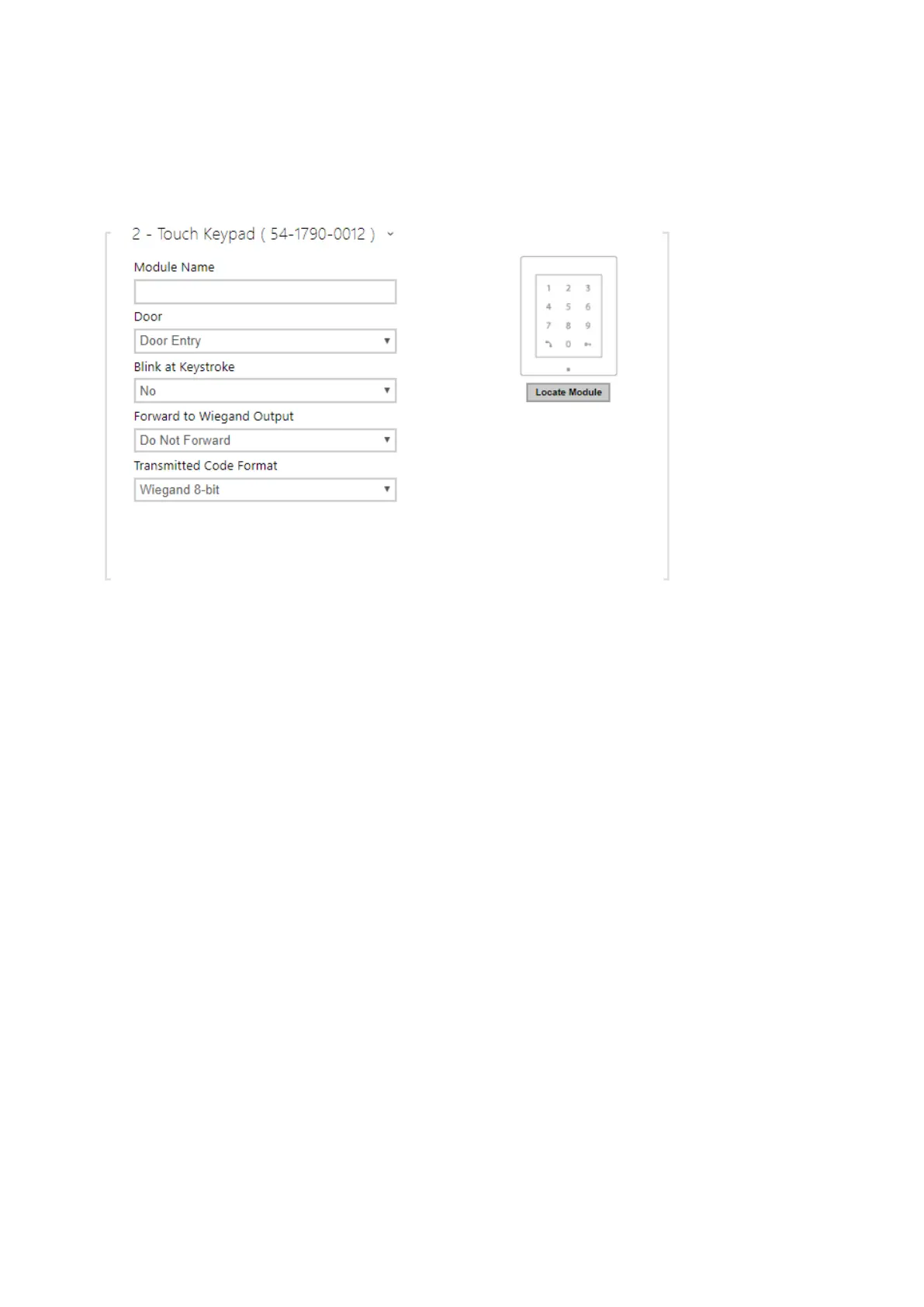

Touch Keypad Configuration
Module Name–set the module name for logging events from the touch keypad.
Door –set the reader direction (Door Entry, Door Exit) for the Attendance system
purposes.
Blink at Keystroke – set keystroke light signaling for noisy environments where acoustic
signals are difficult to hear.
Forward to Wiegand Output– seta group of Wiegand outputs to which all pressed keys
are to be forwarded.
Transmitted Code Format – select a 4bit or 8bit (higher security) format for the codes to
be transmitted.

2N IP series Specifications

General

Category	Intercom System
Network Interface	10/100 Mbps Ethernet
Connectivity	Ethernet
Integration	SIP
Ingress Protection	IP54
Operating Voltage	12V DC
Audio Codec	G.711
Supported Protocols	SIP, RTSP, HTTP, HTTPS
Supported Languages	Multiple
