3D Systems CubePro Original Instructions

Nylon/Flex
Nylon is compatible with Flex when printing multi-material parts.
• Nylon and Flex surfaces will adhere together. Mating surfaces do not need to be interlocked.
• To ensure proper adhesion, the level gap must be calibrated properly.
• Overlapping Nylon and Flex material may cause lament ow failures. Verify that the materials do not overlap.
REMOVING PARTS
To remove parts from the print pad, soak it in water for 5-10 minutes. This will enable you to remove the print easily without damaging
the bottom of the part.

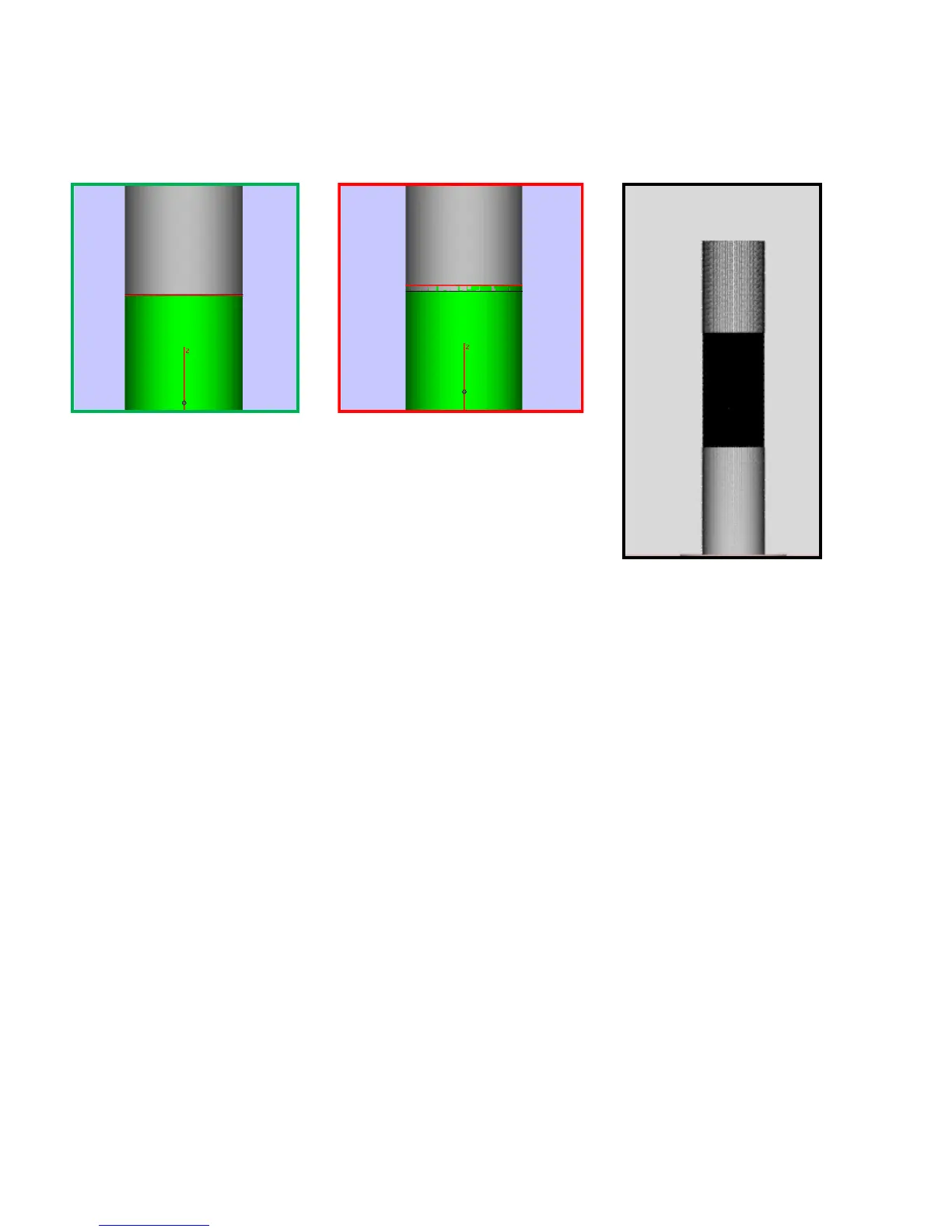

Surfaces meet but do
not overlap
Surfaces overlap
Nylon
Nylon
Flex

3D Systems CubePro Specifications

General

Product color	Black, White
Viewing window	Yes
Maximum extruder tip temperature	280 °C
Input current	6 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Layer thickness (max)	0.3 mm
Layer thickness (min)	0.07 mm
Layer thickness supported	0.2, 0.3 mm
Number of printing colors	3
Maximum build size (WxDxH)	- mm
Vertical print speed (max)	54000 mm/h
Minimum RAM	2 GB
Minimum processor speed	2 GHz
Mac operating systems supported	Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum display resolution requirement	1024 x 768 pixels
Ethernet LAN	-
Accuracy	1 %

Weight and Dimensions

Depth	581 mm
Width	566 mm
Height	606 mm
Weight	41000 g
