3D Systems CubePro Original Instructions

Leveling The Print Jet Nozzles
Tools Needed
• T10 Torx Driver
Level The Print Jets
SHOCK WARNING: EXERCISE CAUTION WHENEVER YOU ARE NEAR ELECTRICAL COMPONENTS.
WARNING: BEFORE SERVICING THESE COMPONENTS, ENSURE YOU ARE WEARING A WELL-GROUNDED
ELECTRO-STATIC DISCHARGE (ESD) STRAP. ESD PROTECTION IS REQUIRED.
WARNING: NEVER PULL ON WIRES TO DISCONNECT THE CONNECTORS. THIS COULD DAMAGE THE
WIRES AND THE CONNECTORS AND VOID THE MANUFACTURER’S WARRANTY.
The following procedure is intended to provide instructions about how to level print jets for printers with more than 1 print jet.

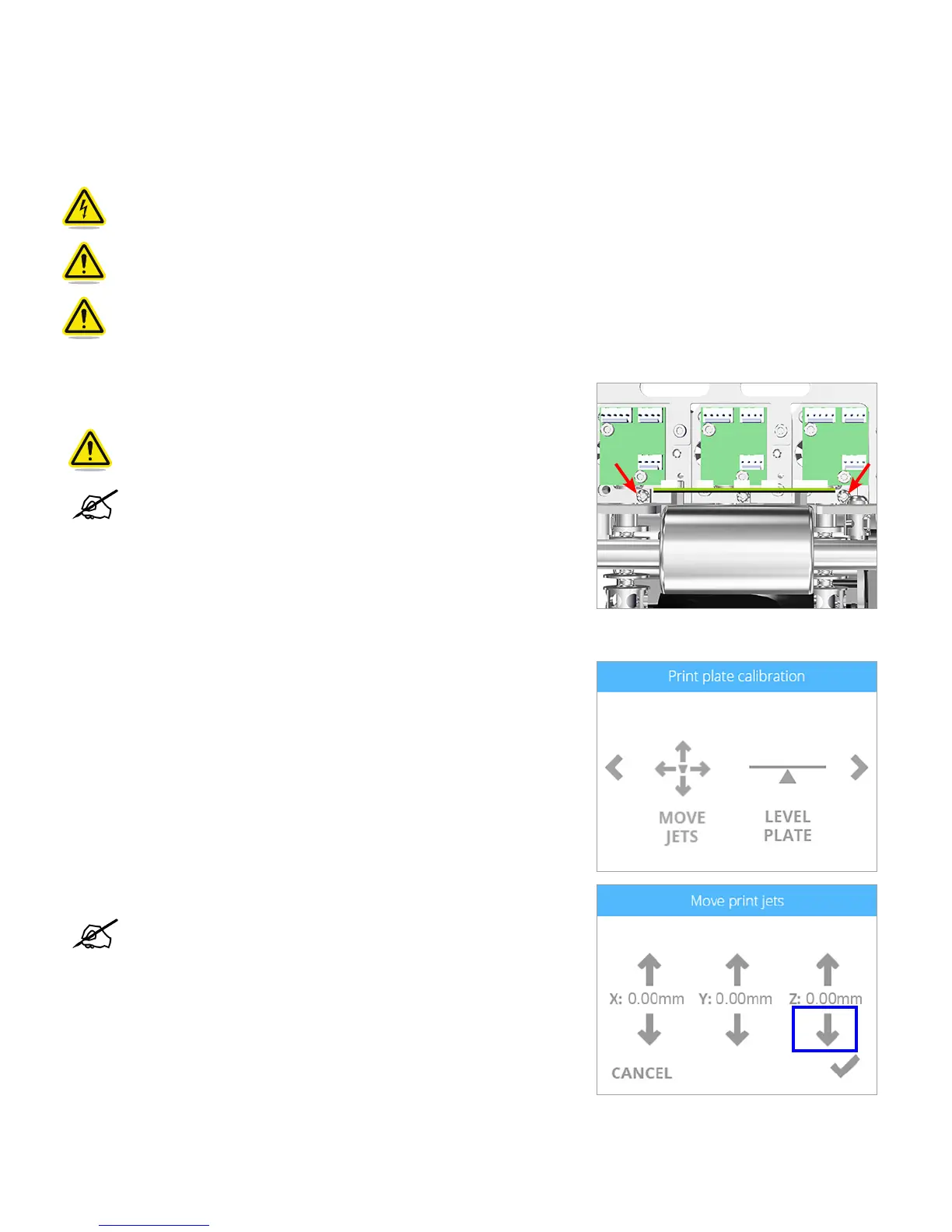

1. For printers with two (2) or three (3) print jets, loosen the T10 torx screws on
extruders 1 and 3.
CAUTION: There should be enough access to reach the torx
screws using an insulated torx driver. Exercise caution when
working around the PCBs.
NOTE: Print jet 2 should not need adjustments.
2. Connect the printer to utility power, turn on the main power switch and then turn
on the display.
3. Navigate to the Print Plate Calibration screen and select MOVE JETS.
4. Select the Z: down arrow until the display reads -0.50.
NOTE: For printers with 2 or three print jets, visually inspect
the gap between the nozzle tip of print jet 2 and the print pad. If
necessary, press the Z: down arrow until there is a gap.

3D Systems CubePro Specifications

General

Product color	Black, White
Viewing window	Yes
Maximum extruder tip temperature	280 °C
Input current	6 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Layer thickness (max)	0.3 mm
Layer thickness (min)	0.07 mm
Layer thickness supported	0.2, 0.3 mm
Number of printing colors	3
Maximum build size (WxDxH)	- mm
Vertical print speed (max)	54000 mm/h
Minimum RAM	2 GB
Minimum processor speed	2 GHz
Mac operating systems supported	Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum display resolution requirement	1024 x 768 pixels
Ethernet LAN	-
Accuracy	1 %

Weight and Dimensions

Depth	581 mm
Width	566 mm
Height	606 mm
Weight	41000 g
