Z-Gap - The Z-Gap is the distance between the print pad and the print jet nozzles. The Z-Gap should always be checked
and adjusted rst before the Level Gap.
Important
If either ABS or PLA materials are used to check nozzle level, the gap must be checked with the nylon single nozzle Level_Gap le.

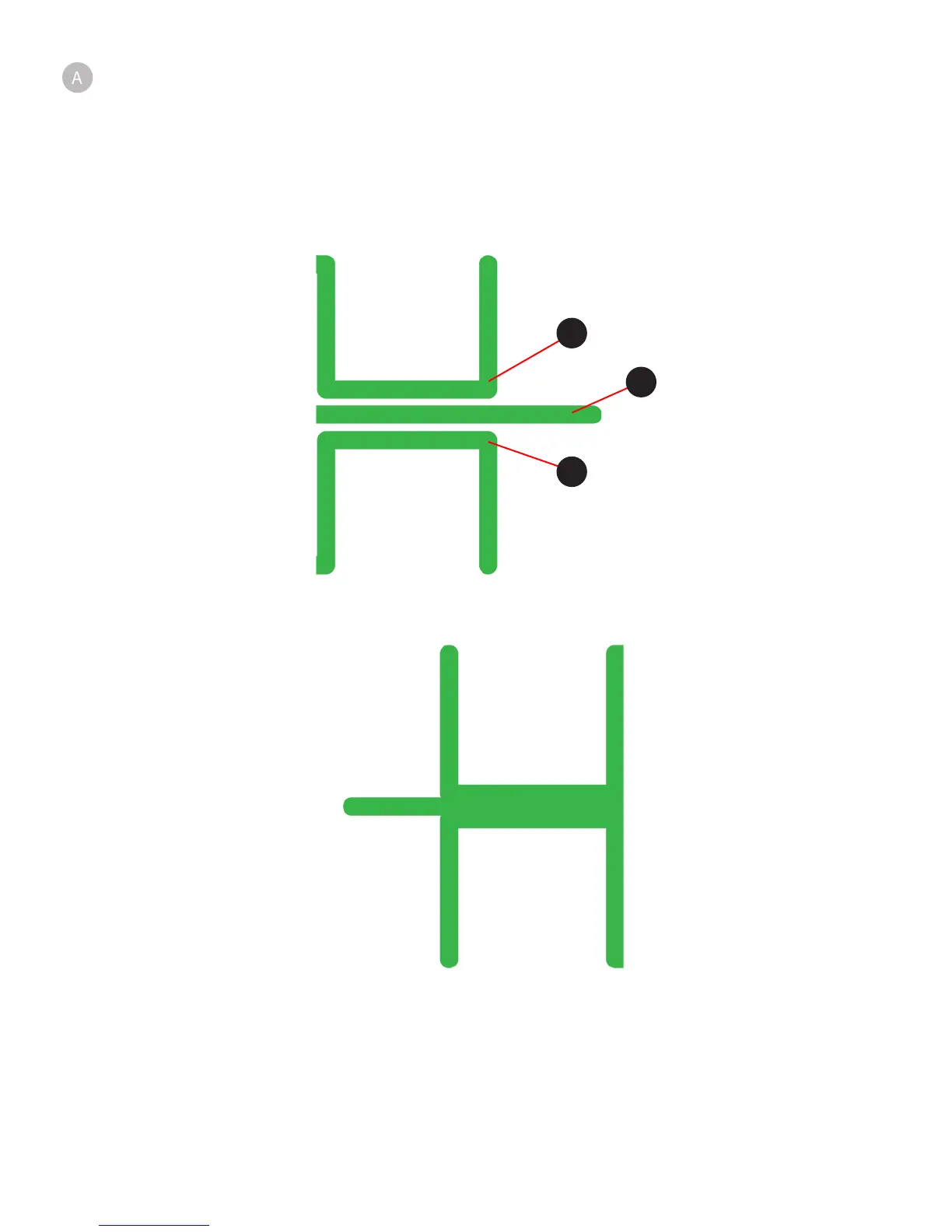

• When using NYL_LEVEL_GAP it is best to have the corner-plate level patterns contain a gap above and below the baseline.
• The gap for nylon is dierent than the gap for ABS and PLA materials. For best print results, the Z-gap for nylon should be slightly
more than the Z-gap for other materials when reading the open Z-gap print. This gap is found between the measurements lines (A)
and the baseline (B).
• The closed pattern should remain be closed.
A
A
B
To Next Page
