INF PRINTING BEST PRACTICES
VERIFY THE PRINT JET NOZZLE LEVEL
Leveling the print jet nozzles is very important to ensure quality prints especially after replacing a print jet, an extruder assembly or the
print pad.
The Print Jet Level Gap calibration le requires all cartridge bays to be loaded with the same material type cartridges.
NOTE: Ensure the le used matches the printer model and the installed print material type. All installed cartridges
must be of the same material type. (Ex. If the cartridge bays have ABS material cartridges installed, print the ABS
Level Gap calibration le.)
These les are available at www.cubify.com/cubepro/activate. The Level Gap Calibration les are available from the Calibration Files
download link in the Free Files section of the web page.
The le names are listed below:
PLA:
• noz12_PLA_LEVELGap.cubepro (This le is for printing PLA on a CubePro Duo)
• noz123_PLA_LEVELGap.cubepro (This le is for printing PLA on a CubePro Trio)
ABS:
• noz12_ABS_LEVELGap.cubepro (This le is for printing ABS on a CubePro Duo)
• noz123_PLA_LEVELGap.cubepro (This le is for printing ABS on a CubePro Trio)
Nylon:
• noz12_NYL_LEVELGap.cubepro (This le is for printing nylon on a CubePro Duo)
• noz123_NYL_LEVELGap.cubepro (This le is for printing nylon on a CubePro Trio)
Level Nozzle Calibration Print Overview

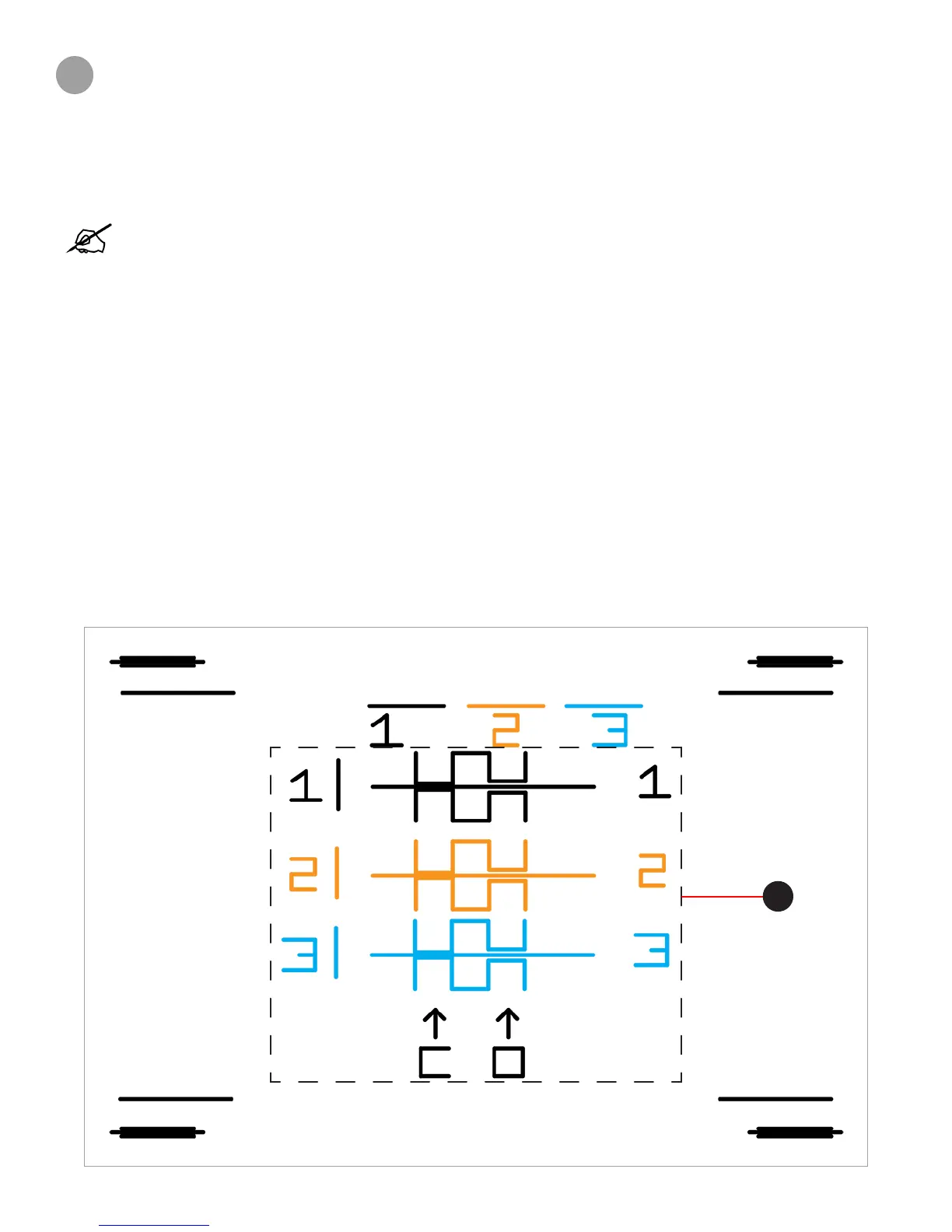

The following illustration demonstrates what you would see when the print jet nozzles are properly leveled.
A
