3Disc FireCR+ - Understanding Calibration Files

Service Manual FireCR
+
Computed Radiography Scanner
FireCR
+
| Calibration 11
Understanding the Cal-files:
Calibration files can be found in the software folder. Windows Photo Viewer can view the Cal-
files. We recommend that you open the “High Dose” calibration of each cassette size to verify an
artifact free calibration.
14 x 17 Cassette Calibration
10 x 12 Cassette Calibration
File
Description
File
Description
Cal0.tif
Scan Blank
Cal4.tif
Scan Blank
Cal1.tif
Scan Low Dose
Cal5.tif
Scan Low Dose
Cal2.tif
Scan Mid Dose
Cal6.tif
Scan Mid Dose
Cal3.tif
Scan High Dose
Cal7.tif
Scan High Dose
Section.dat
Cal0 - Cal3
compressed together
Section2.dat
Cal4 - Cal7
compressed together

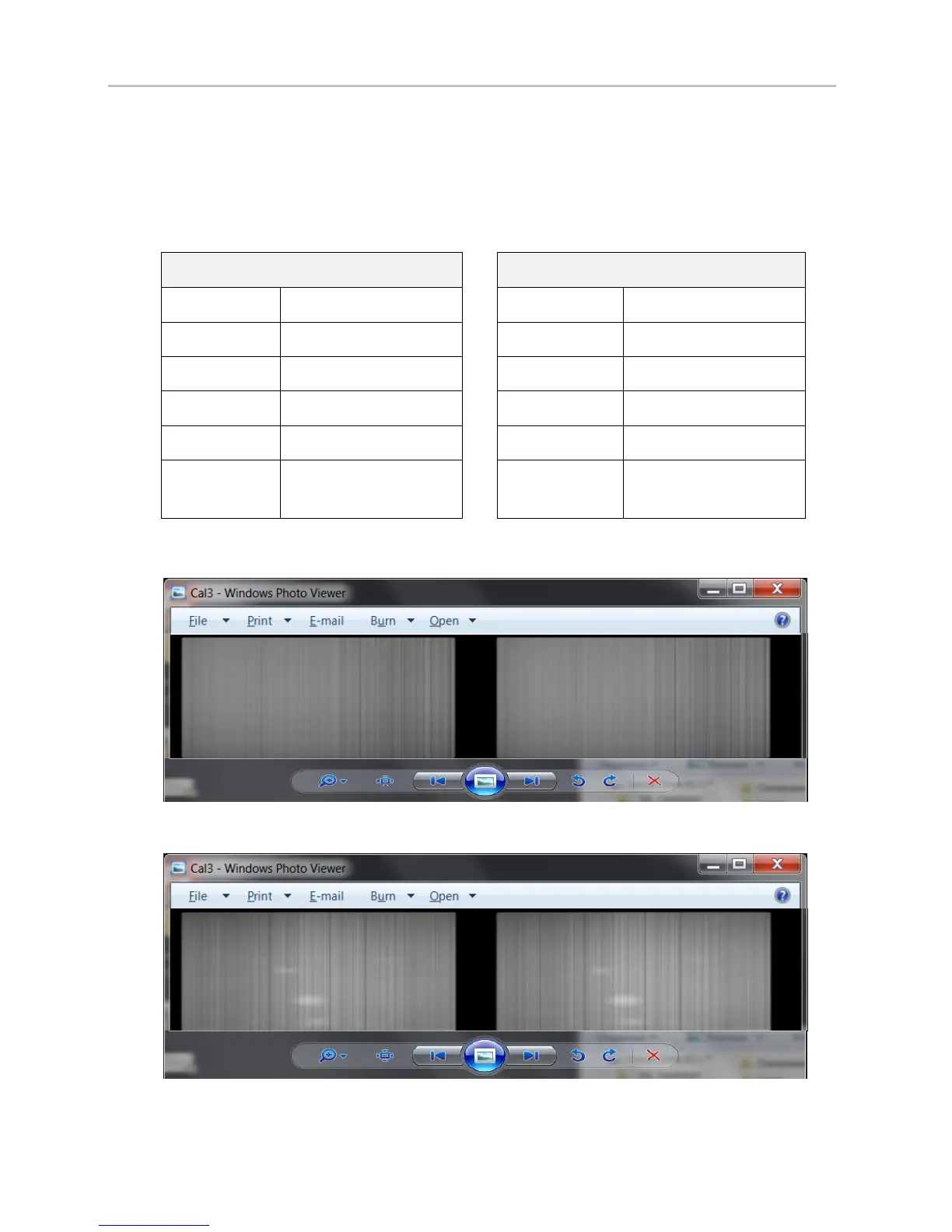

Good Calibration
Bad Calibration (Defective IP)
