3Disc FireCR+ - Diagnostics Window Explained

Service Manual FireCR
+
Computed Radiography Scanner
FireCR
+
| Reader Diagnostics 13

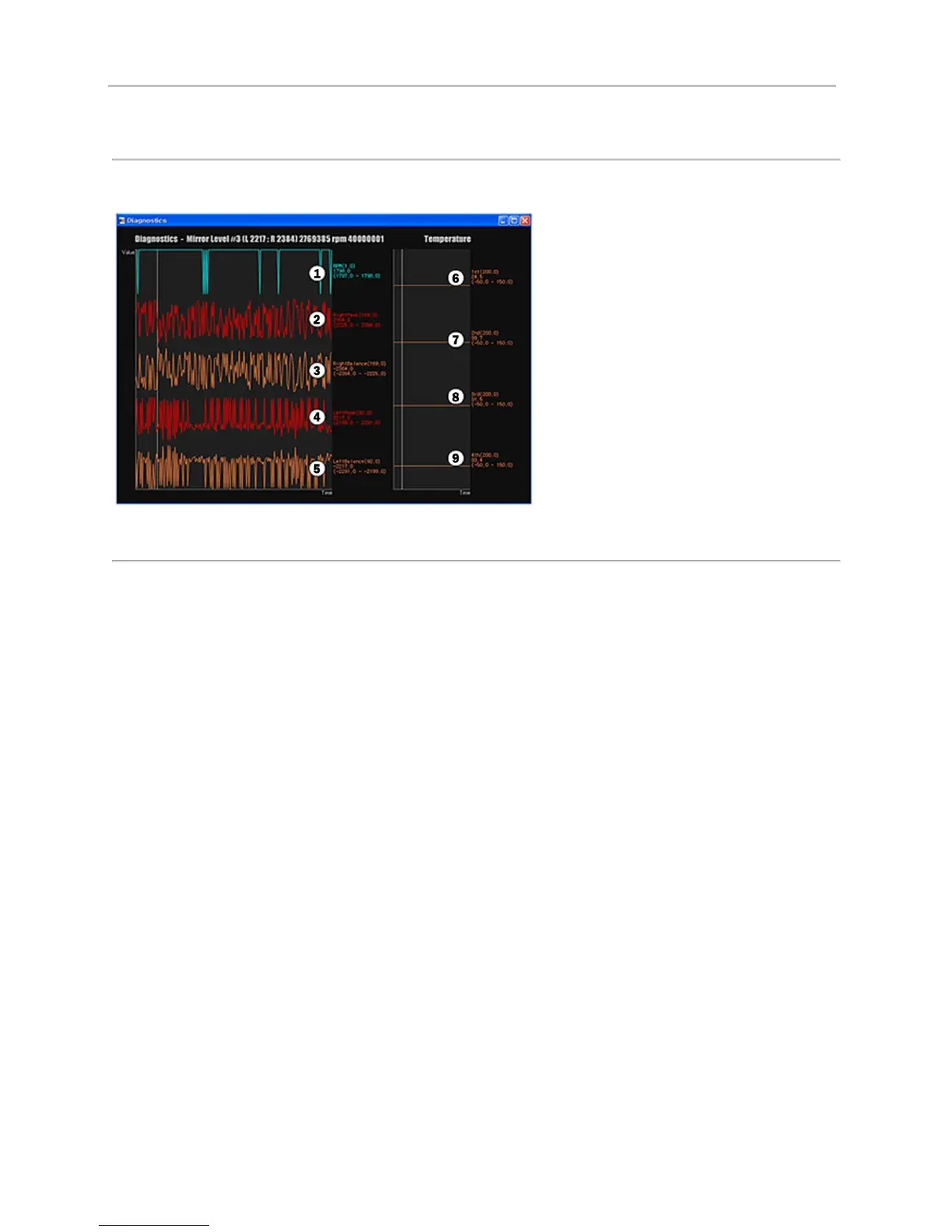

Diagnostics Window
Gauge 1: Rotating mirror RPM
(Has to be 1800RPM +/- 10)
Gauge 2: Right PSD peak
Gauge 3: Right PSD balance
Gauge 4: Left PSD peak
Gauge 5: Left PSD balance
Gauge 6: Internal frame temperature
Gauge 7: Mainboard temperature
Gauge 8: Eraser temperature
Gauge 9: Laser module temperature
