Service Manual FireCR
+
Computed Radiography Scanner
FireCR
+
| Parts Removal/Replacement 17

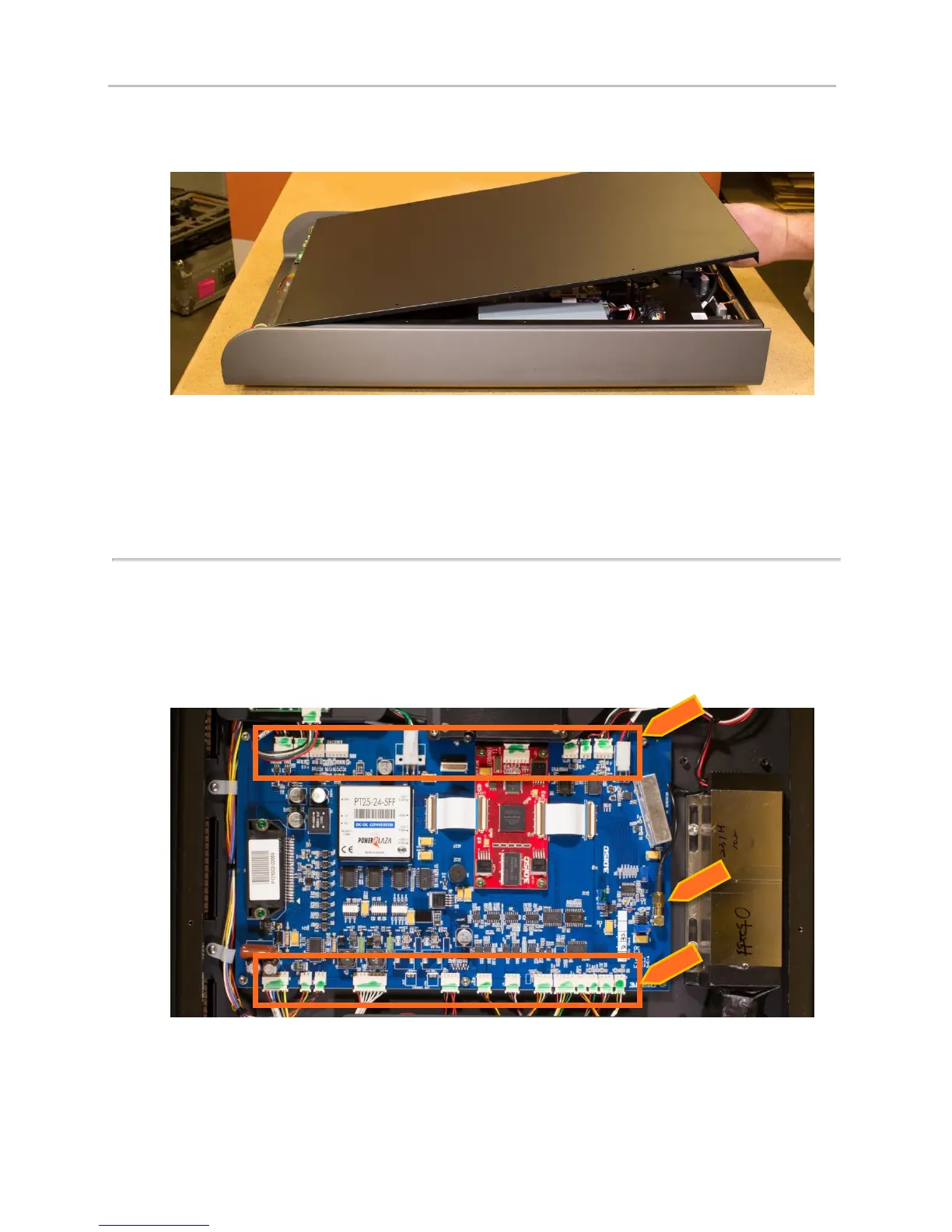

4. Lift off Internal Cover.
5. Refit in reverse order. Note: There are two grooves on each side of the Internal Cover front.
When refitting the Internal Cover, make sure that the cables on both sides go through the
upper grooves. Refit it from front to back and make sure that the end of the Internal Cover
goes over the entire internal frame and not into the space between the internal frame and the
back cover.
Main Board
1. Remove Top Cover. (Pg. 14)
2. Remove Internal Cover. (Pg. 16)
3. Disconnect all connections to the board.
To Next Page
