Service Manual FireCR
+
Computed Radiography Scanner
18 Parts Removal/Replacement | FireCR
+

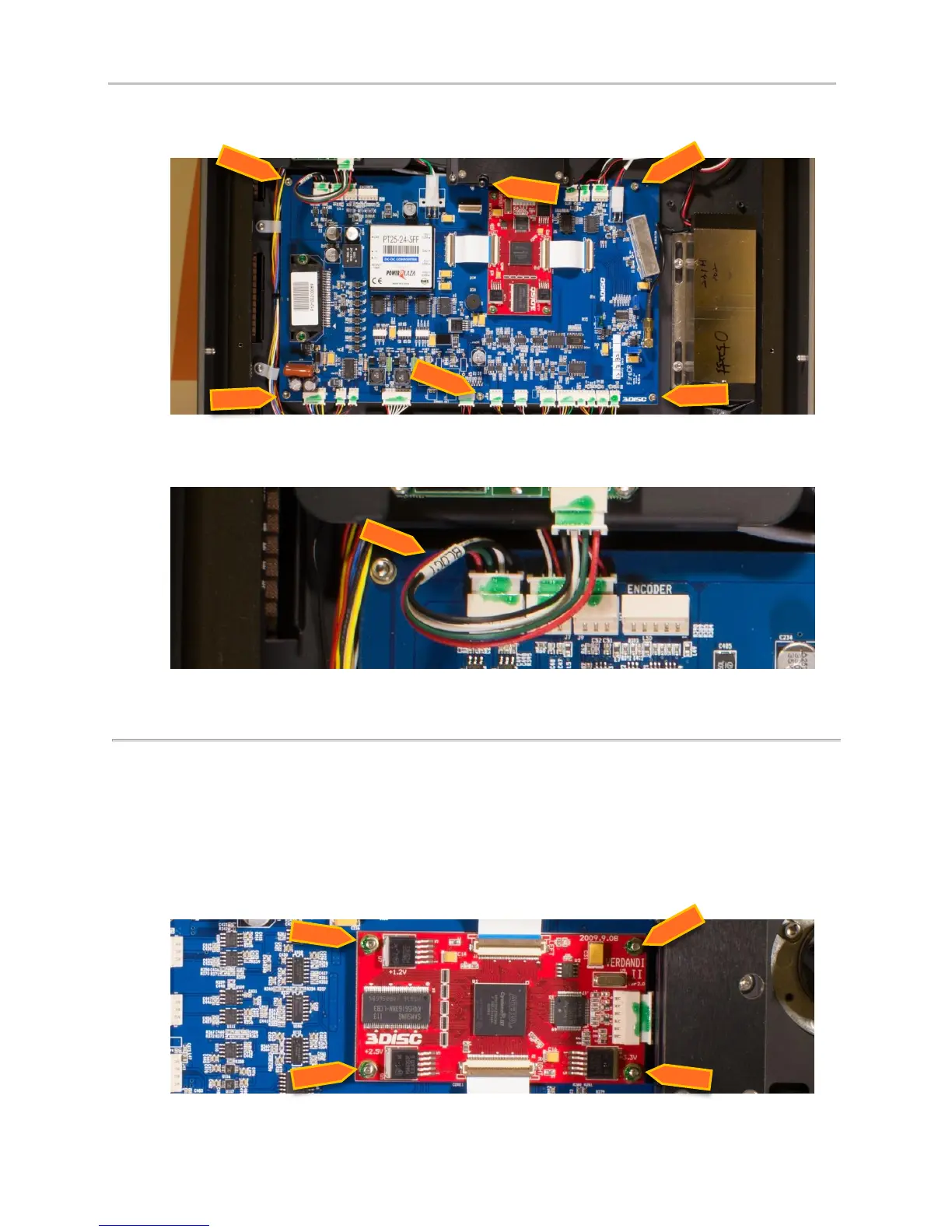

4. Unscrew the 6 screws that hold down the board and replace (2.5mm hex).
5. Make sure to connect the cables correctly when reassembling. The cables all have tags
corresponding to descriptions on the connectors.
6. Once you've finished the replacement of the main board, replace the internal and Top Cover.
Core Board
1. Remove Top Cover. (Pg. 14)
2. Remove Internal Cover. (Pg. 16)
3. Remove the Loctite on the nuts.
4. Unscrew the 4 nuts on the core board.
