3Disc FireCR+ - Replacing the Fiber Bundle

Service Manual FireCR
+
Computed Radiography Scanner
FireCR
+
| Parts Removal/Replacement 27
Fiber Bundle
1. Remove Top Cover. (Pg. 14)
2. Remove Internal Cover. (Pg. 16)

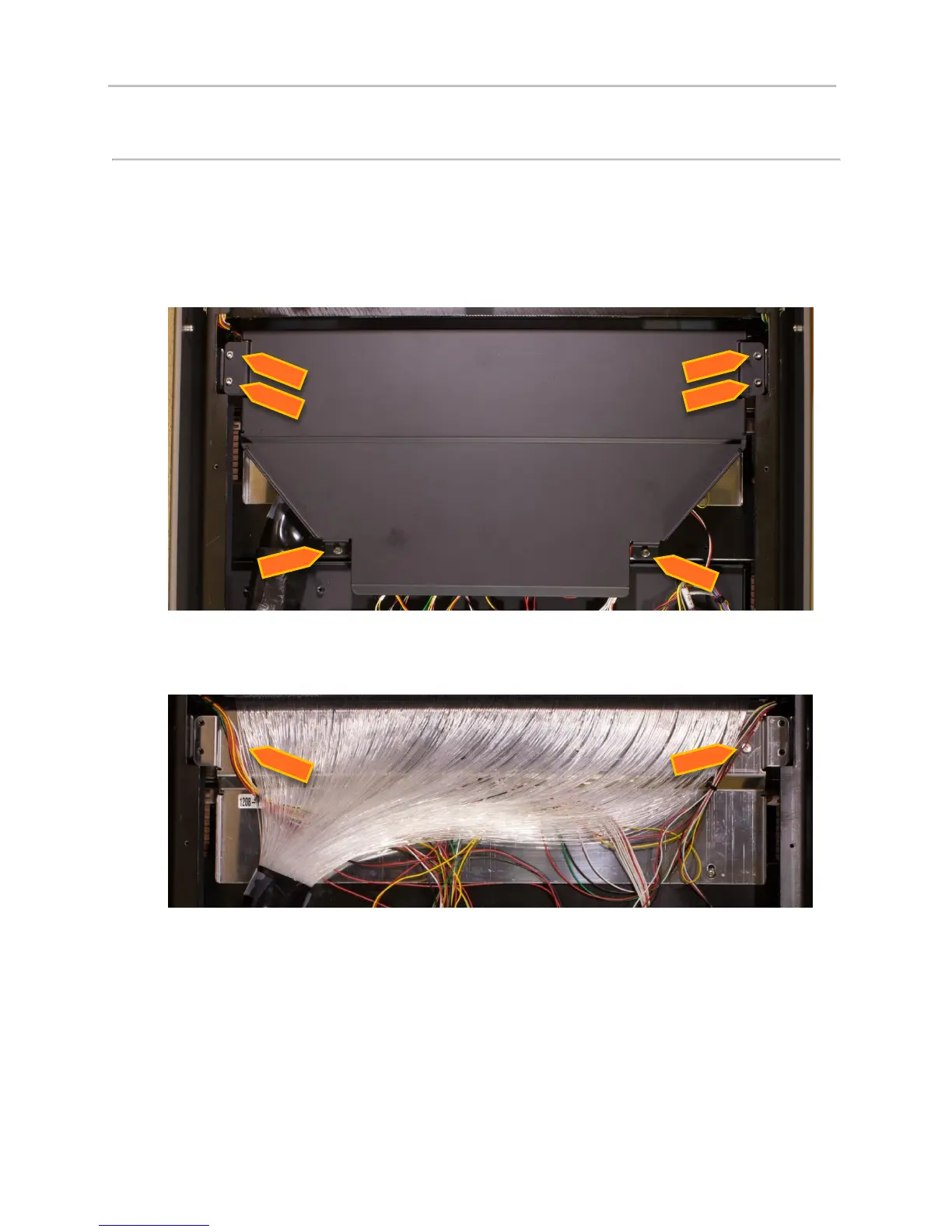

3. Remove the 6 screws from the fiber bundle cover (2.5mm hex).
4. Lift off cover.
5. Remove the two screws from the PMT housing (2.5mm Hex).
