Service Manual FireCR
+
Computed Radiography Scanner
24 Parts Removal/Replacement | FireCR
+

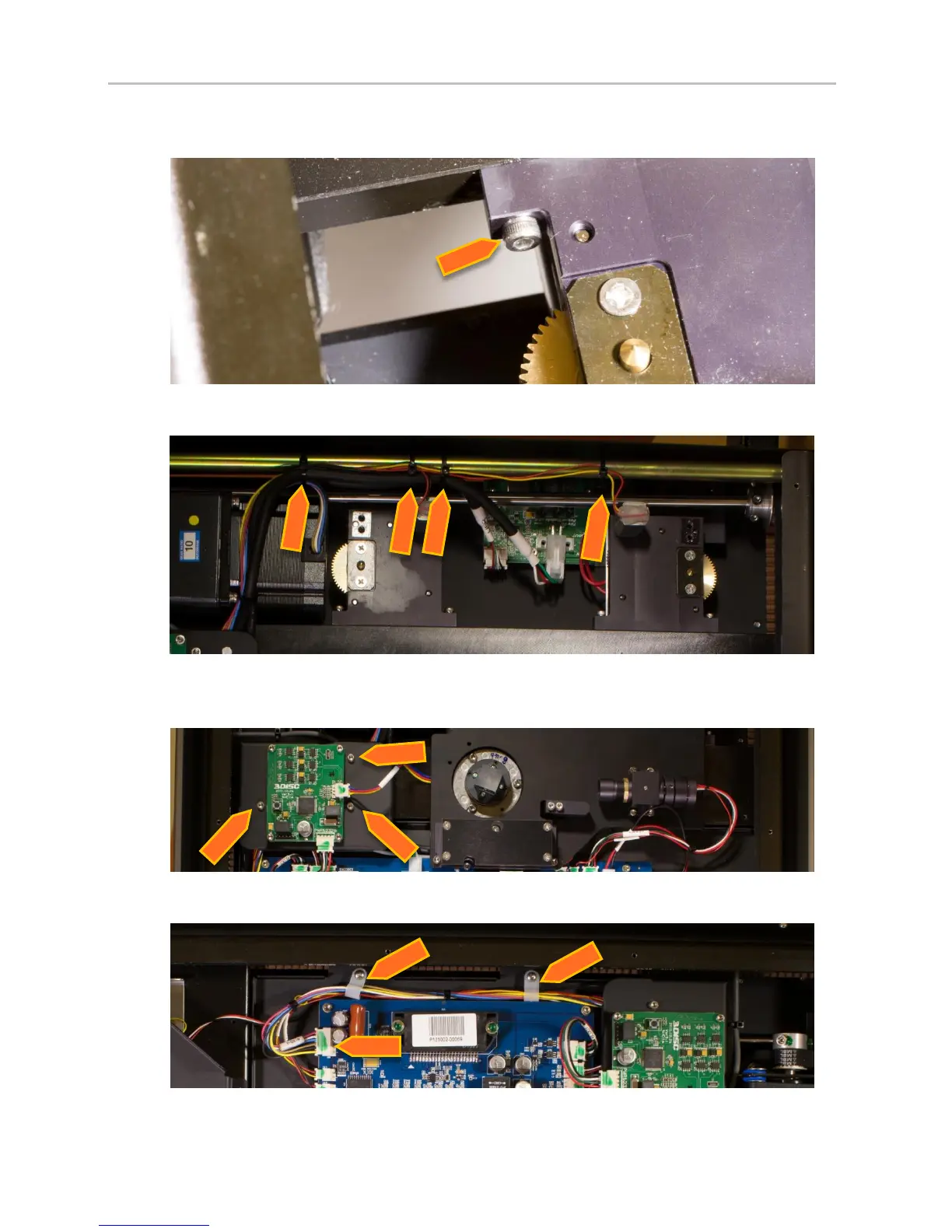

6. Remove 2 screws from aligner motor (2.5mm hex).
7. Cut cable ties holding wiring harness to cross bar.
8. Remove 3 BLDC bracket screws (2.5mm hex). Note: Wiring harness routes under BLDC bracket
and along the side of scanner.
9. Remove 2 cable clamps along the side of scanner (#2 Phillips).
